Summary of Contents for Vimar Elvox 40164
- Page 1 Installer manual 40164 Telephone interface for Due Fili Plus entryphones and video entryphones...
-
Page 2: Table Of Contents
Due Fili Plus telephone interface Index Description .................................1 Installation ................................2 Operating modes ...............................3 STANDARD mode ............................3 EXTENDED mode............................3 SWITCHBOARD mode ..........................4 User guide ................................5 Answering an incoming call from the video/entryphone system ..............5 Activating Controls ...........................5 Call transfer (only in Switchboard mode) ....................5 Extended PROGRAMMING ..........................6 Resetting the programming and the telephone numbers (888 90 400) ...........6 Resetting the programming except for telephone numbers (888 90 000) ..........6... -
Page 3: Description
Due Fili Plus telephone interface 1. Description The telephone interface 40164 allows you to forward Due Fili Plus video door entry calls to a remote telephone or to an internal telephone with the aid of a telephone switchboard. It is also designed for the self-starting of the main entrance panel, to open the lock on the entrance panel or to control relays. -
Page 4: Installation

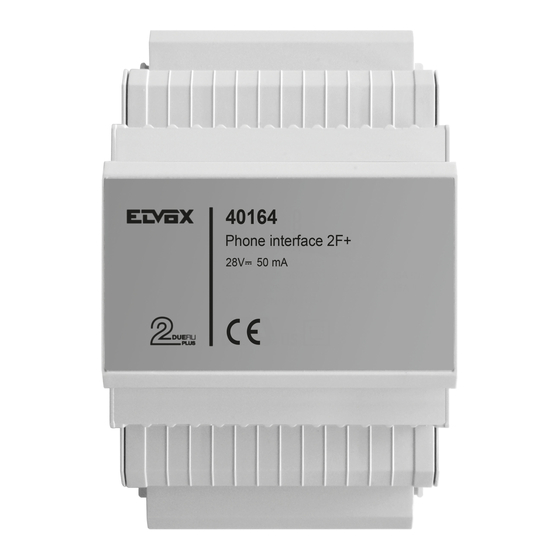

Due Fili Plus telephone interface Dip Switch - impedance selector OFF – OFF: no impedance ON – OFF: 100 Ohm impedance ON – ON: 50 Ohm impedance 40164 Phone interface 2F+ TX Volume 50 mA adjustment RX Volume adjustment LINE Blue LED Operating state Fig. -
Page 5: Operating Modes
Due Fili Plus telephone interface 3. Operating modes STANDARD mode STANDARD mode is the Default mode of the interface. In this mode, the interface works with the IDs of Indoor Stations from 1 to 4. If the IDs of the system are not from 1 to 4 please refer to paragraph 5.9 for programming the dedicated ID. Associating the first “main”... -
Page 6: Switchboard Mode
Due Fili Plus telephone interface SWITCHBOARD mode By combining the interface 40164 with a telephone switchboard 40510 entryphone calls can be managed directly from telephones. Programming the SWITCHBOARD mode and associating a telephone If the interface is connected directly to the telephone line, from an external telephone we call the telephone number of the line to which the interface is connected and wait for the three confirmation tones. -
Page 7: User Guide
Due Fili Plus telephone interface 4. User guide Answering an incoming call from the video/entryphone system When a call arrives, raise the handset or press the answer push button To activate voice communication press the * key Press the # key to open the door Continue the call or hang up Activating Controls During a call, type in the control code M followed by #... -
Page 8: Extended Programming
Due Fili Plus telephone interface 5. Extended PROGRAMMING Before programming, make sure the entryphone system is independently operational. For programming, the interface 40164 must be connected either to a BCA indoor station (FXS) of a telephone switchboard or to a telephone line (PSTN or Fibre Router). -
Page 9: Door Opening Control Management Method (888 99 1/0 6)
Due Fili Plus telephone interface • Type in 888 913 • Wait for the communication to be interrupted and hang up the phone. Door opening control management method (888 99 1/0 6) The interface can be set so that following a door opening control (key #) the entryphone and telephone communication is automatically interrupted. -
Page 10: Changing The Interface Address (888 74 C Ppp)
Due Fili Plus telephone interface • Call the internal tap-off or the telephone number where the interface is connected on a telephone, wait for the call tone and the subsequent brief tones (three repeated brief tones) • Type in code 888 •... -
Page 11: Auto-Acquisition Of The Master Address (888 72 C)
Due Fili Plus telephone interface 5.10 Auto-acquisition of the master address (888 72 C) For the STANDARD mode only, when you want to install the interface in an existing system whose ID addresses you do not know, this procedure can be used to acquire the address automatically. •... -
Page 12: Main Telephone Numbers "In Extended Mode" (888 28 C N)
Due Fili Plus telephone interface 5.11c Main telephone numbers "in Extended mode" (888 30 C N) A main telephone number can be associated with each call button C to call an internal tap-off of the telephone switchboard or a group of indoor stations or a fixed or mobile telephone line directly. Each telephone number can consist of a maximum of 16 digits and each digit can be between 0 and 9 or ‚*‘... -
Page 13: Control Groups (888 42 S M)
Due Fili Plus telephone interface • Wait for the three confirmation tones otherwise if you hear a brief tone and a long tone this means that programming has not been accepted. At the end of the operations, proceed directly to a new programming or hang up the telephone. PASSWORD TO ACCESS THE CONTROLS (888 84 C PPPP) In STANDARD mode, 4 different passwords can be associated for each call button, allowing only those who know them to use the M controls. -
Page 14: Events (888 81 E M T Ppp 1)
Due Fili Plus telephone interface Wait for the three confirmation tones otherwise if you hear a brief tone and a long tone this means that programming has not been accepted. At the end of the operations, proceed directly to a new programming or hang up the telephone. 5.14 Events (888 81 E M T PPP 1) The controls can be managed automatically if and when certain events occur, such as ‘door open/closed’, ‘state of an actuator’... -
Page 15: Telephone Line Tones (888 83 T F1 F2 D)
Due Fili Plus telephone interface 5.16 Telephone line tones (888 83 T F1 F2 D) The interface automatically recognises the interruption of a telephone communication or when the telephone number called is busy based on the tones present in the line and the configuration of the telephone line parameters is used to define the frequencies of the line tones envisaged in the various international standards and their minimum duration. - Page 16 Due Fili Plus telephone interface • Wait for the three confirmation tones otherwise if you hear a brief tone and a long tone this means that programming has not been accepted. At the end of the operations, proceed directly to a new programming or hang up the telephone. •...
-
Page 17: Technical Characteristics
Due Fili Plus telephone interface 6. Technical characteristics • TELEPHONE INPUT: Input voltage: 24-48 VDC Maximum absorbed current: • Standby: 38 mA • Calling: 50 mA Ring signal recognised: 35Veff 25Hz/50Hz Busy tone recognition: Frequency 425Hz +/- 5Hz; minimum tone duration 300ms •... -
Page 18: Installation Rules - Regulatory Compliance
Due Fili Plus telephone interface The instructions manual can be downloaded from the website www.vimar.com Installation rules Installation must be carried out by qualified persons in compliance with the current regulations regarding the installation of electrical equipment in the country where the products are installed. - Page 19 Due Fili Plus telephone interface...
- Page 20 Viale Vicenza 14 36063 Marostica VI - Italy www.vimar.com 49401684A0_MI_IT 02 2107...
