Summary of Contents for Polyprint PreTreater Pro

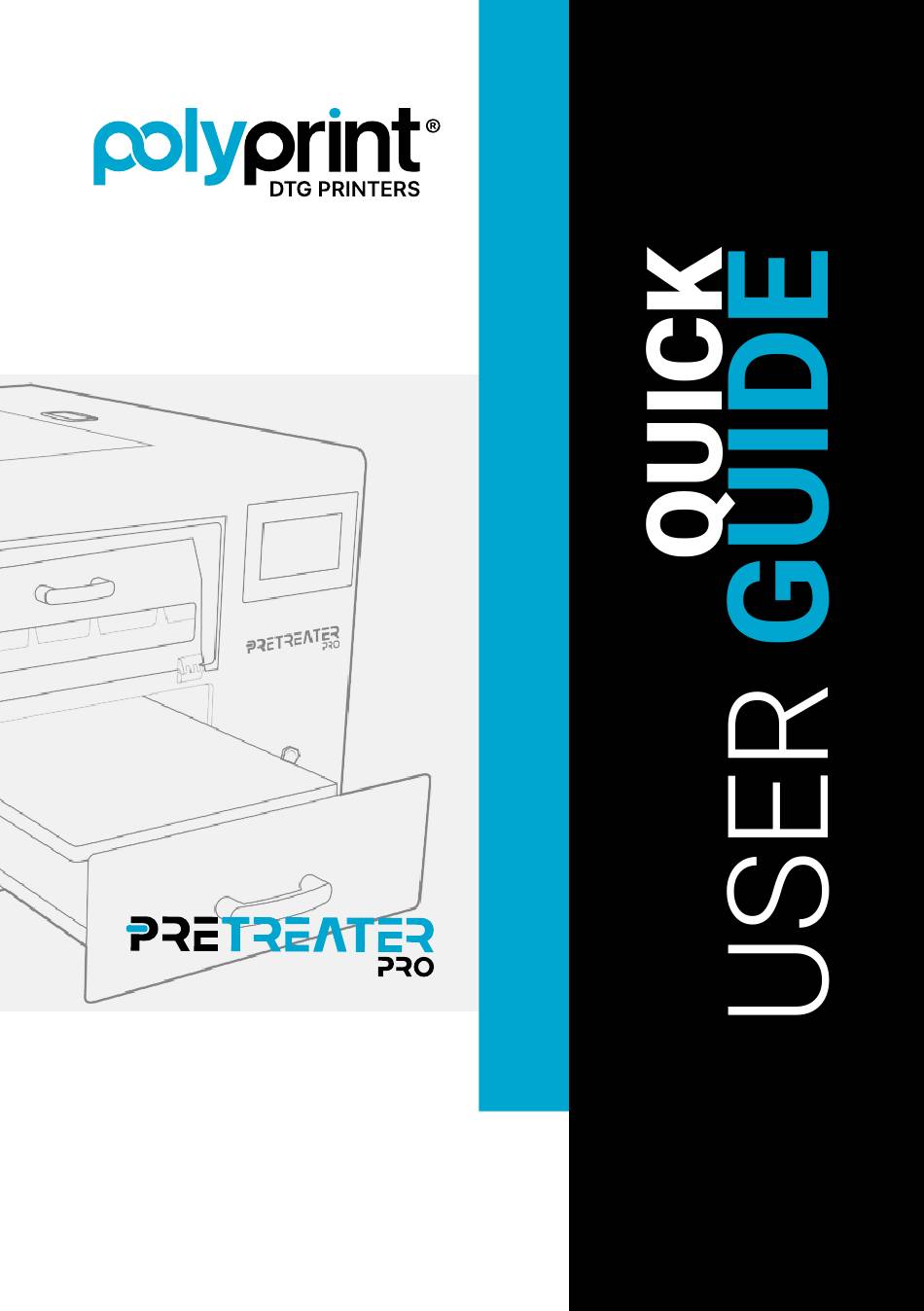

  • Page 1 WWW.POLYPRINTDTG.COM...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Basic PreTreater Pro functions p.01 Grid Edit p.02 Linear Edit p.04 Garment loading on drawer plate p.06 Start Single Step or Production mode spraying p.07 Single Step spraying p.07 Production Mode p.07 Liquid Installation p.08 Tank Filling Procedure p.10...
  • Page 3 Pretreatment Heat Press Settings p.16 Maintenance Schedule p.17 Daily Liquid Check p.17 Daily Wake Up Procedure p.18 Daily Shutdown Procedure p.19 Monthly Maintenance p.21 Two Month Maintenance p.21 Long Inactivity Maintenance p.23 Transporting PreTreater Pro p.23 Moving PreTreater Pro to another location p.24...

  • Page 4: Basic Pretreater Pro Functions

    PRETREATER PRO Basic PreTreater Pro functions Pretreating procedure with PreTreater Pro 1. Select your preferences for the spray area and the liquid amount per ml. 2. Load the garment on the drawer plate. 3. Start Single step or Production mode spraying procedure.

  • Page 5: Grid Edit

    QUICK USER GUIDE STEP 2 Edit the spray area. There are two spraying selection modes. You can use your preferred method, by switching between Grid Edit and Linear Edit. Fig.2: Spaying selection modes. Grid Edit: Tap on the Grid Edit button. STEP 1 Select the direction you want the garment to have, on the drawer plate.
  • Page 6 PRETREATER PRO STEP 2 The entire spray area (41x60cm / 16x23.6in) has been divided into 4 columns and 4 rows (4x4=16 boxes). Specifically, select the box- es in the Grid Box selection area that you want to enable. Fig.4: Grid box.

  • Page 7: Linear Edit

    QUICK USER GUIDE Linear Edit: Tap on the Linear Edit button. STEP 1 Select the direction you want the garment to have, on the drawer plate. You can rotate it 180 , by pressing the icon. Fig.6: Garment orientation. STEP 2 Select the nozzles you want to enable.
  • Page 8 PRETREATER PRO STEP 3 Select the Spray Length by changing the value with the +/ - but- tons. Select the distance from the top, by changing the Neck Offset val- ue with the +/ - buttons. Fig.8: Linear edit spraying area.

  • Page 9: Garment Loading On Drawer Plate

    QUICK USER GUIDE Garment loading on drawer plate STEP 1 Open the drawer and place the garment on the plate, in the direction of the preselected position, as in Step 1 on page 2 and 4. Fig.10: Loading garment. STEP 2 Place the garment on the platen.

  • Page 10: Start Single Step Or Production Mode Spraying

    Single Step Spraying: Blue To spray the garment, either press the button on the front side of the PreTreater Pro, or activate the Spray option on the Home screen. Fig.12: Single step spaying. Production Mode: Production Mode allows you to start the spraying procedure, as soon as, the drawer is closed, without pressing a button.

  • Page 11: Liquid Installation

    Tip: • For best image quality, drying the pretreated garment in a t-shirt press (using the Polyprint protection paper as a barrier from the press) is preferred. Dry the pretreated garment in a T-shirt press, at 160 C, for 30 •...
  • Page 12 PRETREATER PRO STEP 2 There are 4 empty tanks in the slots L1, L2, CL, and MT. You can fill the empty tanks or directly use a new pretreatment tank in its place. STEP 3 Tanks that you need to refill/replace in blue below.

  • Page 13: Tank Filling Procedure

    QUICK USER GUIDE STEP 4 Fill/Replace Tank L1 or/and L2 with the pretreatment liquid you • are going to use. • In case of the usage of 2 pretreatment liquids, fill/replace both Tanks L1 and L2 with the according pretreatment liquid. Fill the Tank CL with distilled water.
  • Page 14 PRETREATER PRO STEP 4 Shake the pretreatment bottles well, before filling the tanks. Fig.17: Shaking Pretreatment bottles. STEP 5 Fill the tank with the pretreatment liquid. Ensure that it’s with the same pretreatment liquid type. Fig.18: Filling the tank. STEP 6 Put the tubes inside the tank and close the cap.

  • Page 15: Tank Replacement

    QUICK USER GUIDE STEP 7 Put the tank back into the slot. STEP 8 Close the Tank Access Cover. Caution: Before closing the Tank Access Cover, ensure that all the tubes are inside the tanks and that the caps are in place and properly sealed. Tank Replacement STEP 1 Take the Tank out of the slot.
  • Page 16 PRETREATER PRO STEP 4 Shake the pretreatment bottles well, before replacing the tanks. Fig.21: Shaking Pretreatment bottles. STEP 5 Put the tubes inside the new tank and close the cap. Ensure they are in place and properly sealed. Fig.22: Sealing the tank.

  • Page 17: Tank Selection

    In this Tank Selection screen, you can check, which tank you have, currently, selected. If you wish to select a different tank to spray, tap on that tank you want, and press Confirm. PreTreater Pro will automatically switch to your preferred tank. Fig.25: Selecting the preferred tank.

  • Page 18: Pretreatment Benefits

    Choosing CL will clean, only the basic line to the nozzles, and will not bring the machine into a shipping state. For further instructions, check the topic: Transporting PreTreater Pro on page 23. Pretreatment Benefits Applying the right amount of pretreatment solution is necessary to obtain bright colors with wash endurance.

  • Page 19: Polycoating On Light-Colored Garments

    QUICK USER GUIDE Polycoating on light-colored garments As far as white and light-colored garments go, pretreatment ap- plication is not essential, as you can print directly on the garment and have a really good print quality. Nonetheless, by the use of a pre-coating solution, such as Polycoating, you can achieve excep- tionally vivid prints and at the same time, boost the wash resistance of your fabrics.

  • Page 20: Maintenance Schedule

    Daily Liquid Check • Empty the Maintanance Tank • Place the 4 nozzles on the Nozzle Carriage Daily Wake Up • Initiate PreTreater Pro • Liquid Charge • Flush the main tube with distilled water • Remove the 4 nozzles from the...

  • Page 21: Daily Wake Up Procedure

    QUICK USER GUIDE Daily Wake Up Procedure STEP 1 1. Open the Nozzle Access Cover. 2. Take the 4 nozzles out of the ultrasonic device and insert the nozzles inside the blue nozzle holder. 3. Position the black gasket inside the blue nozzle holder and push it in place to tighten.

  • Page 22: Daily Shutdown Procedure

    PRETREATER PRO STEP 3 To initiate the machine, tap the screen. Fig28: Touch screen. STEP 4 Select the tank you want to use follow the instuctions of Tank Se- lection on page 14. Daily Shutdown Procedure STEP 1 1. Tap on the Menu button.
  • Page 23 QUICK USER GUIDE STEP 2 To flush the main tube with distilled water, select YES on the screen that appears. Fig.30: Pressing YES to proceed with cleaning before shutdown. STEP 3 Remove the 4 nozzles from the Nozzle Carriage and disassemble them.

  • Page 24: Monthly Maintenance

    To do that, you have to bring the machine to service con- dition. For further instructions, check the topic: Service Condition in the Operational Manual that can be found in the USB Polyprint Key. When PreTreater Pro is in service condition, you can safely remove...
  • Page 25 QUICK USER GUIDE Clean the Waste Collector STEP 1 Power Off the machine, from the Main Power switch before clean- ing the Waste Collector. STEP 2 Open the Nozzle Carriage Cover and pull it outwards. STEP 3 Remove the screws holding the left metal cover and pull it out. STEP 4 Remove the top plastic cover of the Isolation Chamber.

  • Page 26: Long Inactivity Maintenance

    9. Tap on the back icon and select the Shutdown button. 10. Click Yes to flush with distilled water the main line and nozzles. 11. When finished, PreTreater Pro will Shutdown. Close the main switch at the back of the machine and remove the power cable.

  • Page 27: Moving Pretreater Pro To Another Location

    Before moving the machine to another location/position, ensure that the tank caps are in place and sealed, so liquid cannot spill out. Do not tilt PreTreater Pro while the liquid tanks are full or inside the machine and the waste collector is not properly cleaned.
  • Page 28 PRETREATER PRO POLYPRINT S. A. MONASTIRIOU 301, 54628, THESSALONIKI, GREECE TEL. +30 (2310) 545087, 949366, 246418 EMAIL: INFO@POLYPRINTDTG.COM WEBSITE: WWW.POLYPRINTDTG.COM TECHNICAL SUPPORT TEL. +30 (2310) 246418 EMAIL: SUPPORT@POLYPRINTDTG.COM...
