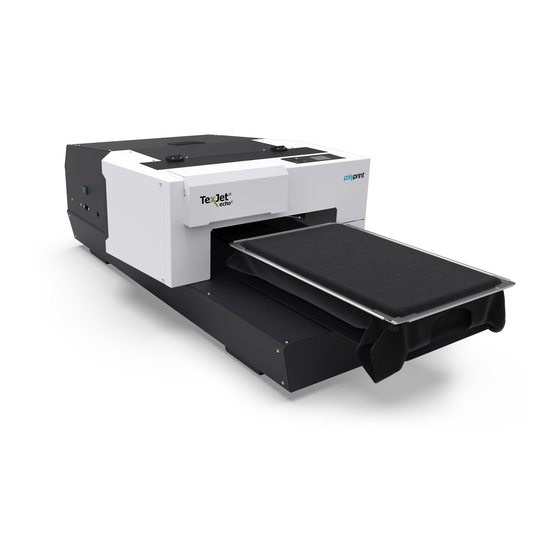

Summary of Contents for Polyprint TexJet echo2
-
Page 2: Table Of Contents
TABLE OF CONTENTS Platen Control Panel Buttons p. 01 Wake Up Procedure p. 02 Sealed Ink Cartridge p. 04 Refillable Ink Cartridge Filling Procedure p. 05 Platen Movement p. 06 Emergency Stop Button p. 06 Adjusting Platen Height p. 07 Maintenance Cover Open Message p. - Page 3 QUICK USER GUIDE Cartridge Chip Reset p. 09 Ink Curing & Pretreatment p.10 Heat Press Settings Maintenance Schedule p. 11 Daily and Weekend Maintenance p. 12 Monthly Maintenance p. 15 Six Month Maintenance p. 16 Long Inactivity Maintenance p. 17 Troubleshooting p.
-
Page 4: Platen Control Panel Buttons
TexJet® ECHO² Platen Control Panel Buttons Fig.1: TexJet echo² control panel. ® Enables the alternative Move Platen Out functions of the keyboard Maintenance Automatic Height Adjustment Move Platen In Menu Move Platen Up Eject Platen (available only at service mode) Two Print Mode Move Platen to Start Position (Home) -
Page 5: Wake Up Procedure
QUICK USER GUIDE Wake Up Procedure _STEP Power ON the TexJet® echo² printer. _STEP If you are opening the printer for the first time during the day, follow the instructions on the Platen Control panel, to shake the ink cartridges. Remove the cartridges. - Page 6 TexJet® ECHO² _STEP Press Home to continue. _STEP Skip the Notice display screens by pressing Proceed, Proceed and Yes. Fig.4: Notice display screens. _STEP Perform a Head Cleaning. Tap on the Settings Icon on the Printhead Control panel and navigate through Maintenance, Print Head Cleaning and choose Head Cleaning.
-
Page 7: Sealed Ink Cartridge
QUICK USER GUIDE Fig.5: Nozzle check correct sample . If there are no gaps, or few nozzles per channel missing, the printer is ready to print. Fig.6: Nozzle check failed sample. If there are gaps in the pattern, (more than 10 nozzles in one channel), perform a Head Cleaning. -
Page 8: Refillable Ink Cartridge Filling Procedure
TexJet® ECHO² Cartridges FULL EMPTY WHITE 228 gr 85 gr CYAN 218 gr 85 gr MAGENTA 218 gr 85 gr YELLOW 218 gr 85 gr Table 1: Sealed Cartridge weight. Refillable Ink Cartridge Filling procedure If refillable cartridges are used and ink level is low, refill them as described in the steps below: _STEP Shake the ink bottles for 1 minute... -
Page 9: Platen Movement
QUICK USER GUIDE NOTE: Ink level must not exceed the max indication found on the side of the cartridge. CAUTION: If the cartridges are used for the first time, remove the orange protective tap from each cartridge. _STEP Put the cartridge back to the correct slot and close the cartridge cover. Fig.10: Install Ink cartridge. -
Page 10: Adjusting Platen Height
TexJet® ECHO² Adjusting Platen Height To provide an optimum printing image quality when different garments are used, you need to adjust the platen height. First place the garment on the platen and flatten the surface, to remove any creases. Press Auto on Platen Control panel. NOTE: If limit switch red turns on, before adjusting the platen, press Down a few seconds until it turns off and press Auto again. -
Page 11: Maintenance Cartridge Reset
QUICK USER GUIDE Maintenance Cartridge Reset To check waste tank chip level, tap on the drop icon on the Printhead Control panel. Reset procedure: _STEP Press Start Position Button to send platen inside. Wait for the Ready To Print message is displayed at the Platen Control panel. _STEP Remove the maintenance cartridge, empty and reset it, using the chip resetter provided in the TexJet®... -
Page 12: Cartridge Chip Reset
TexJet® ECHO² CAUTION: Waste Tank Chip Level should always be more than 50%. If it gets below 20%, a message that the “Maintenance cartridge is at the end of its service life” will be displayed, and the Tank cannot be reset. Replace the tank. -
Page 13: Ink Curing & Pretreatment Heat Press Settings
QUICK USER GUIDE _STEP Check if the cartridge chip level is full. If not, go to Step 1. Fig.14: TexJet® echo² cartridge chip level Display. Ink Curing & Pretreatment Heat Press Settings DARK SHIRTS TEMPERATURE TIME DUPONT INKS 180/160º C 60’’/120’’... -
Page 14: Maintenance Schedule
TexJet® ECHO² PRETREATMENT TEMPERATURE TIME POLYCOATING DUPONT P5001 160º C 30’’ PRETREATMENT (320º F) DUPONT P5003 PRETREATMENT Table 4: Pretreatment curing times. Wear protective gloves/protective clothing/eye protection/ NOTE: face protection when using a manual hand sprayer (Wagner) to apply pretreatment. Maintenance Schedule •... -
Page 15: Daily And Weekend Maintenance
QUICK USER GUIDE Daily Maintenance Daily Maintenance should be performed at the end of the production day, after you have finished printing. Weekend Maintenance should be performed if you plan to leave printer idle for a few days, up to a full month. Maintenance procedure: _STEP Press Shift + Maintenance Button at Platen Control panel to enter... - Page 16 TexJet® ECHO² _STEP Clean the surroundings rubber of the capping station, using a cleaning swab and cleaning liquid. Fig.16: TexJet® echo² Capping station cleaning. CAUTION: It is highly recommended to use cleaning liquid from the same manufacturer as the inks installed on the Texjet® series printer. _STEP From the right side of the printer, turn the gear anticlockwise to release the wiper.
- Page 17 QUICK USER GUIDE CAUTION: Avoid touching the head mirror while performing the maintenance, as it might be scratched. This will result to the permanent loss of several nozzles. Fig.18: TexJet® Printhead cleaning. _STEP With the pipette provided with the TexJet Series Printer, fill the capping station with cleaning liquid.
-
Page 18: Monthly Maintenance
TexJet® ECHO² _STEP When it goes to READY screen, select at the Platen Control panel Maintenance mode. 13.a _STEP For Daily Maintenance select option 1 and press Start Position Button. Wait for TexJet printer to turn Off. ® 13.b _STEP For Weekend Maintenance select option 2 and press Start Position Button. -
Page 19: Six Month Maintenance
QUICK USER GUIDE _STEP Tap on Maintenance, Print Head Cleaning and Head Cleaning. _STEP Wait for top panel to turn off. 1. Scale CR Cleaning: Put some cleaner or isopropyl alcohol on a piece of paper and gently pass it over the transparent encoder strip, behind the Head carriage. -
Page 20: Long Inactivity Maintenance
TexJet® ECHO² Fig.21: Refillable Cartridges cleaning process. _STEP Remove the rubber valve with caution as there is a spring on the other side. Remove the small ball and spring. Fig.22: Refillable Cartridges cleaning process. _STEP Clean the above parts and reassemble the cartridges. It is highly recommended to change cartridges annually, as NOTE: ink has dried at their bottom and that can lead to Damper and Head... -
Page 21: Troubleshooting
QUICK USER GUIDE Troubleshooting ERROR CODES Action If error is displayed during maintenance 1601 / 122 procedure, make sure Print Head is locked. Restart Printer. Air Leak. Make sure all the cartridges are properly inside the ink system slots. 1404 In case of using sealed cartridges make sure Cartridges are not completely empty. - Page 22 Clean the Scale CR. Check monthly maintenance, page 16. _STEP If the white exceeds the color layer on Dark Garment printings, except from the above, recreate the mask using Digital factory Apparel Polyprint Edition, Fluid Mask feature or Polyprint Photoshop Actions provided by Polyprint.
- Page 23 Notes ................................................................................................................................................................................................................................................................................................................................................................................................................................................................................................
- Page 24 www.polyprintdtg.com POLYPRINTDTG...
