5. Switching between
computers
To distinguish between
channels, each one has a
different colored frame. To
switch between channels,
press the buttons on the front
of the switch (4- and 8-port
models) or use the taskbar.
You may also use Cursor
Navigation Switching (CNS) to
move the mouse between
channel windows while
pressing the left CTRL key.
CNS is enabled by default.
• In Full Screen mode, the
selected channel displays in
full screen. Type L CTRL | L
CTRL | f to enter this mode.
• In Tile Screen mode, all
channels display. Type L
CTRL | L CTRL | q to enter
this mode.
• In Scale Screen mode, the
selected channel displays
larger on screen with the
other channels under or to
the side of it. Type L CTRL |
L CTRL | s to enter this
mode.
6. Using dual displays
The MultiViewer switches
support a second display that
can be used to clone or extend
the primary display.
• In Single Screen mode, the
primary display is active and
the secondary display is
disabled. Type L CTRL | L
CTRL | F11 | s | 0 (zero) to
enter this mode.
• In Duplicate Screen mode,
the secondary display
duplicates the primary. Type
L CTRL | L CTRL | F11 | s | 1
to duplicate a display.
• In Extended Screen mode,
channels can be arranged
on either the primary or
secondary display. Type L
CTRL | L CTRL | F11 | s | 2
to enter this mode.

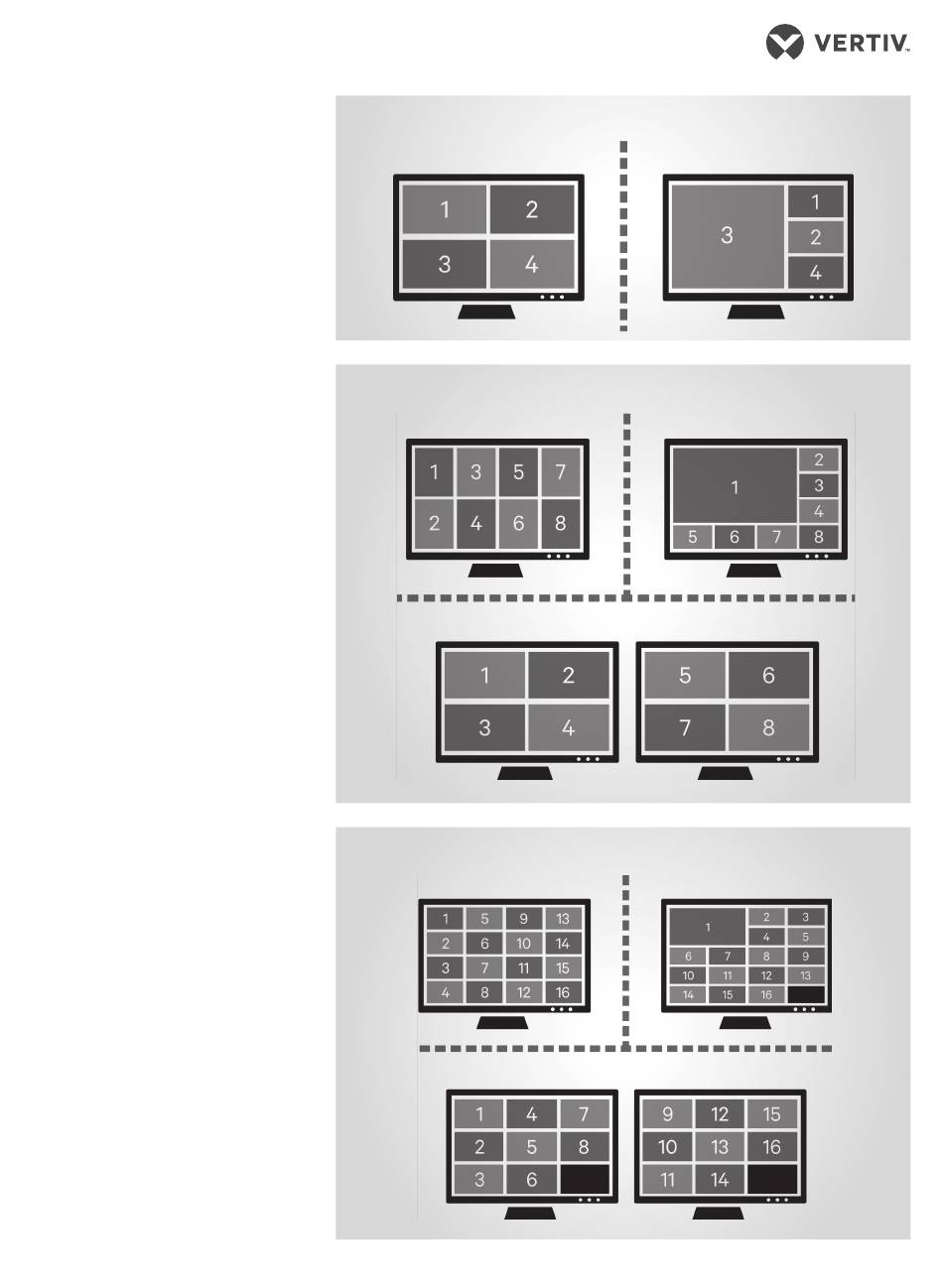

SCMV245DPH Switch Screen Layout
Tile
SCMV285DPH Switch Screen Layout
Tile
Dual Display Primary Tile
SCMV2160DPH Switch Screen Layout
Tile
Dual Display Primary Tile
Scale
Scale
Dual Display Secondary Tile
Scale
Dual Display Secondary Tile
