Installing the Device
2.5.2 Connecting Low DC Power
1.
16
Connect the power supply terminal block to the device.
European-style (Euroblock) Terminal Block
1
Positive (+) Terminal
2
Negative (-) Terminal
3
Ground Terminal
4

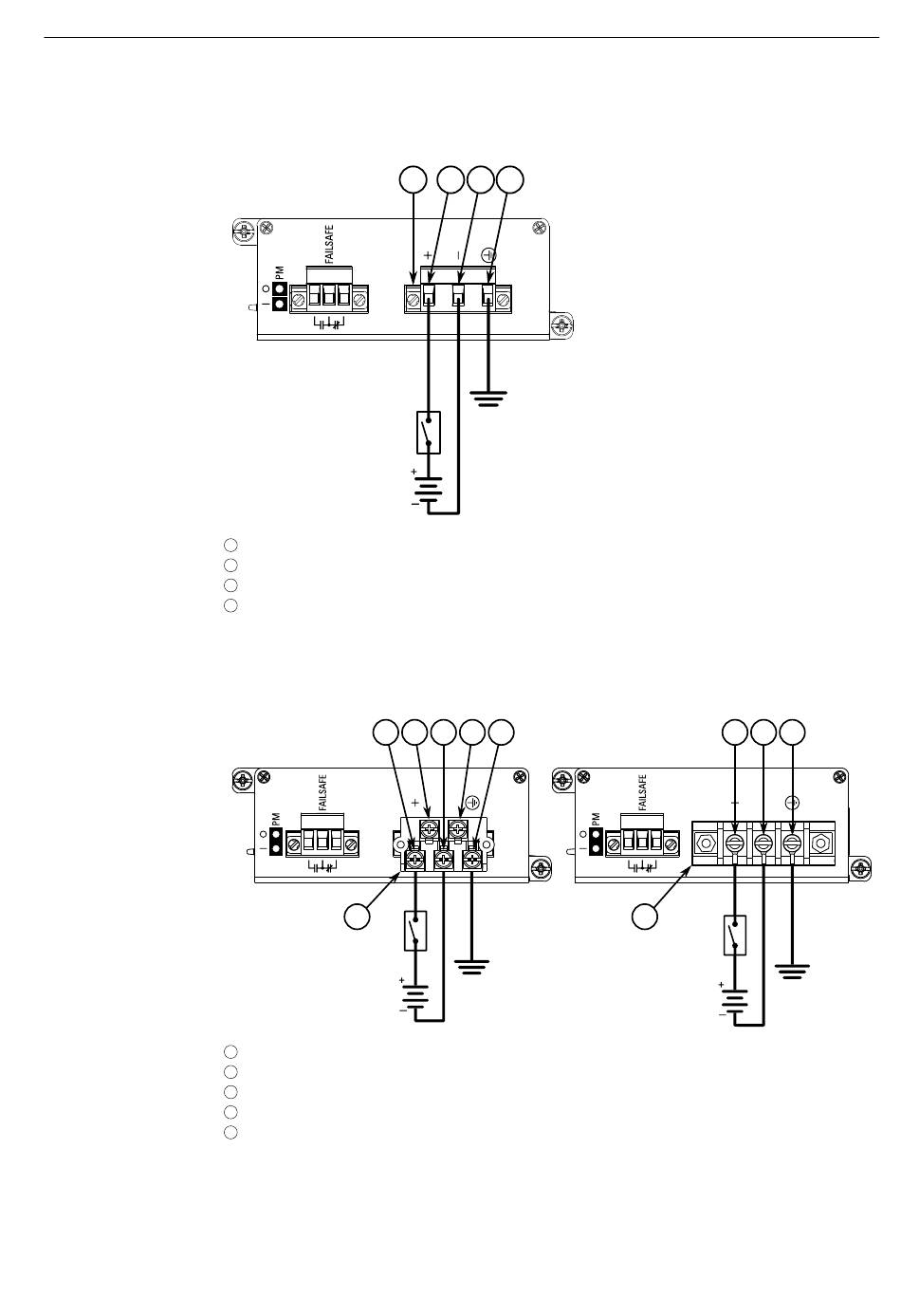

Figure 2.9
DC Terminal Block Wiring – European-style (Euroblock) Terminal Block for 12P,
24P and 48P Power Supplies
4
2
Not Connected
1
Removable Screw Terminal Block
2
Non-removable Screw Terminal Block
3
Positive (+) Terminal
4
Negative (-) Terminal
5
1
2
3
4
1
5
1
6
4
5
6
3
RUGGEDCOM RX1524
Installation Manual, 10/2021, C79000-G8976-1487-03
