Installing the Device
2.3.2 Mounting the Device on a DIN Rail
•
•
•
To secure the device to a standard 48 cm (19 in) rack, do the following:
1.
2.
3.
4.
2.3.2
Mounting the Device on a DIN Rail
For DIN rail installations, the RUGGEDCOM RX1524 can be equipped with panel/DIN
rail adapters pre-installed on each side of the chassis. The adapters allow the device
to be slid onto a standard 35 mm (1.4 in) DIN rail.
8
Do not exceed the maximum number of devices or weight restrictions specified
by the rack manufacturer.
Do not overload the supply circuit. Refer to the over-current protection and
power supply ratings specified by the rack manufacturer.
Make sure the rack and all devices have a proper ground-to-Earth connection.
Pay particular attention to power supply connections other than direct
connections to the branch circuit (e.g. power strips).
Make sure the rack mount adapters are installed on the correct side of the
chassis.
•
To make the modules and ports accessible, install the rack mount adapters
at the rear of the chassis
•
To make the management ports and LEDs accessible, install the rack mount
adapters at the front of the chassis
Note
The chassis features multiple mounting holes, allowing the rack mount adapters
to be installed up to 25 mm (1 in) from the face of the device.
1
3
Rear
1
Front
2
Rack Mount Adapter
3

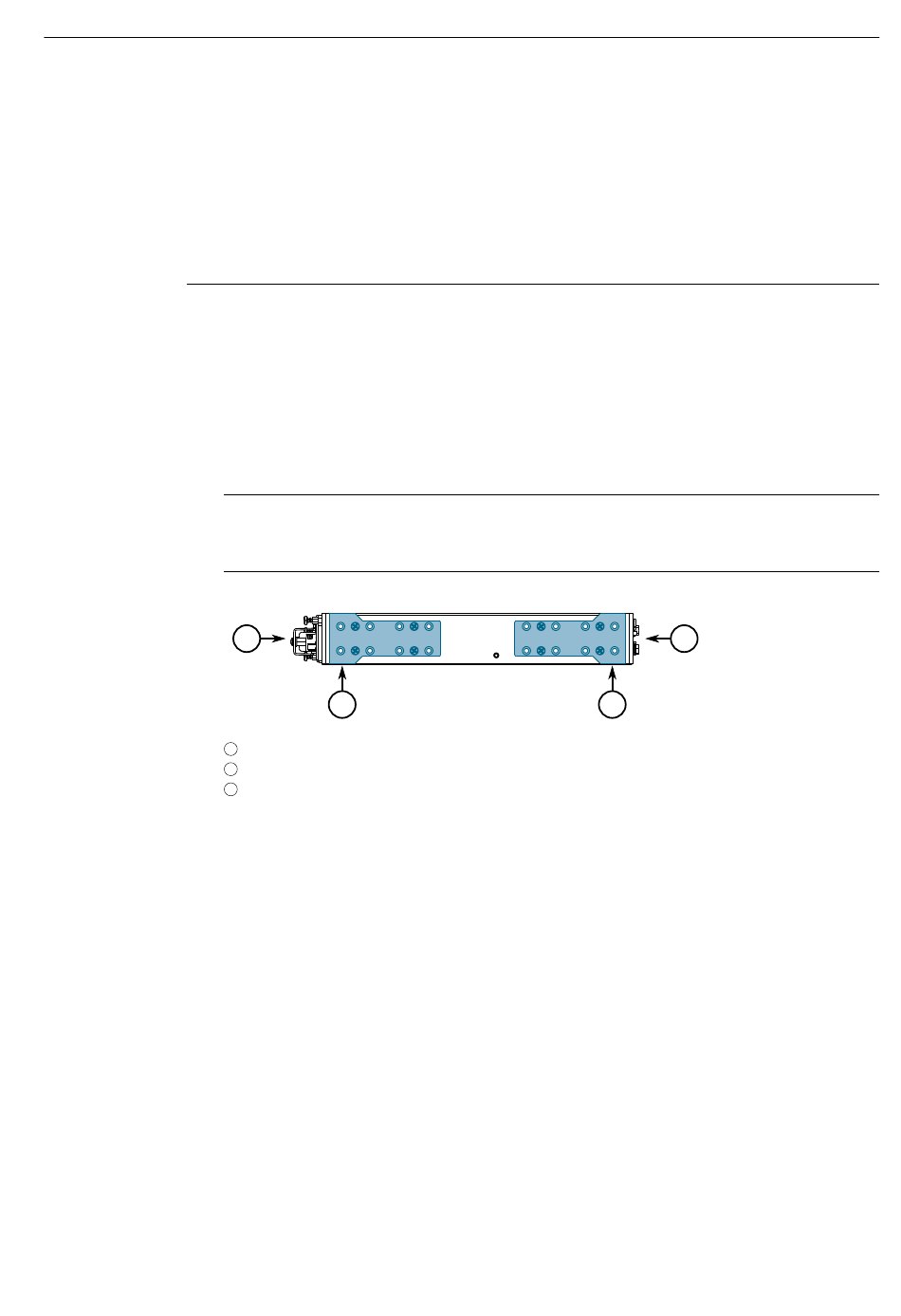

Figure 2.1
Rack Mount Adapters
If required, install adapters on the opposite side of the device to protect from
vibrations.
Insert the device into the rack.
Secure the adapters to the rack using the supplied hardware.
2
3
Installation Manual, 10/2021, C79000-G8976-1487-03
RUGGEDCOM RX1524
