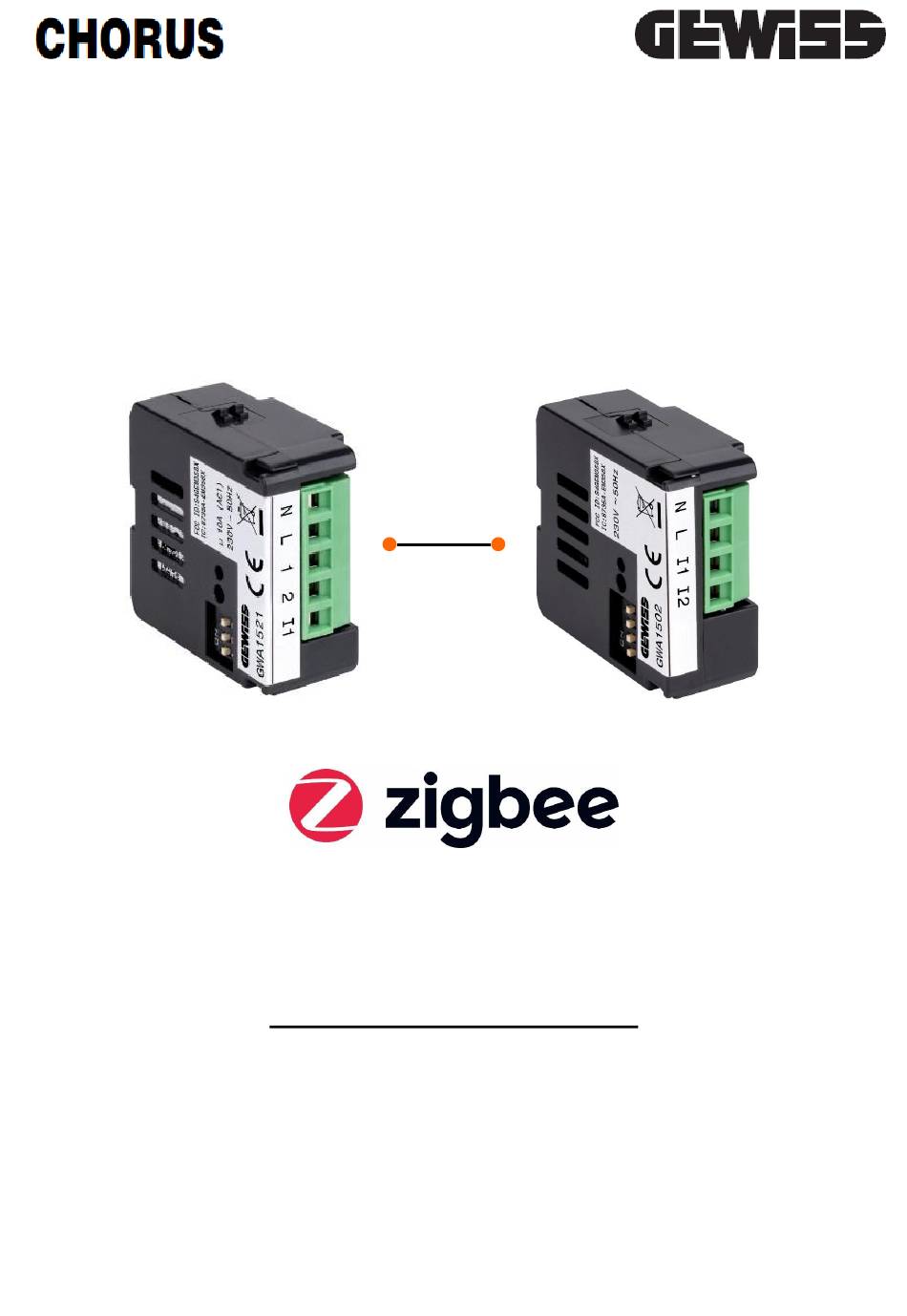

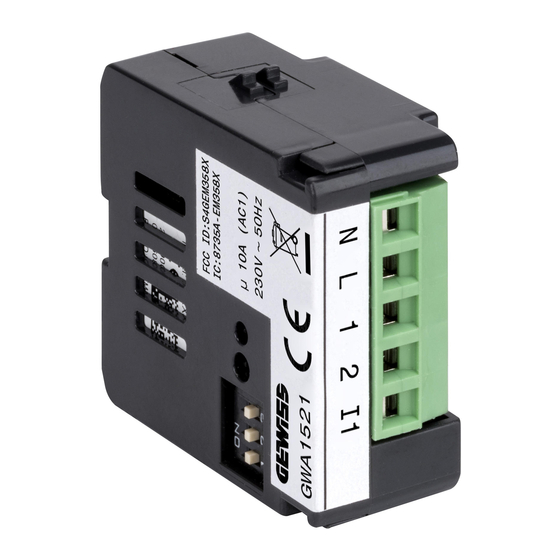

  • Page 1 MANUAL ZIGBEE CONFIGURATION BINDING BETWEEN THE GWA1521 ACTUATOR AND THE GWA1502 INTERFACE TECHNICAL MANUAL...
  • Page 2 page 2 | Z | TECHNICAL MANUAL: BINDING BETWEEN GWA1521 AND GWA1502...
  • Page 3: Table Of Contents

    CONTENTS CONTENTS ................................3 AIM OF THIS PUBLICATION ..........................4 ZIGBEE KEY – USEFUL TERMS .......................... 4 TECHNICAL FILES ..............................5 DIMENSIONS ................................6 BREAKDOWN OF THE ZIGBEE DEVICES ......................7 ELECTRIC DIAGRAMS ............................8 CONFIGURATION ..............................9 : ..................... 9 REATING AND JOINING TO THE EE NETWORK : ..........................
  • Page 4: Aim Of This Publication

    AIM OF THIS PUBLICATION This manual is designed for the installer responsible for configuring the ZigBee system. It explains how to make the binding between the GWA1521 and GWA1502 devices. ZIGBEE KEY – USEFUL TERMS Binding: The association between an actuator and a sensor in order to carry out a certain function Coordinator: The ZigBee device that carries out the following tasks:...
  • Page 5: Technical Files

    TECHNICAL FILES GWA1521 General loads actuator ATEGORY 230V AC / 50Hz UPPLY VOLTAGE 1 NO 10A (AC1) 230V AC UTPUT CONTACTS OF OUTPUT CHANNELS (W): DISPERSIBLE POWER 500W MOTOR POWER 3 dBm UTPUT POWER 150W LAMPS 450W OADS CONTROLLED BY TOROIDAL TRANSFORMERS OADS CONTROLLED BY ELECTRONIC 600W TRANSFORMERS...
  • Page 6: Dimensions

    DIMENSIONS GWA1521 GWA1502 page 6 | Z | TECHNICAL MANUAL: BINDING BETWEEN GWA1521 AND GWA1502...
  • Page 7: Breakdown Of The Zigbee Devices

    BREAKDOWN OF THE ZIGBEE DEVICES GWA1502 A1. DIP-switch with 4 one-way switches A2. Miniature button key for joining functions A3. Status LED GWA1521 A1. DIP-switch with 3 one-way switches A2. Miniature button key for joining functions A3. Status LED TECHNICAL MANUAL: BINDING BETWEEN GWA1521 AND GWA1502 | Z | page 7...
  • Page 8: Electric Diagrams

    ELECTRIC DIAGRAMS GWA1502 L. Power supply neutral N. Power supply phase I1. Channel 1 input I2. Channel 2 input GWA1521 N. Power supply neutral L. Power supply phase 1. Output common wire 2. NO output I1. Local command input page 8 | Z | TECHNICAL MANUAL: BINDING BETWEEN GWA1521 AND GWA1502...
  • Page 9: Configuration

    CONFIGURATION If the ZigBee network hasn't yet been created, proceed as follows: 1. Choose which device will have the role of coordinator 2. Activate the procedure to create the ZigBee network via the coordinator 3. After creating the network, activate Permit Join 4.
  • Page 10: Actuator Parameters (Gwa1521)

    ACTUATOR PARAMETERS (GWA1521) To manually select the local input functions, bring the dip-switch to position B1, B2 or B3 OCAL INPUT ESCRIPTION MAGE OPERATING MODE - when the contact closes, the monostable current relay status is inverted (push-button) - when the contact opens, no command is sent - the current relay status is bistable (one-...
  • Page 11: Interface Parameters (Gwa1502)

    INTERFACE PARAMETERS (GWA1502): OSITION HANNEL MODE HANNEL MODE Independent push-button Independent push-button Combined push-buttons Combined push-buttons One-way switch (toggle) One-way switch (toggle) One-way switch (on/off) One-way switch (on/off) Scene Scene Independent push-button One-way switch (toggle) Scene Independent push-button Timed push-button Independent push-button Depending on the operating mode selected and the actuators associated, the behaviour of each channel upon the closure/opening of the corresponding input is as follows:...
  • Page 12: Interface (Gwa1502) Factory Reset

    INTERFACE (GWA1502) FACTORY RESET Press and hold the Permit Join activation push-button (A2) for at least 10 seconds. The status LED will flash red and green alternately for 3 seconds, then become red fixed. ACTUATOR (GWA1521) FACTORY RESET Press and hold the Permit Join activation push-button (A2) for at least 10 seconds. The status LED will flash red and green alternately for 3 seconds, then become red fixed.
  • Page 13 TECHNICAL MANUAL: BINDING BETWEEN GWA1521 AND GWA1502 | Z | page 13...
