Q U I C K S T A R T
1
W A R N IN G
AUTOMATIC GATES CAN CAUSE SERIOUS
INJURY OR DEATH!
ALWAYS CHECK THAT THE GATE PATH IS
CLEAR BEFORE OPERATING!
REVERSING OR OTHER SAFETY DEVICES
SHOULD ALWAYS BE USED!
G U I D E

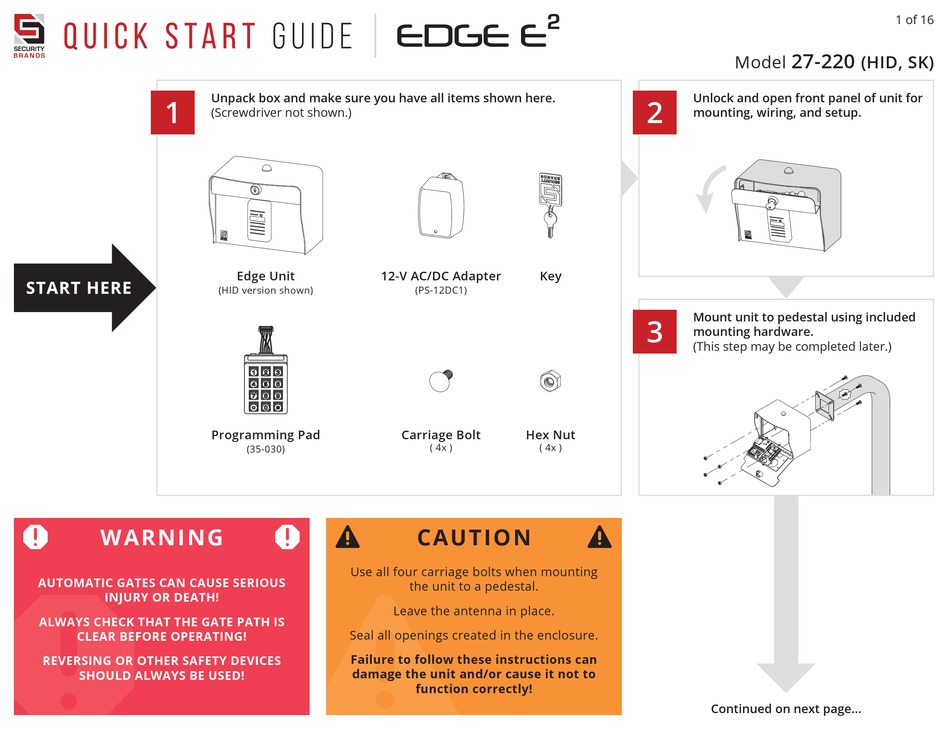

Unpack box and make sure you have all items shown here.
(Screwdriver not shown.)

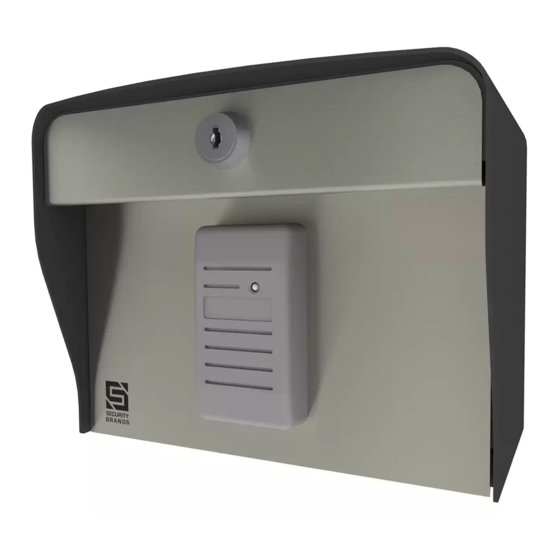

Edge Unit
12-V AC/DC Adapter
(HID version shown)
Programming Pad
(35-030)
Use all four carriage bolts when mounting
Seal all openings created in the enclosure.
Failure to follow these instructions can
damage the unit and/or cause it not to
Key
(PS-12DC1)
Carriage Bolt
Hex Nut
( 4x )
( 4x )
C A U T ION
the unit to a pedestal.
Leave the antenna in place.
function correctly!
Model
Unlock and open front panel of unit for
2
mounting, wiring, and setup.
Mount unit to pedestal using included
3
mounting hardware.
(This step may be completed later.)
Continued on next page...
1 of 16
27-220
(HID, SK)
