Q U I C K S T A R T
Carefully unpack box and make sure you have all items
1
shown here. (Screwdriver not shown)
Ascent Unit
12-V AC/DC Adapter
IMPO R TANT!
r
Ascent WILL NOT WORK until the
activation process is COMPLETE!
Follow the Activation Guide or call
Summit Control at (844) 259-8265 to
activate your unit.
WA R NING!
AUTOMATIC GATES CAN CAUSE
SERIOUS INJURY OR DEATH!
ALWAYS CHECK that the GATE PATH IS
CLEAR BEFORE OPERATING!
REVERSING or other SAFETY DEVICES
SHOULD ALWAYS BE USED!
G U I D E
Key
Carriage Bolt
(PS-12DC1)
( 4x )
ST OP !
This is a cellular accessory for a gate/door,
so an uninterrupted cellular connection
CANNOT BE GUARANTEED.
An emergency egress or primary entry
mechanism SHOULD ALWAYS BE USED
(transmitter, fire box, mechanical release).
Consult with your dealer, distributor, and/or
system designer for more information.
Unlock and open front panel
2
of unit for wiring and setup.
Continued on next page...

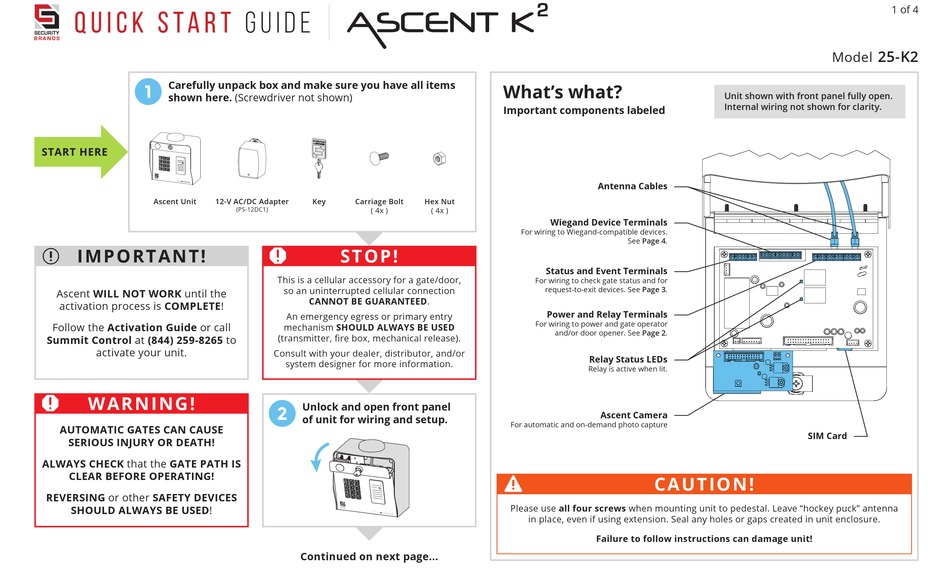

What's what?
Important components labeled
Antenna Cables
Hex Nut
( 4x )
Wiegand Device Terminals
For wiring to Wiegand-compatible devices.
Status and Event Terminals
For wiring to check gate status and for
request-to-exit devices. See Page 3.
Power and Relay Terminals
For wiring to power and gate operator
and/or door opener. See Page 2.
Relay Status LEDs
Relay is active when lit.
Ascent Camera
For automatic and on-demand photo capture
Please use all four screws when mounting unit to pedestal. Leave "hockey puck" antenna
in place, even if using extension. Seal any holes or gaps created in unit enclosure.
Failure to follow instructions can damage unit!
Unit shown with front panel fully open.
Internal wiring not shown for clarity.
See Page 4.
C AU T IO N!
1 of 4
25-K2
Model
SIM Card
