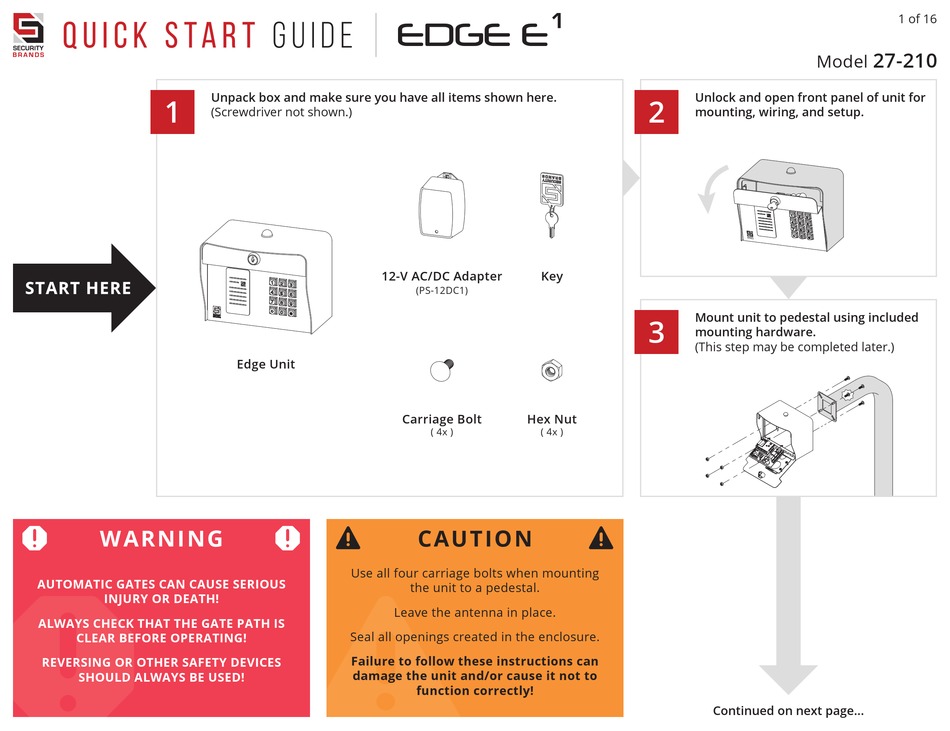

Q U I C K S T A R T
1
W A R N IN G
AUTOMATIC GATES CAN CAUSE SERIOUS
INJURY OR DEATH!
ALWAYS CHECK THAT THE GATE PATH IS
CLEAR BEFORE OPERATING!
REVERSING OR OTHER SAFETY DEVICES
SHOULD ALWAYS BE USED!
G U I D E
Unpack box and make sure you have all items shown here.
(Screwdriver not shown.)
12-V AC/DC Adapter

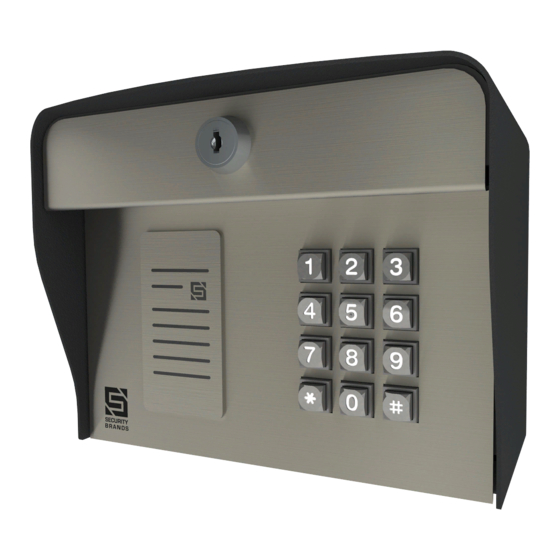

Edge Unit
Use all four carriage bolts when mounting
Seal all openings created in the enclosure.
Failure to follow these instructions can
damage the unit and/or cause it not to
Key
(PS-12DC1)
Carriage Bolt
Hex Nut
( 4x )
( 4x )
C A U T ION
the unit to a pedestal.
Leave the antenna in place.
function correctly!
Unlock and open front panel of unit for
2
mounting, wiring, and setup.
Mount unit to pedestal using included
3
mounting hardware.
(This step may be completed later.)
Continued on next page...
1 of 16
27-210
Model

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Edge E1 and is the answer not in the manual?

Questions and answers

Related Manuals for Security Brands Edge E1

Summary of Contents for Security Brands Edge E1

  • Page 1 1 of 16 Q U I C K S T A R T G U I D E 27-210 Model Unpack box and make sure you have all items shown here. Unlock and open front panel of unit for (Screwdriver not shown.) mounting, wiring, and setup.
  • Page 2 See Pages 3 and 5 Wiegand Terminals For wiring to Wiegand devices See Page 6 Relay Status LEDs Relay is active when lit Reset Button For performing unit reset © 2021 Security Brands, Inc. All rights reserved. QSG-27210-EN Rev. C (2/2021)

  • Page 3: Connect Wires

    3 of 16 Q U I C K S T A R T G U I D E 27-210 Model Connect wires. C A UT I O N   Additional wiring diagrams can be found on Pages 5 and 6. Feed wires through back of unit, If the included 12-V AC/DC adapter will not be used, please go to Page 4 and follow the...
  • Page 4 Edge unit to negative on your power source. Jump to Page 7 to continue programming and Reverse polarity can damage the unit! download the Edge Smart Keypad app. © 2021 Security Brands, Inc. All rights reserved. QSG-27210-EN Rev. C (2/2021)

  • Page 5: Event Inputs

    5 of 16 Q U I C K S T A R T G U I D E 27-210 Model Event Inputs Digital Inputs Wiring for accessories such as a request-to-exit device Wiring to various accessories Edge Power, Relay, Event Terminals Edge Digital Input Terminals 12–24 VAC/DC DIGITAL INPUTS...
  • Page 6 If mounting a Wiegand card reader to the Edge unit front panel, remove damage the unit! the existing cover plate and hex nuts to reveal the mounting holes and wiring passthrough hole. © 2021 Security Brands, Inc. All rights reserved. QSG-27210-EN Rev. C (2/2021)

  • Page 7: Need Help

    If you do not see any Edge units listed, make sure your Edge unit is powered on and is in Bluetooth range. Find the Edge Smart Keypad app by Security Brands, Inc. and download it. Step 5 - Complete the procedure shown on your mobile device. These steps will be completed using the PIN pad on your Edge unit.

  • Page 8: Direct Programming

    The pound key is good for one thing and one 4 - 5 Change Code Length (Non-Wiegand) Add Limited-Use Code thing only: exiting programming mode. 4 - 6 Change Relay Trigger Time Delete All Codes and Timers © 2021 Security Brands, Inc. All rights reserved. QSG-27210-EN Rev. C (2/2021)
  • Page 9 9 of 16 Q U I C K S T A R T G U I D E 27-210 Model Direct Programming Green arrow indicates “good” tone on unit. / Unit Configuration Always wait for good tone before moving on. Change Code Length IMPORTANT! THIS WILL DELETE ALL NON-WIEGAND ACCESS AND LATCH CODES! ...
  • Page 10 Event Mode Relay Mode A Mode B (1251 is default) (Unit beeps mode (1, 3, 4) (1 for A; 2 for B) number or good tone when disabled) © 2021 Security Brands, Inc. All rights reserved. QSG-27210-EN Rev. C (2/2021)
  • Page 11 11 of 16 Q U I C K S T A R T G U I D E 27-210 Model Direct Programming Green arrow indicates “good” tone on unit. / Unit Configuration Always wait for good tone before moving on. Configure Event Input 1 (continued) (Allows an external device to affect keypad operation or trigger a relay.
  • Page 12 (To add multiple codes, enter each of them before pressing pound key) Master Code Sub Mode Access Code(s) to Be Added (1251 is default) (4 digits by default; numbers only) © 2021 Security Brands, Inc. All rights reserved. QSG-27210-EN Rev. C (2/2021)
  • Page 13 13 of 16 Q U I C K S T A R T G U I D E 27-210 Model Direct Programming Green arrow indicates “good” tone on unit. / Onboard Keypad Always wait for good tone before moving on. By default, these codes are unavailable for use: 1251, 1273, 1366, 1381, 1387, 1678, 1752, 1985.
  • Page 14 Master Code Wiegand Input Code(s) to Be Added Mode A Mode B Mode C (1251 is default) (1 for 1; 2 for 2) (5 digits by default; numbers only) © 2021 Security Brands, Inc. All rights reserved. QSG-27210-EN Rev. C (2/2021)
  • Page 15 15 of 16 Q U I C K S T A R T G U I D E 27-210 Model Direct Programming Green arrow indicates “good” tone on unit. / External Wiegand Keypad Always wait for good tone before moving on. Add Wiegand Keypad Latch Code(s) (Uses default facility code;...
  • Page 16 Q U I C K S T A R T G U I D E 27-210 Model Notes Edge E1 27-210 Call (972) 474-6390 Email techsupport@securitybrandsinc.com We are available Mon–Fri / 8am–5pm Central © 2021 Security Brands, Inc. All rights reserved. QSG-27210-EN Rev. C (2/2021)
