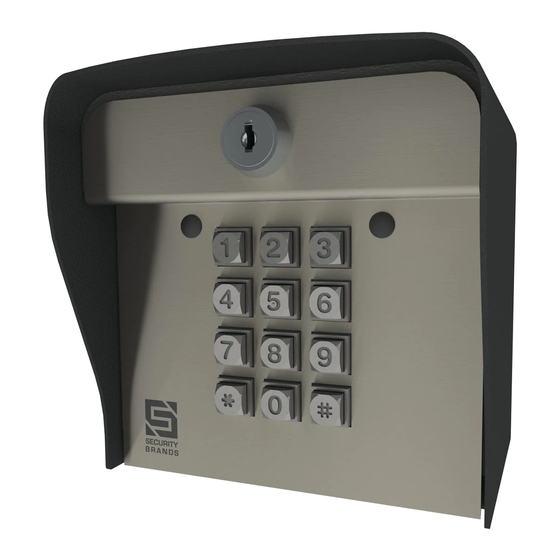

Security Brands ADVANTAGE DKLP 19-100 Quick Start Manual

Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
Q U I C K S T A R T
Carefully unpack box.
1
START HERE
What's what?
Important components labeled
Power and Relay Terminals
For wiring to gate operator or
door opener and power
POWER MUST BE 7–14 VDC!
Reset Button
For performing reset procedures
Keypad Unit Front Panel
ADVANTAGE DKLP
G U I D E
Make sure you have everything shown here.
2
Keypad Unit
Key
Carriage Bolt
Hex Nut
( 4x )
( 4x )
Unit shown with front panel fully open.
CA U TIO N !
Double check your wires! You must wire from
positive on keypad unit to positive on your
power source and negative on keypad unit to
negative on your power source.
Reverse polarity can damage keypad unit!
19-100
Model
Unlock and open front panel
3
of keypad unit; then using
carriage bolts and hex nuts,
attach unit to pedestal as shown.
Continued on next page...
W AR N ING!
AUTOMATIC GATES CAN CAUSE
SERIOUS INJURY OR DEATH!
ALWAYS CHECK that the GATE PATH IS
CLEAR BEFORE OPERATING!
REVERSING or other SAFETY DEVICES
SHOULD ALWAYS BE USED!
1 of 4

Advertisement

loading
Need help?

Need help?

Do you have a question about the ADVANTAGE DKLP 19-100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Security Brands ADVANTAGE DKLP 19-100

Summary of Contents for Security Brands ADVANTAGE DKLP 19-100

  • Page 1 ADVANTAGE DKLP 1 of 4 Q U I C K S T A R T G U I D E 19-100 Model Carefully unpack box. Make sure you have everything shown here. Unlock and open front panel of keypad unit; then using carriage bolts and hex nuts, attach unit to pedestal as shown.
  • Page 2 7–14 VDC ONLY part of the unit’s POWER RELAY wire harness and must be supplied. + – Advantage DKLP Power Source Mag Lock (7–14 VDC ONLY) (57-1200MAG is shown) © 2021 Security Brands, Inc. All rights reserved. QSG-19100-EN Rev. F (9/2021)
  • Page 3 ADVANTAGE DKLP 3 of 4 Q U I C K S T A R T G U I D E 19-100 Model Add Access Code(s). Make sure gate path is clear; then enter access code on keypad and (To add multiple codes, enter each of them before pressing pound key) confirm gate opens.
  • Page 4 NOTE: Green arrow indicates “good” tone on keypad. Always wait for good tone before moving on. NEED HELP Call (972) 474-6390 Email techsupport@securitybrandsinc.com We are available Mon–Fri / 8am–5pm Central © 2021 Security Brands, Inc. All rights reserved. QSG-19100-EN Rev. F (9/2021)
