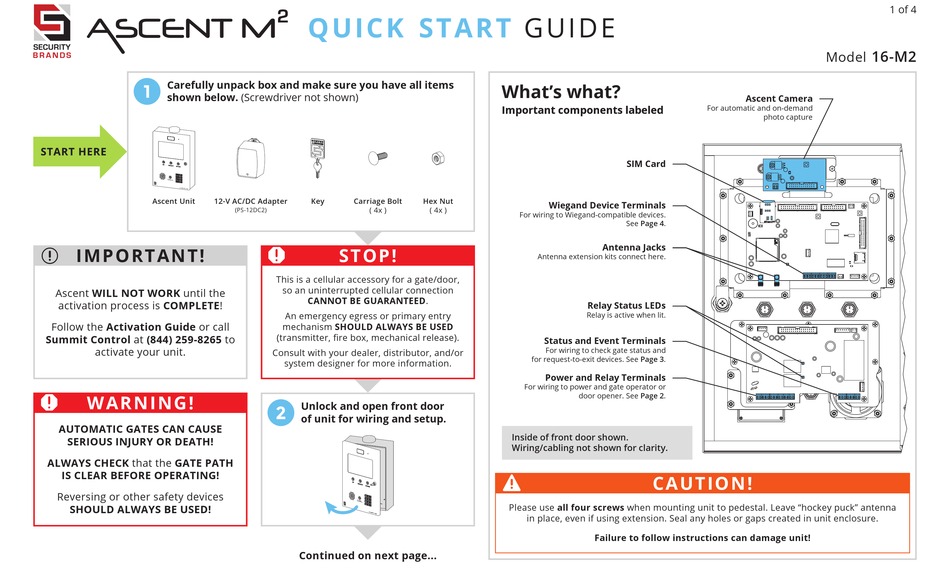

Security Brands Ascent M2 Series Quick Start Manual

Carefully unpack box and make sure you have all items
1
shown below. (Screwdriver not shown)

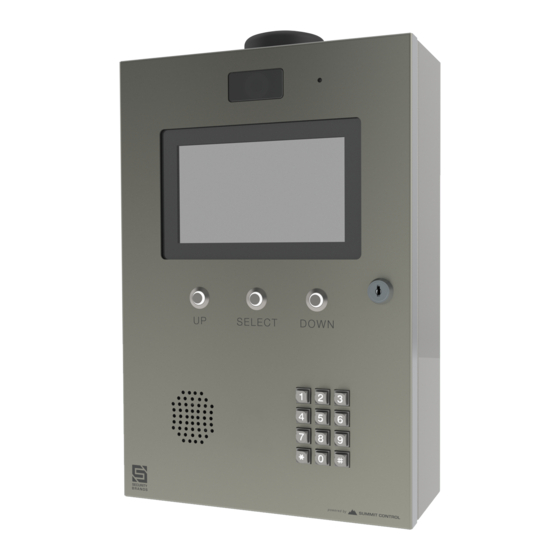

Ascent Unit 12-V AC/DC Adapter
IMPO R TANT!
r
Ascent WILL NOT WORK until the
activation process is COMPLETE!
Follow the Activation Guide or call
Summit Control at (844) 259-8265 to
activate your unit.
WA R NING!

AUTOMATIC GATES CAN CAUSE
SERIOUS INJURY OR DEATH!
ALWAYS CHECK that the GATE PATH
IS CLEAR BEFORE OPERATING!
Reversing or other safety devices
SHOULD ALWAYS BE USED!
Q U IC K S TA R T
Key Carriage Bolt
( 4x )
(PS-12DC2)
ST OP !

This is a cellular accessory for a gate/door,
so an uninterrupted cellular connection
CANNOT BE GUARANTEED.
An emergency egress or primary entry
mechanism SHOULD ALWAYS BE USED
(transmitter, fire box, mechanical release).
Consult with your dealer, distributor, and/or
system designer for more information.
Unlock and open front door
2
of unit for wiring and setup.
Continued on next page...
GUI DE
What's what?
Important components labeled Important components labeled
Hex Nut
Wiegand Device Terminals
( 4x )
For wiring to Wiegand-compatible devices.
Antenna extension kits connect here.
Relay Status LEDs
Relay is active when lit.
Status and Event Terminals
For wiring to check gate status and
for request-to-exit devices. See Page 3.
Power and Relay Terminals
For wiring to power and gate operator or
door opener. See Page 2.
Inside of front door shown.
Wiring/cabling not shown for clarity.

Please use all four screws when mounting unit to pedestal. Leave "hockey puck" antenna
in place, even if using extension. Seal any holes or gaps created in unit enclosure.
Failure to follow instructions can damage unit!
Ascent Camera
For automatic and on-demand
photo capture
SIM Card
See Page 4.
Antenna Jacks
C AU T IO N!
1 of 4
16-M2
Model
