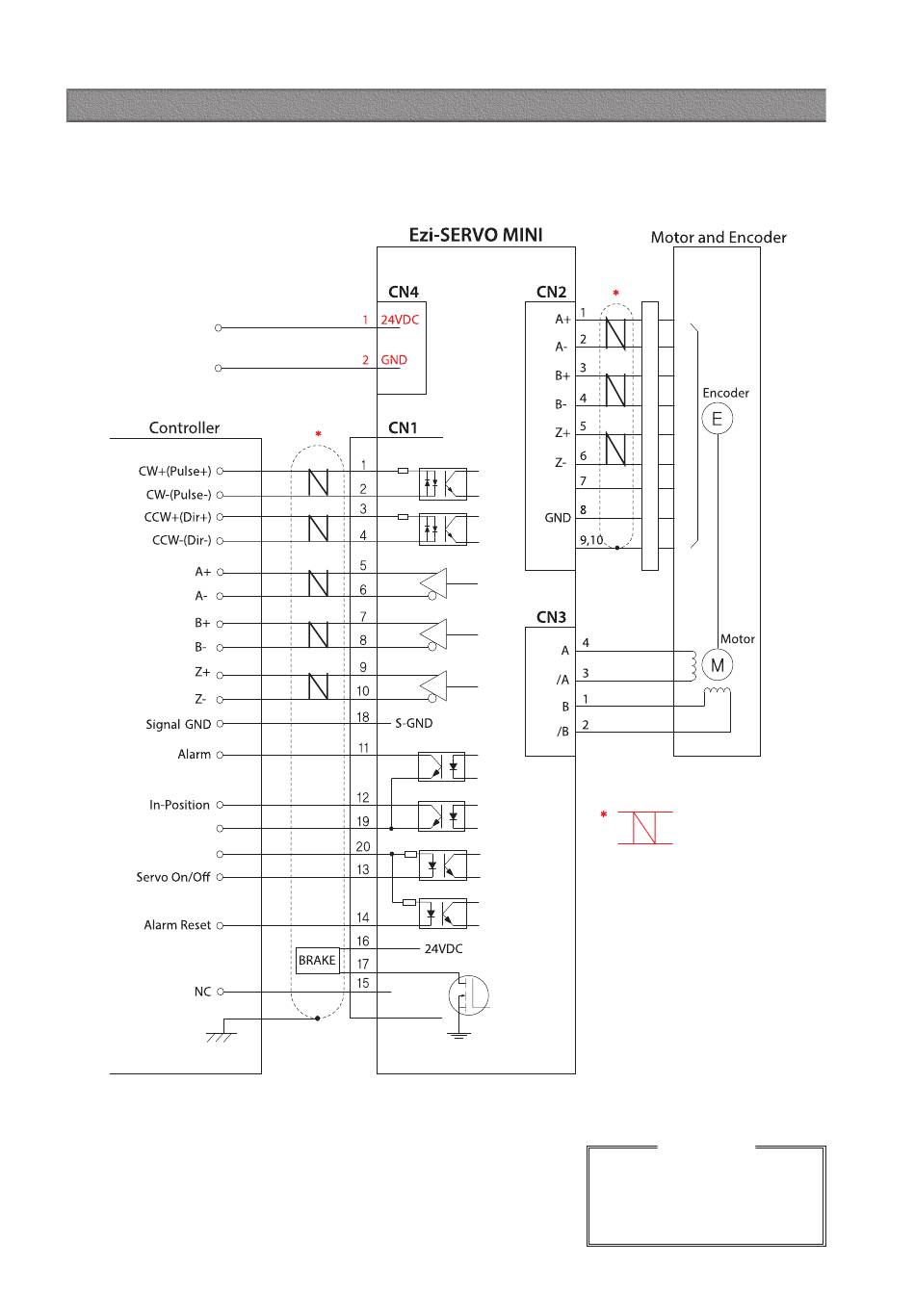

18. External Wiring Diagram
24VDC
GND
EXT_GND
EXT_24VDC
F.GND
※ When connects I/O cable between controller and drive, please turn off the power
of both controller and drive, in order to protect the drive from any damage.
5VDC
F.GND
Shielded
Twisted Pair
Cable
CAUTION
Please refer to the Appendix when
connects motor extension cable.
Careful connection will be required to
protect the drive from any damages.
www.fastech.co.kr - 23
