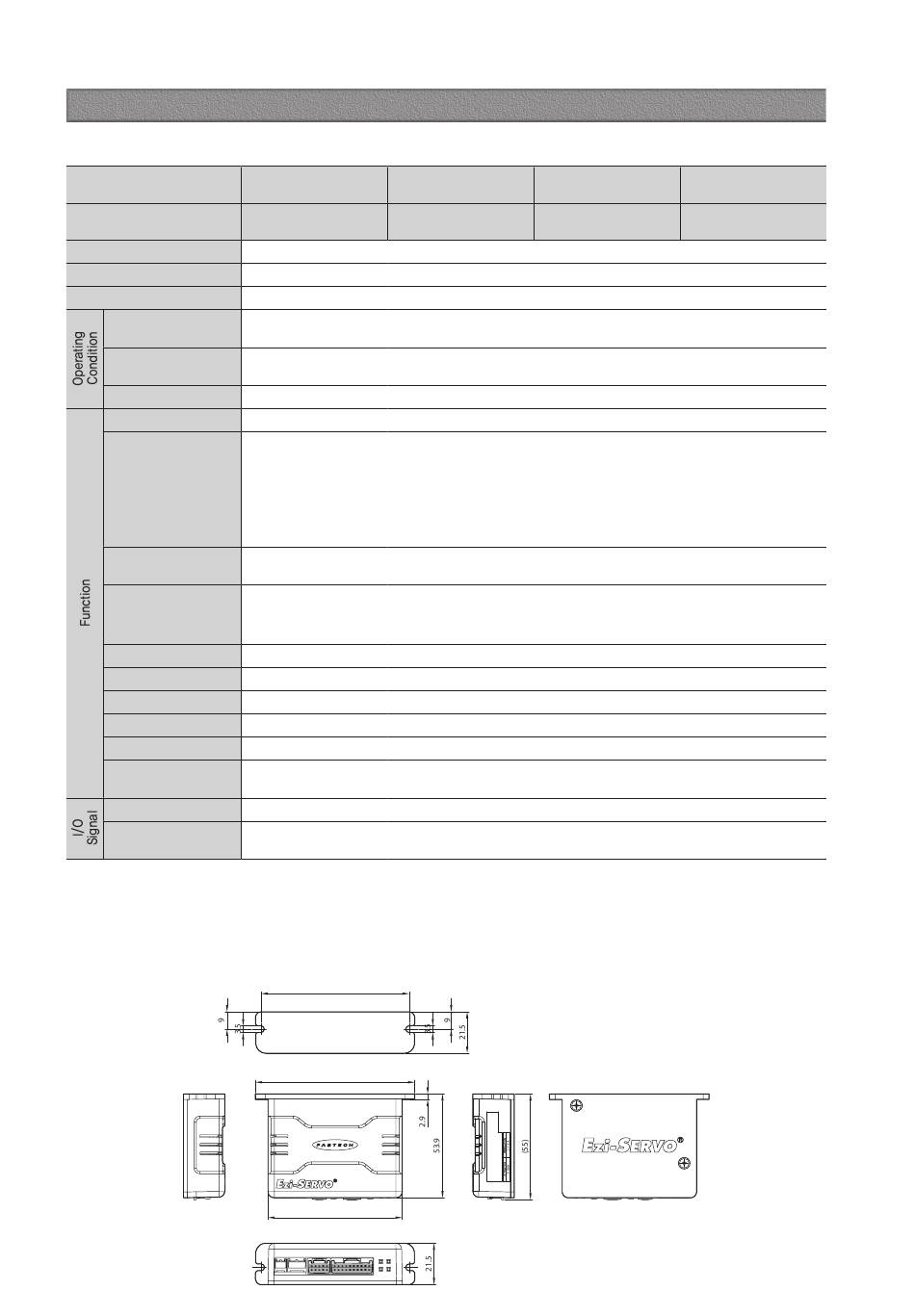

7. Drive Specification and Dimension

7.1 Specifications of Drive

Motor Model
Driver Model
Input Voltage
Control Method
Current Consumption
Ambient
Temperature
Humidity
Vib. Resist.
Rotation Speed
Resolution [ppr]
Max. Input Pulse
Frequency
Protection Functions
LED Display
In-Position Selection
Position Gain Selection 0~F (Selectable with DIP switch)
Pulse Input Method
Rotational Direction
Speed/Position
Control Command
Input Signals
Output Signals
*1
: Up to the resolution of 10,000[ppr], maximum speed can be reached by 3,000[rpm] and with the resolution more than 10,000[ppr], maximum speed
shall be reduced accordingly.
*2
: When selected resolution is more than encoder resolution, motor shall be operated by microstep between pulses.

7.2 Dimensions of Drive [mm]

EzM-20
series
EzS-PD-MI-20
EzS-PD-MI-28
series
24VDC ±10%
Closed loop control with 32bit MCU
Max 500mA (Except motor current)
·In Use: 0~50℃
·In Storage: -20~70℃
·In Use: 35~85% RH (Non-Condensing)
·In Storage: 10~90% RH (Non-Condensing)
0.5g
*1
0~3,000 [rpm]
4,000/Rev. Encoder model: 500 1,000 1,600 2,000 3,600 5,000 6,400 7,200 10,000 4,000
10,000/Rev. Encoder model: 500 1,000 1 ,600 2,000 3,600 5,000 6,400 7,200 10,000
16,000/Rev. Encoder model: 500 1,000 1 ,600 2,000 3,600 5,000 6,400 7,200 10,000 16,000
20,000/Rev. Encoder model: 500 1,000 1,600 2,000 3,600 5,000 6,400 7,200 10,000 20,000
32,000/Rev. Encoder model: 500 1,000 1,600 2,000 3,600 5,000 6,400 7,200 10,000 32,000
*2
(Selectable with DIP switch)
500kHz (Duty 50%)
Over Current Error, Over Speed Error, Position Tracking Error, Over Load Error, Over Temperature Error,
Over Regenerated Voltage Error, Motor Connect Error, Encoder Connect Error, In-Position Error,
System Error, ROM Error, Position Overflow Error
Power status, In-Position status, Servo On status, Alarm status
0~F (Selectable with DIP switch)
1-Pulse / 2-Pulse (Selectable with DIP switch)
CW/CCW (Selectable with DIP switch)
Pulse Train Input
Position Command Pulse, Servo On/Off, Alarm Reset (Photocoupler Input)
In-Position, Alarm (Photocoupler Output)
Encoder Signal (A+, A-, B+, B-, Z+, Z-, 26C31 of Equivalent) (Line Driver Output), Brake
77
82.8
mini
69.8
PWR
MOTOR
ENCODER
IN/OUT
PWR ALM
INP SON
EzM-28
EzM-35
series
series
EzS-PD-MI-35
series
series
EzM-42
series
EzS-PD-MI-42
series
