Installation Instructions

Mounting the Hood

CAUTION
At least two installers are required due to the
weight and size of the hood.

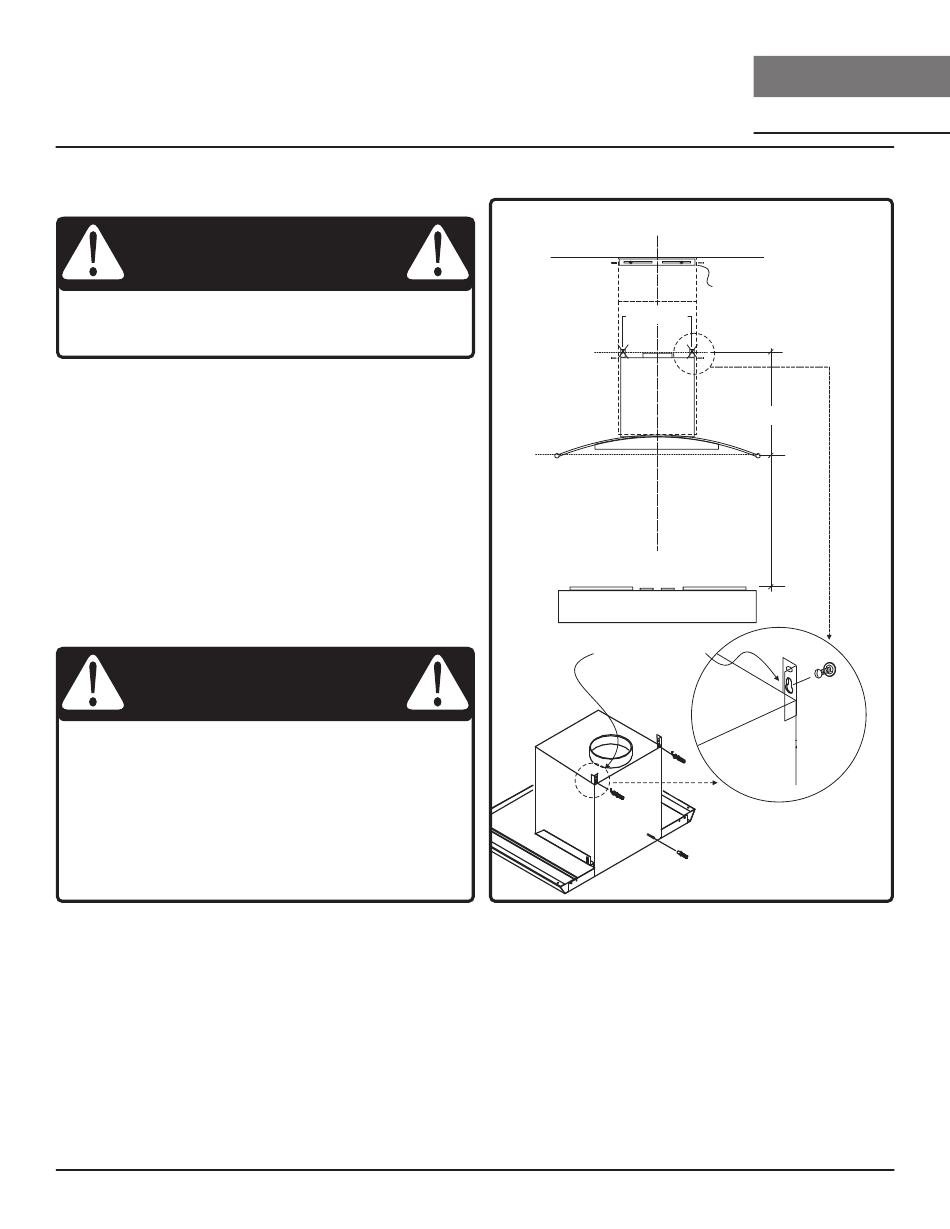

1. Measure from range top to hood bottom and
mark line A. (24" minimum from range top).
2. Plum and mark center line.
3. Mark mounting height line B. (18-5/8" from line
A).
4. Mark mounting spread from C/L. (11-1/4").
5. Fasten (2) #6 x 1-1/2" screws into studs on line B
but do not tighten all the way.
WARNING
Wood blocking may need to be added behind
the drywall if no studs are present. Wall anchors
may also be used but check local codes for
compliance. Failure to use suitable wall anchors
and screws to hold the weight of the hood could
result in personal injury or damage to cooking
surface or counter.
6. Remove tape and (2) screws securing electronics mounting bracket to hood. Reposition electronics
mounting bracket as shown in (FIG. A3) and secure to motor housing using the (2) previously
removed screws.
7. Remove (2) screws securing electrical junction box to electronics mounting plate. Remove junction
box. (FIG. A1).
8. Remove the (1) aluminum mesh filter.
