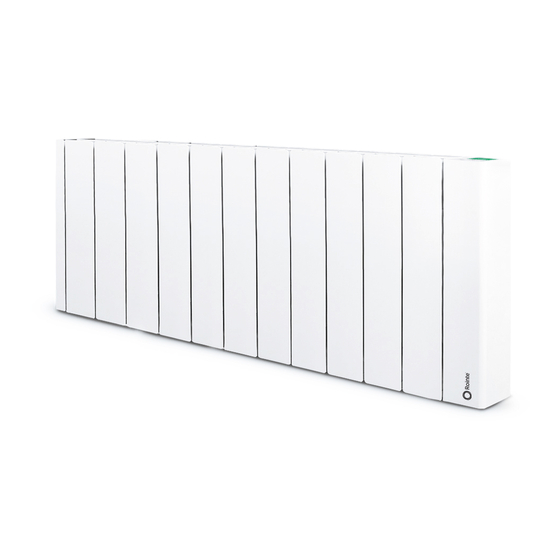

- Page 1 User Manual Belize radiator CONSERVATORY Models 1100RADC | 1300RADC | 1500RADC Please read this manual carefully before installation and operation. Please keep this manual for future reference and your product guarantee conditions.
-
Page 2: Table Of Contents
Thank you for choosing this product. Please read this manual carefully before operation and retain for further use. ROINTE digital electric radiators are designed for all types of environments and to meet any thermal need. The careful choice of components and materials ensures efficiency, without affecting comfort. - Page 3 IMPORTANT: To disconnect the product from the main power supply, remove the plug from the socket. Do not pull the cable. WARNING: If the power cable is damaged, it must be replaced by ROINTE or its authorized personnel in order to avoid any damage.
-
Page 4: Features & Functions
2.4 GHz in order for the app and WiFi module in your product to work. 3. INSTALLATION We recommend using a Rointe Trusted Supplier. Find your nearest one by calling us on 0203 321 5928 or using the locator at www.rointe.co.uk. - Page 5 BELIZE DIGITAL WIFI RADIATOR The product should be wall-mounted in an upright position according to the minimum clearances shown opposite, using the brackets and fixings supplied. Our products transfer heat through natural air convection. If the product is covered, this will interrupt air-flow and could cause overheating.
- Page 6 Inside the product packaging, you will find an installation kit. You will need a drill, rubber mallet, spirit level and a pencil to complete the installation. IMPORTANT: Please follow these instructions carefully. Remove packaging and check installation kit contains brackets, screws, rawl plugs and cardboard template.
- Page 7 BELIZE DIGITAL WIFI RADIATOR IMPORTANT: Template measurements per model 1100RADC 1300RADC 720 mm 880 mm 320 mm 400 mm 1500RADC 880 mm 400 mm...
-
Page 8: Control Panel
4. CONTROL PANEL TFT screen On / Off button Decrease temperature / Increase temperature Move left button / Move right button Main menu button Programming button Selected temperature Manual mode Current time and day Automatic mode Heating element on Preset programs mode Comfort mode Hourly programming WiFi connection... -
Page 9: Operation & Programming
BELIZE DIGITAL WIFI RADIATOR 5. OPERATION & PROGRAMMING 5.1. Switch on / off To turn the product on press the button once. To turn off press the button again. When you turn the product on for the first time, it will ask you to set the date and time. Use the buttons to select the correct time and press the button to confirm. - Page 10 5.4. Lock / unlock buttonpad The buttonpad can be locked using the control panel or the Rointe Lite App. To lock / unlock the buttonpad using the product control panel, press and hold the buttons together for 3 seconds. The On/Off button will still work, even if the control panel is locked. Press the button for 3 seconds to switch the product on or off.
- Page 11 BELIZE DIGITAL WIFI RADIATOR 5.5.1. Settings menu Press the button to access the configuration menu. Then use the buttons to navigate to SETTINGS. Press the button to access. • Set the day and time To set the day or time select the CLOCK option. Use the buttons to select the correct time and press the...
- Page 12 5.5.2. Energy menu Press the button to access the configuration menu. Then use the buttons to navigate to ENERGY. Press the button to access. • Open Windows Use the buttons to select whether you want this function On / Off and press to save.
- Page 13 BELIZE DIGITAL WIFI RADIATOR 5.5.3. WiFi menu Press the button to access the configuration menu. Then use the buttons to navigate to WIFI. Press the button to access. • WiFi status The WIFI STATUS option allows you to activate or deactivate the product WiFi connection.
- Page 14 5.5.4. Prog. Mode To change the status of your product from MANUAL to AUTO or vice versa, make a quick press of the button. If you want to start programming your product, make a long press of the button. To see all the options available for programming your radiator, select the option PROG.
- Page 15 BELIZE DIGITAL WIFI RADIATOR • User program This mode allows the user to make their own programming. There are 2 ways to start editing the programming: 1. Do a long press on the button. 2. Enter the submenu USER PROGRAM from the main menu.
- Page 16 Select the days to be programmed Start on Day 1 (Monday). Press the button to include this day in your programming. Press the button again to exclude. Use the buttons to move to the STEP 2 next day and repeat for all days of the week.
-
Page 17: Wifi Pairing
BELIZE DIGITAL WIFI RADIATOR • Pilot wire This option activates the pilot wire mode for those products that are connected to a control panel by means of a pilot wire. The product will be managed by the external pilot wire control unit to which it is connected. to select this option and press confirm. -
Page 18: Maintenance And Cleaning
The symbol of the container crossed out over a horizontal line is marked on all of ROINTE products to remind the consumer of the obligation to separate them on disposal. The consumer should contact their local authority or council office, or original point of sale to learn about the correct method of disposal for this product. -
Page 19: Terms And Conditions
BELIZE 9.1 Terms & conditions 1. ROINTE guarantees there are no material defects of design or manufacture at the time of original purchase. ROINTE guarantees the aluminium body for 120 months and electric plus electronic components for 24 months for this product only, provided it has not been modified in any way. - Page 20 ROINTE and should be returned as such. 2.6. The product must be installed in a way that allows access for ROINTE technicians or authorised persons should they need to gain access to the product for repair or maintenance.
-
Page 21: How To Register
BELIZE DIGITAL WIFI RADIATOR 9.2 How to register your product guarantee IMPORTANT: It’s important to register your ROINTE product as part of our guarantee service, in case you wish to make a claim. You can register your ROINTE product in the following ways: WEBSITE Go to www.rointe.com/uk/register-your-guarantee/. -
Page 23: Technical Specification & Data
BELIZE DIGITAL WIFI RADIATOR... - Page 24 Rointe Nederland 3197 LG Botlek, RT T. 010 742 00 46 Copyright © Rointe Heating 2021. All rights reserved. As part of our policy of continuous improvement, we reserve the right to alter or modify any product or specifications without prior notice.
