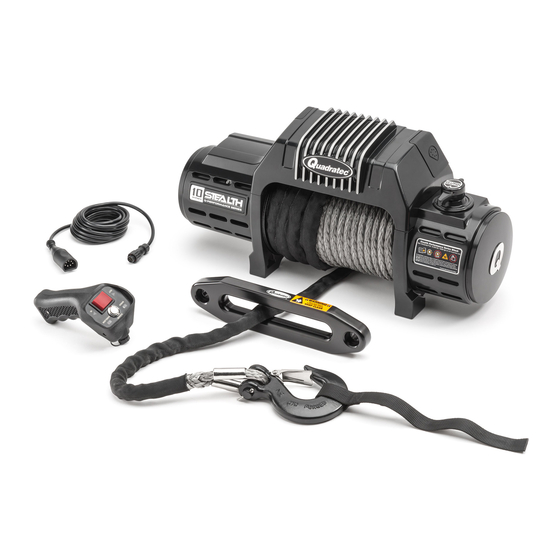

Q-Performance Stealth
Series Winch
with Integrated Solenoid
& Synthetic Winch Line
Assembly and Installation Manual
REQUIRED TOOLS:
Safety Glasses
Safety Gloves
Torque Wrench
13 MM Wrench 15 MM Socket
#92122.4031 & #92122.4041
READ ALL SAFETY MESSAGES AND UNDERSTAND ALL
INSTRUCTIONS AND PROCEDURE NOTICES
FORE ATTEMPTING TO INSTALL OR USE THIS PRODUCT.
16 MM Wrench 2.5 MM Hex (Allen®) Key
4 MM Hex (Allen®) Key
#1 Phillips Head Screwdriver
US PATENT PENDING
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Quadratec Q-Performance Stealth Series
Summary of Contents for Quadratec Q-Performance Stealth Series
- Page 1 US PATENT PENDING Q-Performance Stealth Series Winch with Integrated Solenoid & Synthetic Winch Line Assembly and Installation Manual #92122.4031 & #92122.4041 READ ALL SAFETY MESSAGES AND UNDERSTAND ALL INSTRUCTIONS AND PROCEDURE NOTICES FORE ATTEMPTING TO INSTALL OR USE THIS PRODUCT. REQUIRED TOOLS: Safety Glasses 16 MM Wrench 2.5 MM Hex (Allen®) Key...
- Page 2 ® FOLLOW INSTRUCTIONS. Unpacking: When unpacking, check to make sure all parts are included. If any part is missing or broken, please call Quadratec Customer Service at 800-745-6037 as soon as possible. Winch Power Button Remote Control Plug Cover Winch Assembly...
-
Page 3: Assembly And Installation
Assembly and Installation FIRE/ELECTRICAL SPARK/CHEMICAL BURN HAZARDS: CONNECTING WINCH TO BATTERY AND WINCH OPERATION MAY CAUSE ELECTRICAL ARCS. NEVER INSTALL OR USE WINCH WHERE GASOLINE LEAKS, VAPORS OR OTHER FLAMMABLES ARE PRESENT. ALWAYS WEAR EYE PROTECTION & REMOVE JEWELRY WHEN WORKING WITH BATTERY OR INSTALLING WINCH ELECTRICAL CABLES. -
Page 4: Winch Mounting
Assembly and Installation (Continued) BATTERY CABLES SHOULD NOT BE DRAWN TAUT. LEAVE SLACK FOR SOME CABLE MOVEMENT. THE BATTERY CABLES SHOULD BE SECURE, OUT OF THE WAY OF MOVING PARTS, ROAD DEBRIS, OR ANY POSSIBILITY OF BEING DAMAGED BY OPERATION OR MAINTENANCE OF VEHICLE. - Page 5 Assembly and Installation (Continued) Winch Line Cotter Pin Winch Hook neutral gear) with the winch up a slight rows. Review Operator’s Guide for this flat incline. See your glovebox sized extremely important procedure. “Self-Recovery Winch Operator’s Guide” Attach the Winch Hook to Synthetic to properly set up this pull with full Winch Line: understanding of all safety precautions.
- Page 6 Remote Controller Setup Rubber remote plug cover Securing Collar "D" Shaped Remote Plug Remote Handle Cord Plug cap For Wired Operation: the remote handle to ensure a proper There is no need to turn on the winch with the Power Button (the button must connection.
- Page 7 Remote Controller Setup Remote Control Power Button Red “Wireless” Indicator Light Rocker Switch WIRELESS MODE is blinking, press and hold the silver Remote Control Power Button. The red “WIRELESS” light on the remote will THE POWER BUTTON MUST BE OUT FOR WIRED CONTROL OF THE WINCH.
- Page 8 Remote Controller Battery Replacement Remove 3 Phillips Head Screws Battery Replacement Procedure: NOTE: The presence of a battery is NOT required whenever using a"WIRED” Remove the three (#1 size) Phillips head remote controller. But, a charged battery screws that attach the winch controller is necessary when using a “WIRELESS”...
- Page 9 Winch Clutch Operation Details Engaged Free Spool There are two positions of the clutch to manually engage or disengage the handle. The Clutch is either “engaged” or spooling drum from the gearset using the “free spooling”. Clutch allows operator clutch lever. NEVER ENGAGE OR DISENGAGE CLUTCH IF THE WINCH IS UNDER LOAD, THE WINCH ROPE IS UNDER TENSION OR THE SPOOL IS MOVING IN ANY WAY.
- Page 10 Clutch Handle Removal (Optional) NOTE: Our Patent Pending removable Once the Clutch Handle is removed, it Clutch Handle doubles as a “key” can be stored in the vehicles glove box that can be temporarily removed to or console and used only when winching. Clutch handle removal is optional.
- Page 11 650 Cold Cranking Amps. Ask your regular 3 month intervals to be certain Quadratec sales representative for details they are clean and tight at all connection about heavy-duty batteries and terminals points.Inspect winch line before & after for your vehicle.
-
Page 12: Specifications
SPECIFICATIONS Q10 Performance Stealth Winch with Steel Winch Cable Rated Line Pull (Single Line) 10,000 lbs (4536 kgs) Gear Reduction Ratio 210:1 Motor (Series Wound) 12 Volt / 4.9 hp (3.65 kW) Drum Size 2.64” x 8.35” (67mm x 212mm) Steel Winch Cable 3/8”... -
Page 13: Troubleshooting
TROUBLESHOOTING Problem Possible Cause Possible Solution When remote control switch is activated, a clicking sound Battery is inadequate Replace battery with 650 cold cranking amp occurs and or defective. rating or greater. winch does not operate in either the power in or power out mode. - Page 14 TROUBLESHOOTING Problem Possible Cause Possible Solution When winch control is activated, the Remote control is Check remote control and its cable. Check all winch operates damaged. connections and replace if necessary. only in one direction. Ground and power cables are loosely Be sure connections are clean and tight.
- Page 15 TROUBLESHOOTING Problem Possible Cause Possible Solution Winch Line has difficulty Bent drum side Replace Drum. spooling off the flange. winch drum by hand. Worn drum bearing Replace motor sub-assembly and/or surfaces. clutch sub-assembly. Free spool clutch is Remove and inspect gear carrier assembly.
- Page 16 Q-Performance Series winches other person or entity to assume for it any other should first contact Quadratec® to obtain a RGA obligation or liability in connection with number (610-701-3336). All labor, removal, shipping this product or Limited Warranty.
