Summary of Contents for Mercado Medic REAL 6100 PLUS
Page 1

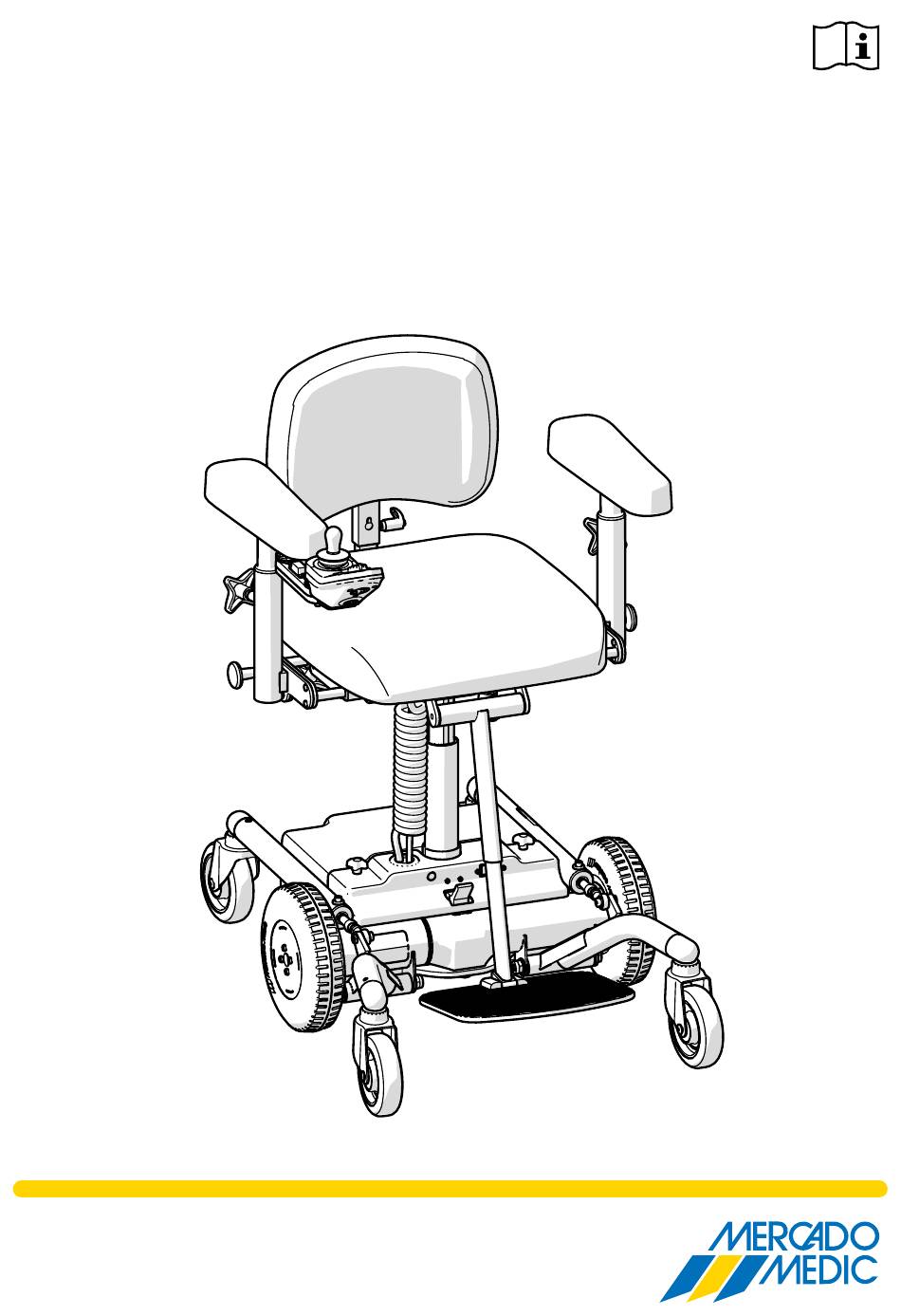

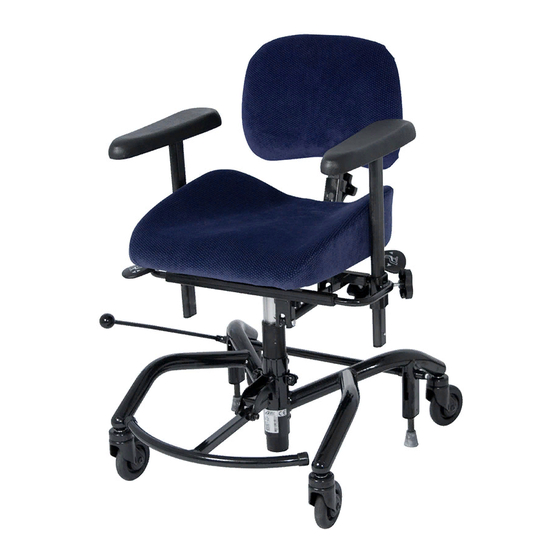

INSTRUCTIONS FOR USE for medical electric wheelchairs in the REAL 6100 PLUS device range Instructions for use and care Translation of manual Item number: 21-08877-UK Revision: 02 Valid from: 2021-05-26 Amended: -...
Page 2
[Space for device label with serial number]...
Instructions for use for medical electric wheelchairs Table of contents User information 5.11. Armrest mechanism ... . . 39 5.12. Leg support ....41 1.
We manufacture all our different medical chairs under our own management in Sweden. Mercado Medic is certified to ISO 13485, ISO 9001 and ISO 14001, and complies with applicable labour and environmental legislation.
Instructions for use for medical electric wheelchairs Introduction 1.1. Contact details 1.2. Warranty Manufacturer All components of Mercado Medic's devices Street address: Mercado Medic AB, are covered by warranty, under the time Tryffelslingan 14, SE-181 57 Lidingö, Sweden periods and general terms and conditions...
If you have any questions about your device or if something unexpected has happened, please first contact your prescriber or dealer. You can find up-to-date contact details in Section 1.1. Contact details. You are also welcome to contact us at Mercado Medic. 2.1. Before use...
Page 7
Instructions for use for medical electric wheelchairs Getting started Neck support Armrests Backrest mechanism (Medic) Chassis control unit (REM 211) Figure 2.1. Preparations before the device is put into use. Consider the following before and during • The leg support must not be adjusted so use of the device that it is in contact with the floor.
Page 8
Instructions for use for medical electric wheelchairs Getting started • Operate the device with caution when the displayed. To deactivate the button lock, seat is in the raised position. The power of press and hold the main switch until the the motors is automatically reduced when padlock symbol appears on the display.
(A) on the control unit, see Figure modified, the CE marking no longer 2.2. During driving, the device is controlled applies and Mercado Medic may by means of the control unit joystick. For no longer have full device liability.
Warning! Only use chargers approved by Mercado Medic to charge the product. The use of other chargers may, for example, result in the risk of fire or inter- ference with other electronic Figure 2.4.
Instructions for use for medical electric wheelchairs Getting started 2.4. Transferring and moving Batteries emit explosive gases during charging. Consequently, Only transfer to and from the device on a charge your device in well- flat surface. Make sure that the device is ventilated area and avoid flames switched off and the brake is applied to avoid and sparks.
Page 12
Instructions for use for medical electric wheelchairs Getting started Transferring from the front If a patient lift is used during the transfer to When transferring from the front, the and from the devise are used when moving to movement will be forward to or from a piece and from the device, possible pinching risks of furniture to which or from which you wish should be taken into account.
Instructions for use for medical electric wheelchairs Caring for the device 3. Caring for the device Clean the device according to the instructions in this section to maintain its functions and service life. If you still have issues that cannot be resolved using available home resources, please contact your prescriber or distributor for reconditioning.
Instructions for use for medical electric wheelchairs Caring for the device If necessary, a dry cloth can be used to remove dust from any electronic device components, including the charger. Clean the other non-electronic parts of the device once a week or when necessary. Use a clean, damp cloth with mild detergent (pH 7-12), surface disinfectant or use a steam cleaner (max.
Page 15
• In the case of air transport, the device must be stored in the hold. Original • Never place a fully discharged battery Mercado Medic batteries are approved for away for storage. Batteries that are air transport. For information on battery discharged for too long, will be damaged type, see 7.
4. intended use 4.1. Operating environment The REAL 6100 PLUS is an electric wheelchair for indoor use designed to be used by people • The device is intended for indoor use with a reduced ability to walk, but with only and must not be used outdoors.
Instructions for use for medical electric wheelchairs Configurations and settings 5. Configurations and settings This section is primarily aimed at you as a www.mercado.se there are various forms prescriber of the device. It describes the of prescription support such as information device's models, options when configuring sheets, order forms and a digital chair the device, and information about setting...
PLEASE NOTE! The basic design of the device may vary between regions and contracting entities. REAL 6100 PLUS LiNX REAL 6100 PLUS LiNX Child Adult model Child model The device has a basic program with three pre-programmed driving profiles. All parameters in the driving profiles are adapted to the different speeds.
Page 19
Instructions for use for medical electric wheelchairs Configurations and settings Control unites can be mounted using two types of attachment, a control arm and ParaLoc (optional). The control arm is articulated at two points and allows movement of the control unit towards the inside and outside of the armrest.
Page 20
Instructions for use for medical electric wheelchairs Configurations and settings Check the control unit when starting the device. A flashing red light on the main switch will signal there is an error. The number of flashes indicates the fault that has occurred; see 8.1 for more information.
Page 21
Instructions for use for medical electric wheelchairs Configurations and settings Control unit LiNX REM211 The LiNX REM211 is a control unit with a joystick, buttons for selecting driving and seat functions, a battery indicator and a horn. It is also equipped with controls to temporarily adjust the driving characteristics within the selected driving profile.
Page 22
Instructions for use for medical electric wheelchairs Configurations and settings Seat functions Press the buttons (E) to select the seat function, see Figure 5.7. An orange light on the display indicates the selected seat function. You can also switch between seat functions by moving the joystick sideways.
Page 23
Instructions for use for medical electric wheelchairs Configurations and settings Control unit LiNX REM400 The LiNX REM400 is a control unit with a joystick, buttons for selection of driving profile and seat function, a battery indicator and a horn. When the electronics start up, the function that was active when the electronics were switched off is always opened.
Page 24
Instructions for use for medical electric wheelchairs Configurations and settings Brake: • To brake, release the joystick so that it returns to its neutral position. For faster braking, move the joystick in the opposite direction to the direction of travel. PLEASE NOTE! The braking distance is affected by the slope of the surface.
Page 25
Instructions for use for medical electric wheelchairs Configurations and settings Button lock Activating and deactivating the button lock: 1. To activate the button lock, press and hold the main switch for at least 4 seconds until the display shows a padlock. All driving functions and seat functions are locked.
Page 26
Instructions for use for medical electric wheelchairs Configurations and settings LiNX DLX-ACU200 Attendant Control Attendant control is an additional control unit with a secondary joystick that can be located on the back rest and allows an attendant to operate the device as needed, see Figure 5.15.. Both driving functions and seating functions can be controlled with Attendant Control.
Instructions for use for medical electric wheelchairs Configurations and settings Wireless emergency stop The device can also be equipped with a wireless emergency stop. A wireless emergency stop is plugged into the charging socket on the control unit and allows an attendant to stop the device from a distance.
Page 28
Instructions for use for medical electric wheelchairs Configurations and settings Electric height adjustment 1. Make sure that the seat symbol light on the display is orange, see Figure 5.17. 2. Move the joystick forward to raise the seat. 3. Push the joystick backwards to lower the seat. Figure 5.17.
Page 29
Instructions for use for medical electric wheelchairs Configurations and settings El-Comfort electric leg support To adjust the angle of both leg supports at the same time, select the right and left leg supports. To adjust only the angle of the right and left leg supports separately, select the right or left leg support, see Figure 5.21.
Page 30
Instructions for use for medical electric wheelchairs Configurations and settings Keypad The LiNX Keypad can be used to adjust the electric seat tilt, the electric back rest mechanism, electric leg supports and electric height adjustment. Seat height Buttons above and below the seat height symbol, see Figure 5.23.
Instructions for use for medical electric wheelchairs Configurations and settings Adjustment of length and angle: 1. Press the upper button to angle the leg support forwards and upwards. 2. Press the lower button to angle the leg support backwards and downwards. Figure 5.26.
Instructions for use for medical electric wheelchairs Configurations and settings ErgoMedic Coxit ErgoMedic Coxit is a coxit seat with angularly adjustable flaps, see Figure 5.29. The seat is available in sizes from 400 x 390 mm to 440 x 480 mm. Figure 5.29.
Instructions for use for medical electric wheelchairs Configurations and settings Crank handle The crank handle is located under the rear edge of the seat, see Figure 5.32. Adjustment: 1. Turn the control to the right to move the seat tilt forwards.
Instructions for use for medical electric wheelchairs Configurations and settings 5.8. Backrest Backrests are available in six versions: ErgoMedic, ErgoMedic Support (optional), ErgoMedic Plus (optional), ErgoMedic Plus with side wedge (optional), ErgoMedic Plus Comfort (optional) and ErgoMedic Plus Comfort with side wedge (optional). ErgoMedic and ErgoMedic Plus are also available in the optional Slow Recovery material.
Page 35
Instructions for use for medical electric wheelchairs Configurations and settings ErgoMedic Plus with side wedges ErgoMedic Plus with side wedges is a highly positioning back rest with extra built-up sides for better lateral 43 cm stability, see Figure 5.38. The seat is available in sizes from 300 x 340 mm to 460 x 430 mm.
Instructions for use for medical electric wheelchairs Configurations and settings 5.9. Manual backrest mechanism The manual back mechanism is available in three versions, Standard, Medic (optional) and Comfort (optional). These are available in low and high models. Back rest mechanism adjustment is also available as an electrical function, see 5.4.
Page 37
Instructions for use for medical electric wheelchairs Configurations and settings Medic Medic can be adjusted in height (A), angle of back rest mechanism (B, angle of back recliner (C) and depth (E), see Figure 5.42. The back recliner can be adjusted in the range of 15°...
Instructions for use for medical electric wheelchairs Configurations and settings 5.10. Armrest panel Armrest panels are available in five versions, Mobile, ErgoMedic, (optional), ErgoMedic Plus (optional), Hemiplegia (optional) and Extra Soft (optional). Upholstery for armrest panels is available in five materials, synthetic leather, plush (optional), patterned fabric (optional), hygiene fabric (optional) and genuine leather (optional).
Instructions for use for medical electric wheelchairs Configurations and settings Hemiplegia The Hemiplegia armrest panel is designed for the Hemiplegia armrest (optional) allowing the armrest to be rotated in front of the body. The armrest panel has edges on the outside and inside and is extra long to support the hand, see Figure 5.47.
Page 40
Instructions for use for medical electric wheelchairs Configurations and settings Foldable armrests Foldable armrests are adjustable in height (A), width (B) and can be folded backwards (C), see Figure 5.49. For height and width adjustment, see PLUS armrest. Folding the armrests: 1.
Instructions for use for medical electric wheelchairs Configurations and settings Hemiplegia armrest The Hemiplegia armrest is adjustable in height (A), width (B) and rotation (C), see Figure 5.51. For height and width adjustment, see PLUS armrest. Armrest rotation: 1. Loosen the knob and adjust to the desired position. 2.
Page 42
Instructions for use for medical electric wheelchairs Configurations and settings Centre-mounted The centre leg support is adjustable in height (A), angle of leg support (B) and angle of footplate (C), see Figure 5.53. Setting the height of the footplate: 1. Loosen the wheel and pull or push the footplate to the desired height.
Page 43
Instructions for use for medical electric wheelchairs Configurations and settings Cross leg support adapter The Cross leg support Adapter, see Figure 5.55, is mounted on the width adjustment bar of the armrests. The adapter can be mounted in two depth positions for different deep seats and be fine-tuned steplessly to 50 mm in depth.
Configurations and settings 5.13. Chassis The device is equipped with a complete LiNX f REAL 6100 PLUS chassis. The chassis has four castors with individual suspension and two puncture-free drive wheels. The front legs are spring-mounted to facilitate avoiding obstructions. The spring force and the maximum stroke of the front legs can be individually adjusted.
Page 45
Instructions for use for medical electric wheelchairs Configurations and settings Rear leg extensions Rear leg extensions are mounted on the rear legs of the chassis, see Figure 5.58. Figure 5.58. Rear leg extensions. Contact breaker • Press "OFF" to disengage the circuit breaker. •...
• The user's centre of gravity must be risk of strangulation. maintained over the lifting mechanism. In addition to its own range, Mercado Medic • Padded parts must be able to withstand has combination agreements with several the applicable flammability requirements companies.
Page 47
CE marking Regulation on Medical Devices (EU) 2017/745, MDR. For questions regarding customisation, please contact the device Manager at Mercado Medic using the contact details of the head office under Section 1.1. Contact details. 21-08877-UK-02...
6.1. Standards met and classification All textiles on the devices have been tested and approved according to the following fire Mercado Medic's work chairs are CE protection standards: marked in accordance with the Regulation on Medical Devices (EU) 2017/745, MDR, •...
Page 49
Medic. If this is not followed, the single user. Changing settings may CE marking no longer applies and affect the user's seating position, Mercado Medic may no longer have which may result in damage or injury. full device liability. Warning! You are not permitted to Warning! The device must not be modify the device yourself.
(UDI-DI). minimise the risk of strangulation. Warning! Only use chargers approved REAL 6100 PLUS LiNX by Mercado Medic to charge the Basic UDI-DI: 732184D0049V product. The use of other chargers 135 kg may, for example, result in the...
As a manufacturer of medical devices in been used and its wear and tear. After the the EU, Mercado Medic is obliged to have a expected service life, Mercado Medic AB system to monitor how our devices work in cannot guarantee the provision of spare practical use.
Warning! Repairs and other technical measures may only be carried out by personnel authorised by Mercado Medic. If this is not followed, the CE marking no longer applies and Mercado Medic may no longer have full device liability.
Page 53
310–380 mm Leg support angle 0°/+32° Armrest height 150–300 mm Castors Ø125 mm 804362 Castors Rubber Track 125x36 M12 REAL 6100 PLUS Drive wheels Ø225 mm, fully cast and puncture-free 805203 Drive wheel REAL 6100 PLUS Obstacle-negotiating 40 mm capability Turning space 180°...
Mercado Medic, see 1.1. Contact details. Basic program At the time of delivery. the REAL 6100 PLUS LiNX has basic software, a bundle program that includes pre-programmed drivers for the devise's basic functions as well as drivers for alternative electrical options and accessories. The basic program allows you to switch between the following modules and functions without requiring reprogramming.
Page 55
Instructions for use for medical electric wheelchairs Technical information • REM211 control unit • REM400 control unit • REM500 Display box • LiNX keypad • Attendant Control (ACU200) • ACT400 Actuator box for 4 seat functions • Electric back recliner •...
Page 56
PLEASE NOTE! Customisation of driving functions may only be performed by personnel authorised by Mercado Medic. For information on training and authorisation, please contact Mercado Medic, see 1.1. Contact details. Selection of programmable functions: •...
Instructions for use for medical electric wheelchairs Technical information • Braking to turning speed • Joystick sensitivity • Use of external joystick • Reverse joystick function 7.2. Symbols The following symbols are used on the device controls, markings or in these instructions for use.
Page 58
Instructions for use for medical electric wheelchairs Technical information No. LiNX REM400 & REM500 control unit Navigation button - navigation interaction area and mode symbol with both swipe and touch mode. The symbol is blue if the mode is enabled or grey if the mode is disabled.
Page 59
Instructions for use for medical electric wheelchairs Technical information No. Electric Controls 10-way switch Function for adjustment of back angle Function of adjustment of seat height. Function for adjustment of the length of leg supports Function for adjustment of the length and angle of leg supports Function of adjustment seat tilt...
Page 60
Instructions for use for medical electric wheelchairs Technical information No. Labelling and instructions for use The device is part of a This side up recycling system Component weight exceeds Permitted temperature 10 kg May not be used as seat in Permitted relative humidity motor vehicle Permitted altitude...
Medic. If this is not followed, the The device’s main components include CE marking no longer applies and chassis, lifting mechanism, seat frame, back Mercado Medic may no longer have rest mechanism and armrest mechanism. full device liability. The inspection must include welds, lockable Warning! As a user, you should functions and settings.
Servicing & reconditioning 8.1. Troubleshooting guide If none of the following actions address the problem that has occurred, service may be required. Please contact your dealer or get in touch with Mercado Medic, see 1.1. Contact details. Operational malfunction of control unit An operational malfunction is indicated when the control unit indicator light flashes at the main switch.
Page 63
Instructions for use for medical electric wheelchairs Servicing & reconditioning 3 flashes Left (M1) motor This means Check by unplugging the M1 that there is a break or short- connection and measuring the circuit on the lead from the resistance between the two electronic module’s M1 outer pins (1 and 4) in order to connector to the motor, or...
Page 64
Instructions for use for medical electric wheelchairs Servicing & reconditioning Red LED on battery Battery uncharged/defective. Charge the device, see 2.3. indicator flashes Charging. Alternatively, replace the battery, see 8.2. Battery replacement. The functions on the The control unit button lock See 5.3.
Page 65
Event log and device statistics can be used to investigate how the device was being used when an error occurred. For information on training and authorisation, please contact Mercado Medic, see 1.1. Contact details. Event log 1. Connect to the LiNX system.
Mercado Medic may no longer have full device liability. The internal batteries of the device can be replaced. Both batteries in the battery pack must be replaced at the same time. For instructions, see REAL 6100 PLUS Battery Replacement’ installation instruction.
This type of periodic maintenance at intervals of a work may therefore only be carried maximum of 2 years must be carried out out by a Mercado Medic authorised throughout and after the expected service technician. life according to the following reconditioning Warning! All parts of the device must instructions.
Page 68
PLEASE NOTE! Only Mercado Medic authorised personnel may connect to the system. For information on training and authorisation, please contact Mercado Medic, see 1.1. Contact details. Charger Check that the charger is working and that the casing and cables are undamaged.
Page 69
Listen for noise in the lifting mechanism. Replace the lifting mechanism in case of noise. Load the device and check that the lifting mechanism does not slip when starting from the bottom position. Defective lifting mechanisms can be sent to Mercado Medic for repair. 21-08877-UK-02...
Page 70
Replace the lifting mechanism in case of play. Defective lifting mechanisms can be sent to Mercado Medic for repair. Lifting columns Raise the lifting mechanism to the highest position.
Page 71
Instructions for use for medical electric wheelchairs Servicing & reconditioning Area Reconditioning instructions 7 Castors Function Check castors and jumpers for wear or play. Wear or play may indicate defective bearings. Check that the castors rotate well and the housings rotate. Replace worn or damaged parts.
Page 72
Instructions for use for medical electric wheelchairs Servicing & reconditioning Area Reconditioning instructions 9 Backrest mechanism Mechanics Check and replace any worn parts, carefully inspect for cracks in welds as they may have been heavily loaded for a long time. Ensure good lighting and preferably use a magnifying glass, as small cracks can be difficult to detect on black lacquered structures.
Page 73
12 Programming 12.1 Software update Connect to the system and update the electronics with the latest REAL 6100 PLUS LiNX bundle program sp that all units in the system have the latest software version. Reset the error log, history and statistics for charging before prescribing the device to a new user.
Warning! Installation, connection or dismantling is not risk-free. If components are handled incorrectly, for example, crushing damage may occur. This type of work may therefore only be carried out by a Mercado Medic authorised technician. 9.1. Recycling Instructions for recycling of components. The maximum component weight is specified for each component.
Page 75
Instructions for use for medical electric wheelchairs Instructions for destruction 21-08877-UK-02...
