THE REAL-CHAIRS ARE CE-CERTIFIED
IN ACCORDANCE WITH THE MPA STATUTES
OF MEDICAL DEVICES, LVFS 2003:11.
Q u i c k R e f e r e n c e G u i d e
REAL
6100 PLUS
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the REAL 6100 PLUS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Mercado Medic REAL 6100 PLUS

Summary of Contents for Mercado Medic REAL 6100 PLUS

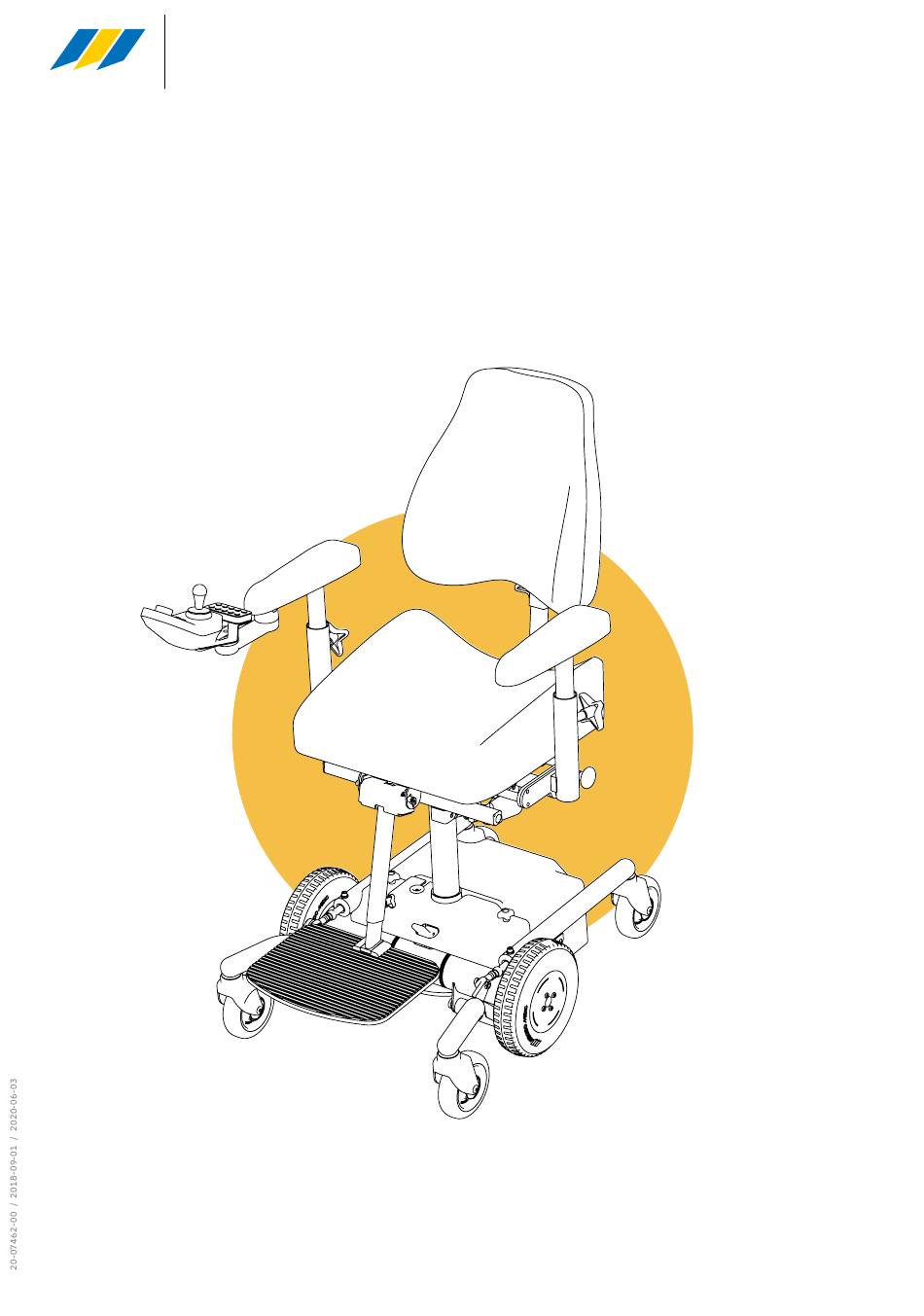

  • Page 1 THE REAL-CHAIRS ARE CE-CERTIFIED IN ACCORDANCE WITH THE MPA STATUTES OF MEDICAL DEVICES, LVFS 2003:11. Q u i c k R e f e r e n c e G u i d e REAL 6100 PLUS ®...

  • Page 3: Seat Height

    SEAT SIZE Choose the right seat and adjust the width of the armrests. < 58 cm 29-48 cm 32-53 cm SEAT HEIGHT SEAT TILT Three different actuators with different Controls and function can be adjusted strokes each gives their different seat according to needs and wishes.
  • Page 4 BACKREST SIZE The chair can be equipped with backrests of different shapes and sizes. BACKREST HEIGHT ADJ. BACKREST TILT -10° / +60° Manual Electric BACKREST/SEAT DEPTH The total seat depth is affected by the choice of seat, the angle of the backrest as well as the depth adjustment of the backrest.
  • Page 5 ARMRESTS FOLLOWS SEAT TILT The chair can be configured so the armrests to follow the seat tilt or to be fixed relativ the base. Armrests follows Armrests fixed seat tilt FOLDABLE ARMRESTS...
  • Page 6 STANDARD 40°- 5° LENGTH COMPENSATING 90°- 0° -15° +35°...
  • Page 7 FUNCTION DLX-REM 211 Speed dial Power button Seating function Drive function Horn Joystick Standard remote module can handle up to six different electric functions. 10-way switch for quick control of electric functions. DLX-SW10 ALTERNATIVES Alternative remote modules for use with more advanced control options, such as minijoystick, head control or sip-and-puff.

  • Page 8: Technical Data

    Backrest tilt: -15/+45° Tested and approved by Mercado Medic AB Possible stepless downward adjustment of max 3 cm. Measured without seat tilt from floor to seat underside with seat in flat position. With seat tilt +1 cm. With seat tilt “adjustable reinforced seat frame” +2 cm...
