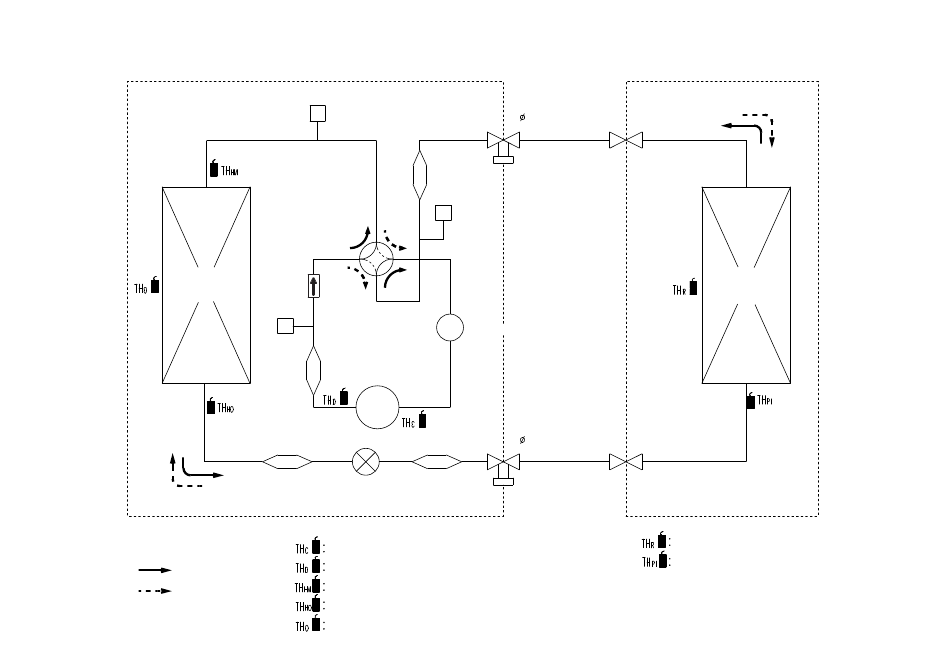

REFRIGERANT SYSTEM DIAGRAM

OUTDOOR UNIT
Heat
Exchanger
Refrigerant direction
Cool
Heat
2013.02.15
Pressure
Check Valve
Muffler
4-way
Valve
Check
Valve
High Pressure
Switch
Muffler
Compressor
Strainer Strainer
Expansion
Valve
Thermistor (Compressor)
Thermistor (Discharge)
Thermistor (Heat Exchanger Med)
Thermistor (Heat Exchanger Out)
Thermistor (Outdoor)
INDOOR UNIT
Refrigerant Pipe
15.88mm (5/8")
3-way Valve
Pressure
Sensor
Accumulator
Refrigerant Pipe
9.52mm (3/8")
3-way Valve
3
Heat
Exchanger
Thermistor (Room)
Thermistor (Pipe)
