Woodline Mistral Assembly Instructions

Download this manual

Pulley System

Stainless Steel

hook for coiling the

rope when umbrella

is open

Distributor | 970.527.7070 - www.shadescapesusa.com

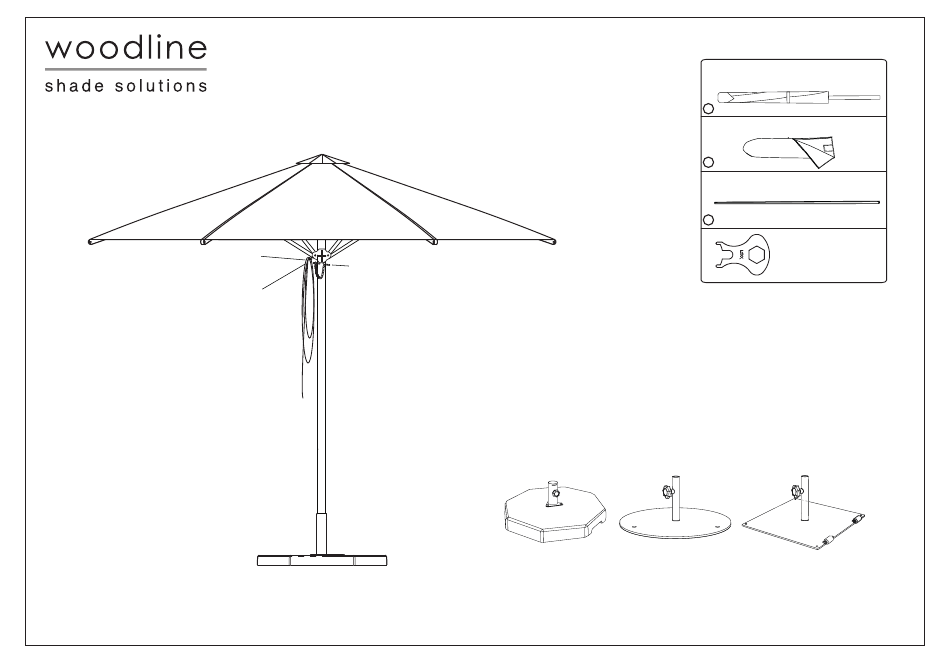

MISTRAL UMBRELLA

ASSEMBLY INSTRUCTIONS

Stop Pin

*NOTE:

You may have purchased one of three bases for mounting the umbrella. The components comprising the base

mount system are in separate boxes from the umbrella. Locate your base mount system boxes, and assemble

the base system prior to removing the umbrella from the protective plastic bag.

For alternative base options please view www.woodlineshade.com

Concrete Slab Base

CONTENTS LIST

1 X UMBRELLA CANOPY (INCLUDING

COVER BAG) AND FRAME

1 X COVER BAG

1 X COVER BAG STICK

LOXX SPANNER

(IN ZIPLOC BAG ATTACHED

TO RUNNER ON THE

UMBRELLA STRUCTURE)

Round Metal Base

Square Metal Base

MISTRAL 28/11/17

1/5

Need help?

Do you have a question about the Mistral and is the answer not in the manual?

Page 1 MISTRAL 28/11/17 CONTENTS LIST MISTRAL UMBRELLA 1 X UMBRELLA CANOPY (INCLUDING COVER BAG) AND FRAME ASSEMBLY INSTRUCTIONS 1 X COVER BAG 1 X COVER BAG STICK LOXX SPANNER (IN ZIPLOC BAG ATTACHED Pulley System TO RUNNER ON THE Stop Pin...
Page 2 MISTRAL 27/11/17 MISTRAL CENTER POLE UMBRELLA CORRECT PLACEMENT model shape A (size) MI27RA Round 8'10" 8'3" 6'7" 7'5" 3'8" 2.7 m 2.52 m 2.0 m 2.25 m 1.12 m 6 arms MI30RA Round 10'0" 8'3" 6'5" 8'2" 3'3" 6 arms 3.0 m...
Page 3 MISTRAL 27/11/17 STEP 1 After assembling the base, remove the umbrella from the protective bags and set umbrella down on top of the bag to keep the canopy clean during the assembly. Loosen the fastening wheel(s) on the tube attached to the base, lift the umbrella and slide the pole into the tube. Turn the fastening wheel(s) clockwise until tight to secure the umbrella in the tube.
Page 4 MISTRAL 27/11/17 HOW TO FIT YOUR COVER BAG CORRECTLY CANOPY FOLDING INSTRUCTIONS In order to avoid the canopy fabric from being jammed between the frame components, it is important to pull the fabric out from the umbrella structure by putting a...
Page 5: Care And Maintenance
CARE AND MAINTENANCE Every Woodline shade solution is meticulously engineered to maximize not just their form and functions, but also to make sure that they outlast even the harshest conditions. Each item is crafted from the finest marine grade weather-resistant materials, specifically selected for their ability to endure.

Mi27raMi30raMi20saMi25sa
