MikroTik RBLDFR&R11e-LTE6 Quick Manual

EN - English - Quick Guide:
This device needs to be upgraded to RouterOS v6.46 or the latest stable version, to ensure compliance with local authority regulations!
It is the end users responsibility to follow local country regulations, including operation within legal frequency channels, output power, cabling
requirements, and Dynamic Frequency Selection (DFS) requirements. All MikroTik radio devices must be installed according to instructions.

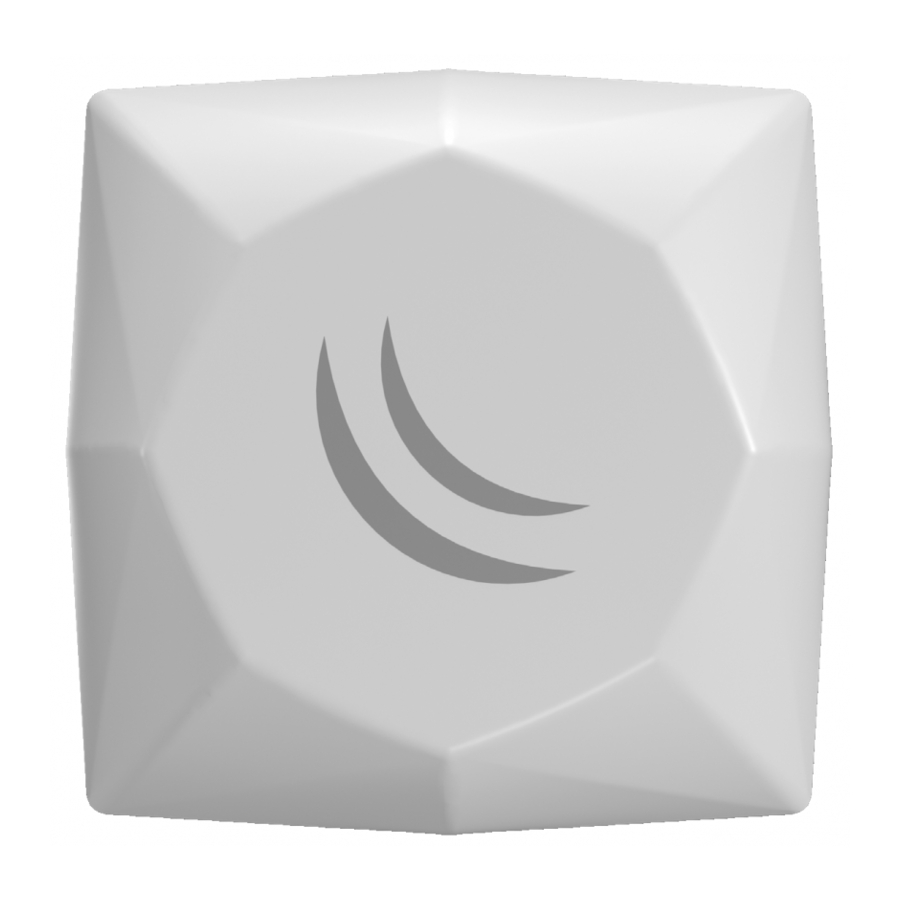

This Quick Guide covers the model: RBLDFR&R11e-LTE6 (LDF LTE6 kit).
This is a wireless network device. You can find the product model name on the case label (ID).
Please visit the user manual page on
Technical specifications, brochures and more info about products
Configuration manual for software in your language with additional information can be found
If you need help with configuration, please seek a
This device accepts input of 24 V DC, 0.38 A power adapter connected to PoE, which is provided in the original packaging of this device. When
using a PoE injector and a different power source, the range is 10-28 V (direct current) .
First steps:
Open the Ethernet port door;
Insert the SIM card into the slot, with the chip facing UP;
Connect the device to the included PoE injector with Ethernet cable to the data+power end;
Connect the data end of PoE injector into the computer;
Connect the power adapter to the PoE injector;
Open the https://192.168.88.1
User name: admin , and there is no password;
Use check for update option to upgrade the device to the latest version. You must have an active SIM card with available data;
The device will reboot;
QuickSet
Connect again and in
Secure your device and set a strong password.
Safety Information:
Before you work on any MikroTik equipment, be aware of the hazards involved with electrical circuitry, and be familiar with standard practices for preventing
accidents. The installer should be familiar with network structures, terms, and concepts.
Use only the power supply and accessories approved by the manufacturer, and which can be found in the original packaging of this product.
This equipment is to be installed by trained and qualified personnel, as per these installation instructions. The installer is responsible for making sure, that the
Installation of the equipment is compliant with local and national electrical codes. Do not attempt to disassemble, repair, or modify the device.
This product is intended to be mounted outdoors on a pole. Please read the mounting instructions carefully before beginning installation. Failure to use the
correc t hardware and configuration or to follow the correct procedures could result in a hazardous situation to people and damage to the system
We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own
risk!
This is a Class A product. In a domestic environment, this product might cause radio interference in which case the user might be required to take adequate
measures.
In the case of device failure, please disconnect it from power. The fastest way to do so is by unplugging the power adapter from the power outlet.
Exposure to Radio Frequency Radiation:
uncontrolled environment. This MikroTik device should be installed and operated no closer than 30 centimeters from your body, occupational user, or the general
public.
Manufacturer: Mikrotikls SIA, Brivibas gatve 214i Riga, Latvia, LV1039.
BG - Български. Бързо ръководство:
Това устройство трябва да бъде надстроено до RouterOS v6.46 или най-новата стабилна версия, за да се гарантира спазването на местните
наредби!
Крайните потребители са отговорни да спазват местните разпоредби, включително работа в рамките на законни честотни канали, изходна
мощност, изисквания за окабеляване и изисквания за динамичен избор на честота (DFS). Всички радиоустройства MikroTik трябва да бъдат
инсталирани съгласно инструкциите.
Това кратко ръководство обхваща модела: RBLDFR&R11e-LTE6 (LDF LTE6 kit).
Това е устройство за безжична мрежа. Можете да намерите името на модела на продукта на етикета на регистъра (ID).
Моля, посетете страницата с ръководството за потребителя на
Или сканирайте QR кода с мобилния си телефон.
Технически спецификации, брошури и повече информация за продуктите
Ръководство за конфигуриране на софтуер на вашия език с допълнителна информация можете да намерите на
Ако имате нужда от помощ при конфигуриране, моля, потърсете
Това устройство приема вход от 24 V DC, 0.38 A захранващ адаптер, свързан към PoE, който се предлага в оригиналната опаковка на това устройство.
Когато използвате PoE инжектор и различен източник на захранване, обхватът е 10-28 V (постоянен ток)
Първи стъпки:
https://mt.lv/um for the full up to date user manual. Or scan the QR code with your mobile phone.
at https://mikrotik.com/products
consultant https://mikrotik.com/consultants
in your web browser;
menu set your country, to apply country regulation settings;
This MikroTik equipment complies with the FCC, IC, and European Union radiation exposure limits set forth for an
at https://mt.lv/help
https://mt.lv/um-bg за пълното актуализирано ръководство за употреба.
на https://mikrotik.com/products
консултант https://mikrotik.com/consultants
https://mt.lv/help-bg
.
.
