MikroTik SXTsq Series Manual

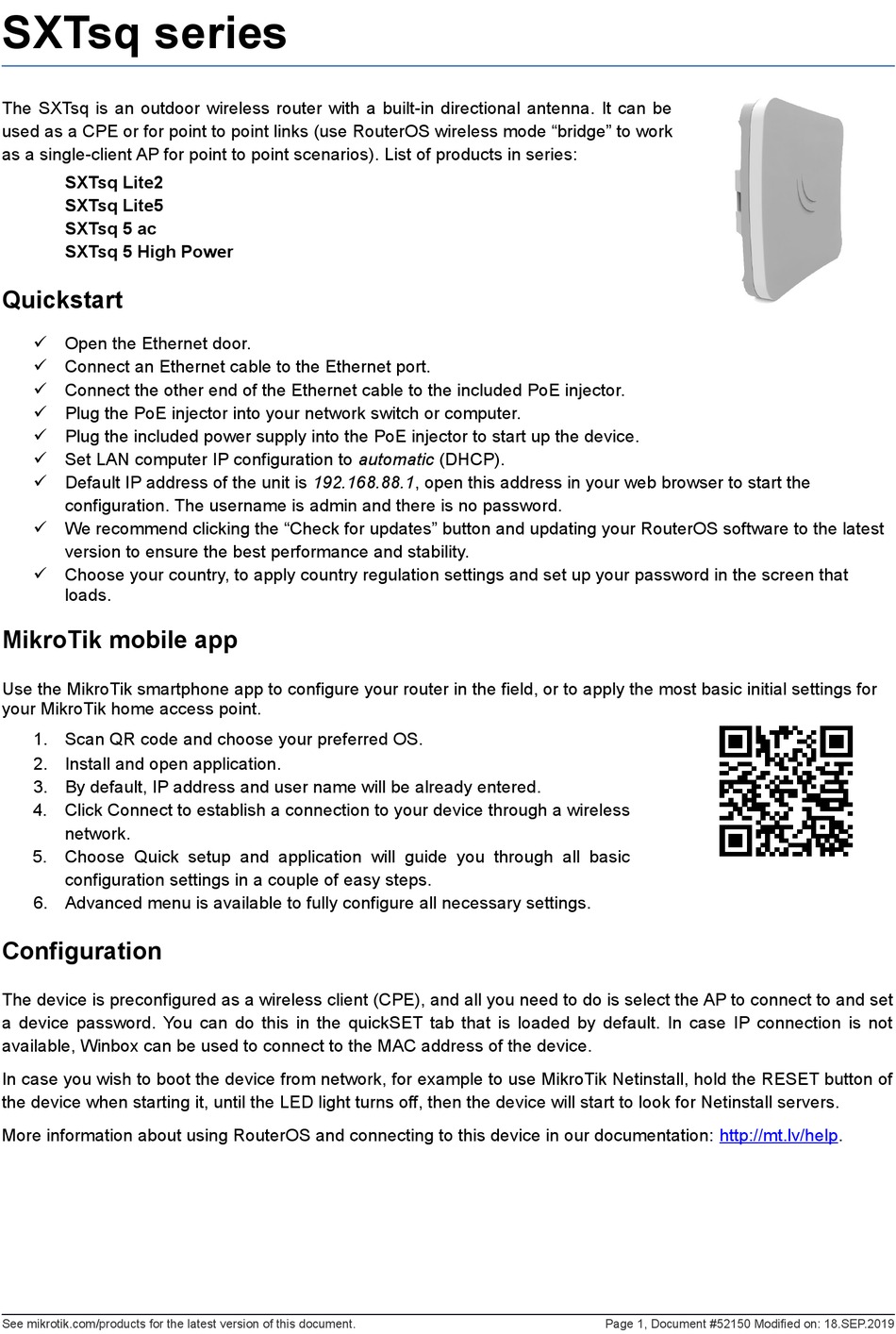

SXTsq series

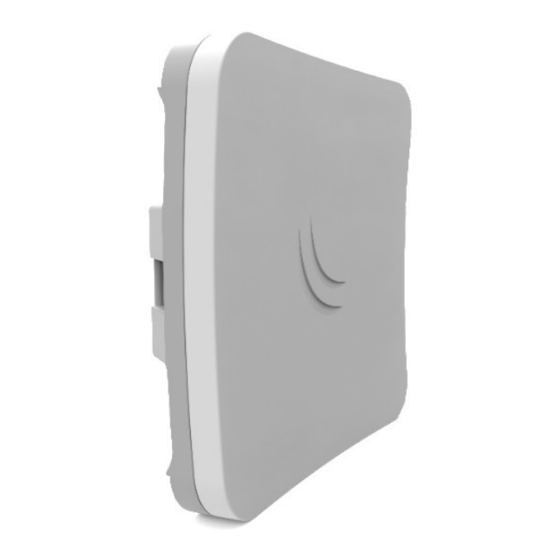

The SXTsq is an outdoor wireless router with a built-in directional antenna. It can be
used as a CPE or for point to point links (use RouterOS wireless mode "bridge" to work
as a single-client AP for point to point scenarios). List of products in series:
SXTsq Lite2
SXTsq Lite5
SXTsq 5 ac
SXTsq 5 High Power
Quickstart
 Open the Ethernet door.
 Connect an Ethernet cable to the Ethernet port.
 Connect the other end of the Ethernet cable to the included PoE injector.
 Plug the PoE injector into your network switch or computer.
 Plug the included power supply into the PoE injector to start up the device.
 Set LAN computer IP configuration to automatic (DHCP).
 Default IP address of the unit is 192.168.88.1, open this address in your web browser to start the
configuration. The username is admin and there is no password.
 We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest
version to ensure the best performance and stability.
 Choose your country, to apply country regulation settings and set up your password in the screen that
loads.
MikroTik mobile app
Use the MikroTik smartphone app to configure your router in the field, or to apply the most basic initial settings for
your MikroTik home access point.
1. Scan QR code and choose your preferred OS.
2. Install and open application.
3. By default, IP address and user name will be already entered.
4. Click Connect to establish a connection to your device through a wireless
network.
5. Choose Quick setup and application will guide you through all basic
configuration settings in a couple of easy steps.
6. Advanced menu is available to fully configure all necessary settings.
Configuration
The device is preconfigured as a wireless client (CPE), and all you need to do is select the AP to connect to and set
a device password. You can do this in the quickSET tab that is loaded by default. In case IP connection is not
available, Winbox can be used to connect to the MAC address of the device.
In case you wish to boot the device from network, for example to use MikroTik Netinstall, hold the RESET button of
the device when starting it, until the LED light turns off, then the device will start to look for Netinstall servers.
More information about using RouterOS and connecting to this device in our documentation: http://mt.lv/help.
See mikrotik.com/products for the latest version of this document. Page 1, Document #52150 Modified on: 18.SEP.2019
