Connect IP40
3
4

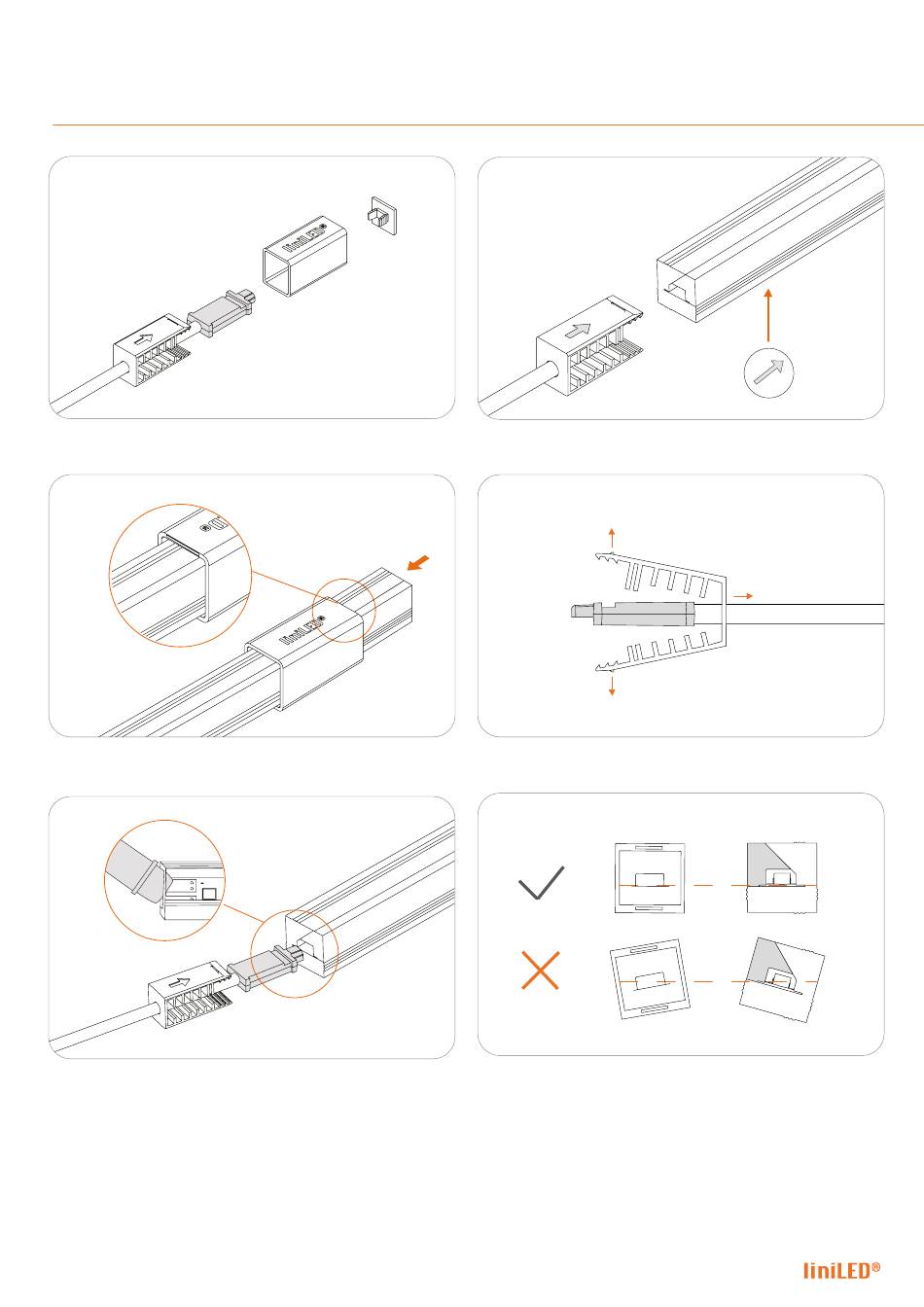

The liniLED® IP40 Connector consists of: End cap (1), Shell (2),
Connector (3), Clamp (4).
Place the shell (2) over the LED strip. Make sure the side with the
smallest opening is put on first.
Slide the connector (3) sideways into the hollow chamber of the
liniLED® LED strip.
13 LED strip manual | liniLED® Side Photon 1200
1
2
Take into account the direction of the arrow on the bottom of the
liniLED® LED strip and allign it with the arrow on the clamp (4).
Side view | Slide the clamp (4) over the cable to reveal the
connector (3).
Front view | Make sure the connector and the PCB are perfectly
horizontally alligned.
