MAULE M-7-260C Airplane Flight Manual

Hide thumbs Also See for M-7-260C:
Table of Contents

Advertisement

Quick Links

Performance That Counts!
2099 Georgia Highway 133 South • Moultrie, GA 31788 •
(229) 985-2045 • Fax: (229) 985-2048 or (229) 890-2402 •
www.mauleairinc.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M-7-260C and is the answer not in the manual?

Questions and answers

Related Manuals for MAULE M-7-260C

Summary of Contents for MAULE M-7-260C

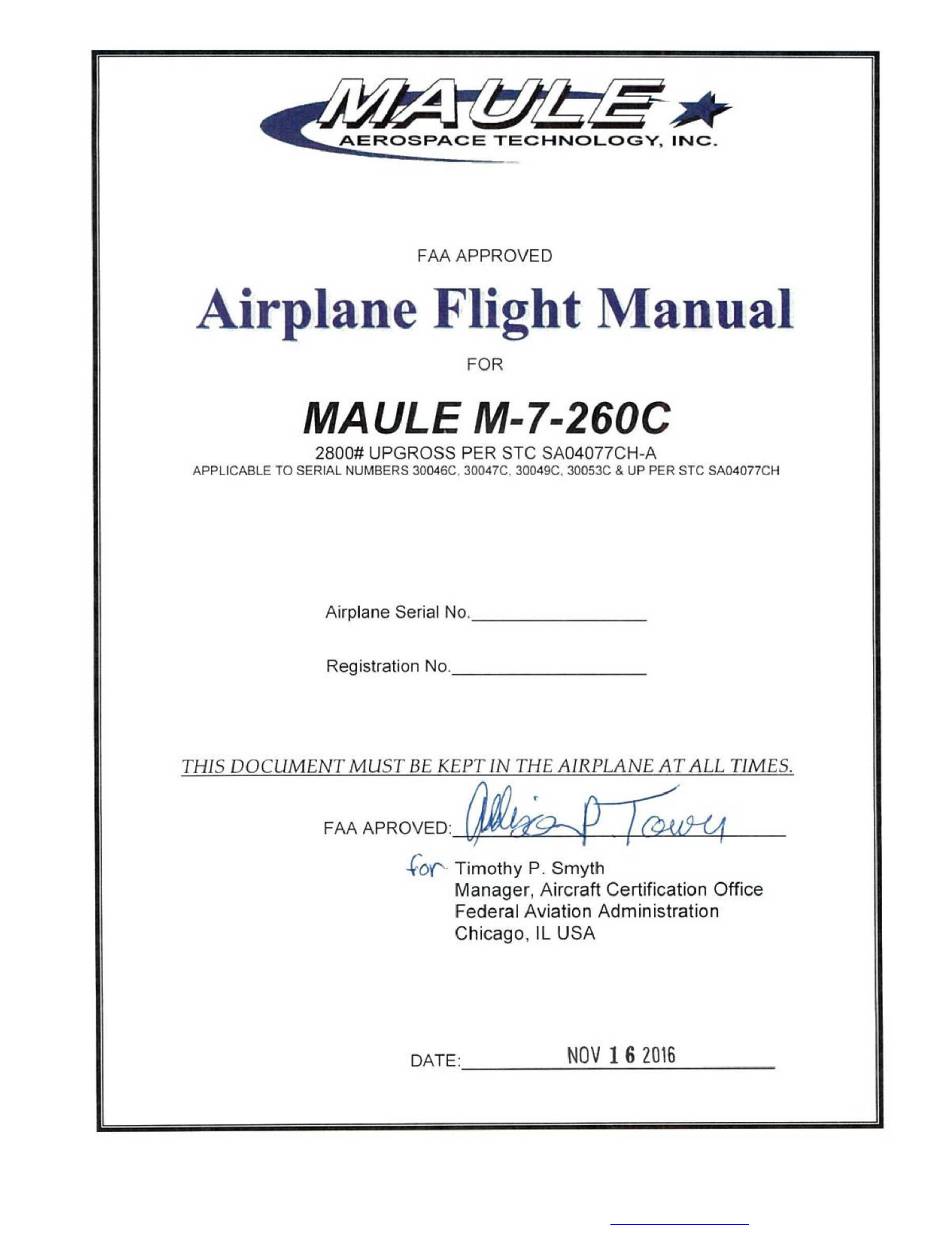

  • Page 1 Performance That Counts! 2099 Georgia Highway 133 South • Moultrie, GA 31788 • (229) 985-2045 • Fax: (229) 985-2048 or (229) 890-2402 • www.mauleairinc.com...

  • Page 2: Log Of Revisions

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH LOG OF REVISIONS REV. DESCRIPTION APPROVAL AND DATE PAGES FAA APPROVED: 8, 14, Corrected per FAA comments dated 10/27/16 15, 16, 19, 26 ________________________ DATE: ________________________ 2 of 29 Rev.

  • Page 3: Log Of Supplements

    DATE Tow Release Assembly installed in accordance with Maule drawing 3196F, Rev. G or later. 17 Jan 2013 Aqua Model 2400 Floats installed in accordance with Maule drawing 9135B, Rev. I or later. 02 Jun 2015 FAA APPROVED DATE: 11-16-16 3 of 29 Rev.

  • Page 4: Table Of Contents

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH Contents LOG OF REVISIONS ..............................2 LOG OF SUPPLEMENTS .............................. 3 MAXIMUM WEIGHT: 2800 Pounds ......................6 CENTER OF GRAVITY LIMITS: ........................6 MANEUVERS: .............................. 6 FUEL CAPACITY: ............................
  • Page 5 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH FAA APPROVED DATE: 11-16-16 5 of 29 Rev. A...

  • Page 6: Maximum Weight: 2800 Pounds

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH GENERAL: NORMAL CATEGORY OPERATION 1.1 MAXIMUM WEIGHT: 2800 Pounds 1.2 CENTER OF GRAVITY LIMITS: +16.2 to +20.5 @ 2800 lbs. +12.5 to +20.5 @ 1700 lbs. or less...

  • Page 7: Airspeed Limits

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH LIMITATIONS 2.1 AIRSPEED LIMITS: All airspeeds are Indicated Airspeeds (IAS). AIRSPEED INDICATOR MARKINGS: Red Radial, (V ) - 156K (180 mph) Yellow Arc, Caution Range - 126 – 156K (145 – 180 mph) Green Arc, Normal Operating Range –...

  • Page 8: Flight Load Factors

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH Engine Instrument Markings: Cylinder Head Temperature: Green Arc - Normal Operating Range, 200°F - 435°F Red Radial - Operating Limit, 500°F Oil Temperature: Green Arc - Normal Operating Range, 140°F - 245°F...
  • Page 9 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH THIS AIRPLANE MUST BE OPERATED AS A NORMAL CATEGORY AIRPLANE IN COMPLIANCE WITH THE OPERATING LIMITATIONS STATED IN THE FLIGHT MAN- UAL AND IN THE FORM OF PLACARDS AND MARKINGS.
  • Page 10 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH On flap control handle: FLAPS / PULL ON / 2 NOTCH / TAKEOFF / 4 NOTCH / LANDING. In rear cabin area: CARGO OR BAGGAGE LIMITATIONS MAX.

  • Page 11: Section Iii - Normal Procedures

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH SECTION III - NORMAL PROCEDURES: 3.1 PREFLIGHT INSPECTION: A. INTERIOR: BAT Switch…………………………………... ON Fuel Gauges…………………………………. CHECK INDICATIONS Auxiliary Fuel Pumps……………………….. ON, THEN OFF (LISTEN TO VERIFY OPERATION) All Electrical Switches……………………….

  • Page 12: Operating Check Lists

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH 20. Wing Main & Aux Fuel Tank Drain………… DRAIN (2) Right Fuselage, Side, Top & Bottom……… INSPECT FOR WRINKLES AS INDICA- TION OF INTERNAL DAMAGE Right Side Static Port……………………….. CLEAR Right Stabilizer……………………………….
  • Page 13 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH ///////////////// FOR A COLD ENGINE (FIRST START OF THE DAY), PLACE MIXTURE TO ////NOTE//// FULL RICH, THROTTLE ¼" OPEN. PRIME WITH BOOST PUMP FOR 3 TO 5 /////////////////// SECONDS.

  • Page 14: Normal Flight Operations

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH Trim Controls………………………………..SET FOR TAKEOFF Flight Controls……………………………….. CHECK FOR FREEDOM AND PROPER TRAVEL Mixture Control…………………………….… FULL RICH Propeller Control……………………………… FULL INCREASE RPM Alternate Air Control....…….…….. PUSH IN AND LOCK Engine Instruments………………………….
  • Page 15 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH Landing Third Notch (optional) 40° Landing Fourth Notch 48° B. RECOMMENDED FLAP SETTINGS: Flap settings are given in number of notches above the fully retracted position, which is handle full down (Normal -7°).
  • Page 16 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH RUDDER TRIM: NOTE: To assure full effectiveness of the Right Rudder Trim: Unlock "T" handle (½ turn left), depress right rudder as you pull "T" handle full out. Lock "T"...

  • Page 17: Door-Off Operation

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH 3.4 DOOR-OFF OPERATION: This aircraft may be operated with either one (not both) of the front doors removed, or when both front doors are installed, with the rear passenger door or rear passenger and baggage doors off.

  • Page 18: Section Iv - Emergency Procedures

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH SECTION IV - EMERGENCY PROCEDURES 4.1 EMERGENCY BASIC RULES: To assist the pilot when an emergency occurs, three basic rules are established which apply to most emergencies occurring while airborne. They should be remembered by each crew member.

  • Page 19: Partial Power Failure During Flight Or After Takeoff

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH If engine does not restart, accomplish EMERGENCY SHUT DOWN Wing Flaps - As Required Master Switch - OFF 4.8 PARTIAL POWER FAILURE DURING FLIGHT OR AFTER TAKEOFF:...

  • Page 20: Structural Damage

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH 4.14 STRUCTURAL DAMAGE: On Takeoff - Abort In flight, maintain controllable airspeed Climb to safe stall recovery altitude Notify appropriate controlling agency, if appropriate. Determine control difficulty airspeed by slowing down while flying straight ahead.

  • Page 21: Section V

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH SECTION V 5.1 WEIGHT AND BALANCE Serial Number______________________ Registration Number______________________ It is the responsibility of the airplane owner and the pilot to insure that the airplane is loaded properly.
  • Page 22 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH PROCEDURE: Place each of the wheels on a scale with the tailwheel elevated to place the airplane in approximately the flight attitude. Place a level on the leveling mark and leveling lug on the bottom of the right wing near the root.
  • Page 23 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH The above empty weight includes unusable fuel of 27.6 lbs. at 24 inches and 8 quarts of oil at minus 34 inches, plus all items of equipment as marked accompanying Equipment Lists.
  • Page 24 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH FAA APPROVED DATE: 11-16-16 24 of 29 Rev. A...
  • Page 25 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH FAA APPROVED DATE: 11-16-16 25 of 29 Rev. A...
  • Page 26 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH FAA APPROVED DATE: 11-16-16 26 of 29 Rev. A...

  • Page 27: Equipment Change - Weight And Balance

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH 5.2 EQUIPMENT CHANGE - WEIGHT AND BALANCE SERIAL NO._________________REG.NO.__________________MODEL__________________ ITEM'S (MAKE & MODEL) WEIGHT MOMENTS Previous Aircraft Empty New Empty Weight ______________________lbs. New Empty Center of Gravity ______________ins.

  • Page 28: Section Vi - Aircraft Servicing, Handling And Maintenance

    It is required that owner's email address, (name and address - optional) and aircraft serial number be sent to OwnerAlert@mauleairinc.com for notification of any Maule Service Let- ters, Service Bulletins and/or Manual updates released for downloading from our website at mauleairinc.com.

  • Page 29: Section Vii - Manufacturer's Data

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-260C 2800# Upgross Per STC SA04077CH SECTION VII - MANUFACTURER'S DATA 7.1 OPTIONAL AND REQUIRED EQUIPMENT LIST - PROVIDED FOR EACH AIRPLANE FAA APPROVED DATE: 11-16-16 29 of 29 Rev. A...
