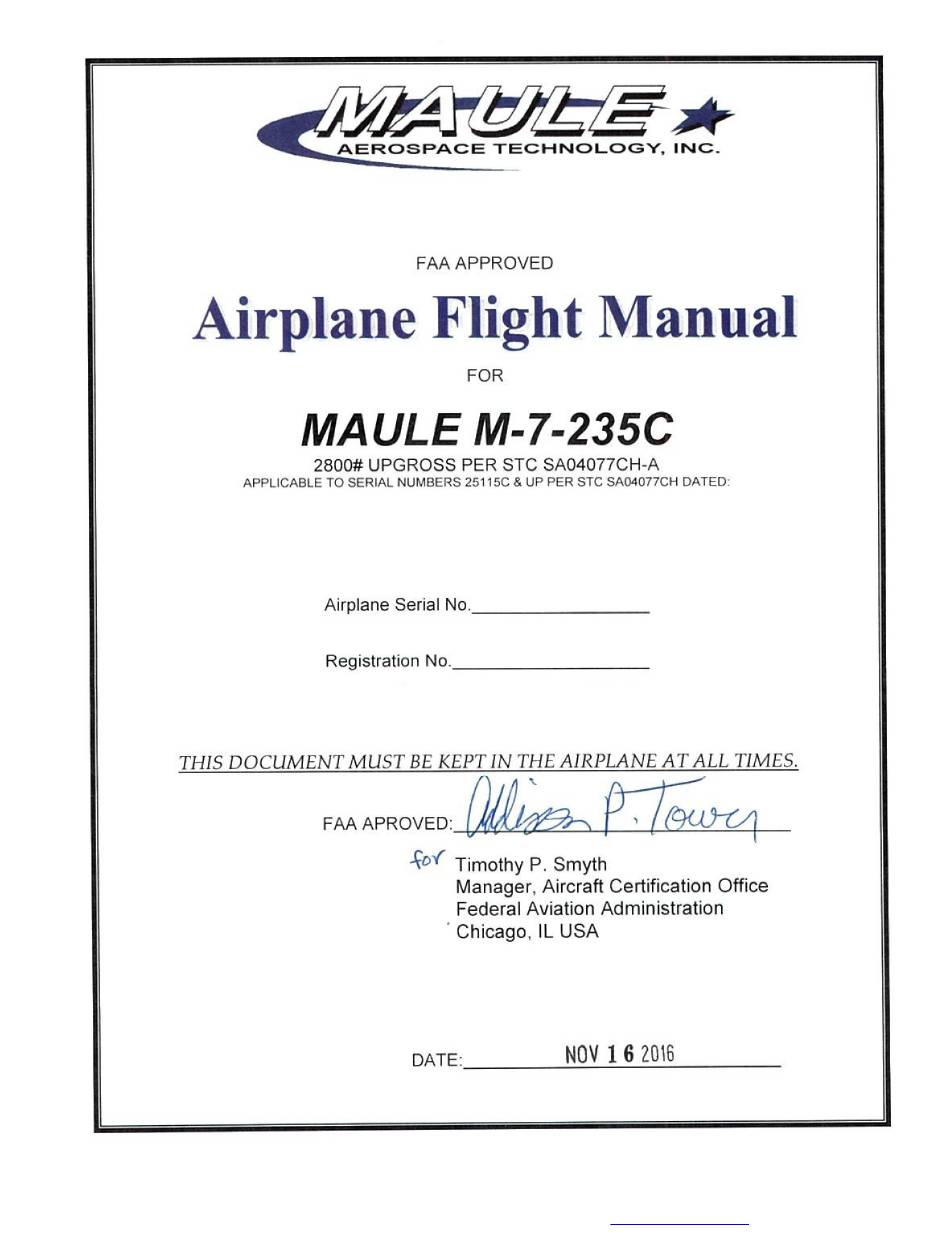

  • Page 1 Performance That Counts! 2099 Georgia Highway 133 South • Moultrie, GA 31788 • (229) 985-2045 • Fax: (229) 985-2048 or (229) 890-2402 • www.mauleairinc.com...

  • Page 2: Log Of Revisions

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH LOG OF REVISIONS REV. DESCRIPTION APPROVAL AND DATE PAGES FAA APPROVED: 10, 12, Corrected per FAA comments dated 10/27/16 14, 15, 16, 19, __________________________ DATE: __________________________...

  • Page 3: Log Of Supplements

    DATE Tow Release Assembly installed in accordance with Maule drawing 3196F, Rev. G or later. 17 Jan 2013 Aqua Model 2400 Floats installed in accordance with Maule drawing 9135B, Rev. I or later. 02 Jun 2015 FAA APPROVED DATE: 11-16-16...

  • Page 4: Table Of Contents

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH Contents LOG OF REVISIONS ............................2 LOG OF SUPPLEMENTS ..........................3 SECTION I - GENERAL: NORMAL CATEGORY OPERATION ..............6 MAXIMUM WEIGHT: 2800 Pounds.....................6 CENTER OF GRAVITY LIMITS: ....................6 MANEUVERS: ..........................6...
  • Page 5 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH FAA APPROVED DATE: 11-16-16 5 of 28...

  • Page 6: Section I - General: Normal Category Operation

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH SECTION I - GENERAL: NORMAL CATEGORY OPERATION 1.1 MAXIMUM WEIGHT: 2800 Pounds 1.2 CENTER OF GRAVITY LIMITS: +16.2 to +20.5 @ 2800 lbs. +12.5 to +20.5 @ 1700 lbs. or less...

  • Page 7: Section Ii - Limitations

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH SECTION II - LIMITATIONS: 2.1 AIRSPEED LIMITS: All airspeeds are Indicated Airspeeds (IAS). AIRSPEED INDICATOR MARKINGS: Red Radial, (V ) - 156K (180 mph) Yellow Arc, Caution Range - 126 – 156K (145 – 180 mph) Green Arc, Normal Operating Range –...
  • Page 8 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH Fuel: 100/100LL Minimum Grade Aviation Gasoline Engine Instrument Markings: Cylinder Head Temperature: Green Arc - Normal Operating Range, 200°F - 435°F Red Radial - Operating Limit, 500°F...

  • Page 9: Flight Load Factors

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH 2.3 FLIGHT LOAD FACTORS: Flaps Fully Retracted: 3.8g Positive to 1.5g Negative Flaps Extended: 1.9g Positive to 0g Negative NOTE: DESIGN MANEUVERING SPEED: The maximum safe airspeed at which full aero- dynamic controls can be applied (V ) is 109K (125 mph).
  • Page 10 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH On the instrument panel at the auxiliary tank transfer switches: FUEL TRANSFER PUMPS PUSH FOR PUSH FOR AUX. QUANT. AUX. QUANT. LEFT RIGHT NOTE: If JPI EDM-900/930 units are installed, the PUSH FOR AUX. QUANT. buttons and placards are not installed.

  • Page 11: Section Iii - Normal Procedures

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH SECTION III - NORMAL PROCEDURES: PREFLIGHT INSPECTION: INTERIOR: BAT Switch…………………………………... Fuel Gauges…………………………………. CHECK INDICATIONS Auxiliary Fuel Pumps……………………….. ON, THEN OFF (LISTEN TO VERIFY OP- ERATION) All Electrical Switches……………………….

  • Page 12: Operating Check Lists

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH STRUT Right Elevator………………………………... CHECK HINGE POINTS Rudder………………………………………... CHECK HINGE POINTS, CONTROL ATTACHMENT & NAV LIGHT Tailwheel……………………………………... CHECK FOR INFLATION, ATTACH- MENTS, REMOVE TIEDOWN Left Elevator…………………………………. CHECK TAB CONTROLS & ALL HINGE POINTS Left Stabilizer…………………………………...
  • Page 13 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH Alternator…………………………………….. CHECK CHARGING Radios & other electrical switches………… AS REQUIRED Parking Brake……………………………….. ENGINE CHECK: Parking Brake……………………………….. ON, IF DESIRED Engine Instruments…………………………. CHECK, IN GREEN ARCS Throttle………………………………………..

  • Page 14: Normal Flight Operations

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH BEFORE LANDING: Seat Belts & Shoulder Harnesses…………. FASTENED Fuel Selector Valve………………………….. ON FULLEST TANK OR BOTH Mixture Control………………………………. FULL RICH Propeller Control…………………………….. FULL INCREASE RPM Flaps………………………………………….. AS REQUIRED Carburetor Air Control.....……………..
  • Page 15 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH CLIMBING: Best Rate of Climb – 78K (90 mph) IAS, flaps @ First Notch (0°) Best Angle of Climb – 65K (75 mph) IAS with flaps set @ Second Notch (24°) Cruise - Fully retracted (-7°/no notches or 0°/ 1...

  • Page 16: Door-Off Operation

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH FUEL SYSTEM MANAGEMENT: Fuel is fed to the engine from the main (inboard) tanks and is controlled by the selector valve on the left kick panel. Auxiliary (outboard) tanks feed their respective main tanks via transfer pumps that are controlled by switches on the instrument panel.

  • Page 17: Section Iv - Emergency Procedures

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH SECTION IV - EMERGENCY PROCEDURES 4.1 EMERGENCY BASIC RULES: To assist the pilot when an emergency occurs, three basic rules are established which apply to most emergencies occurring while airborne. They should be remembered by each crew member.

  • Page 18: Partial Power Failure During Flight Or After Takeoff

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH If engine does not restart, accomplish EMERGENCY SHUT DOWN Wing Flaps - As Required Master Switch - OFF 4.8 PARTIAL POWER FAILURE DURING FLIGHT OR AFTER TAKEOFF: Mixture - RICH Carburetor Air Control –...

  • Page 19: Structural Damage

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH Pilot's Window - OPEN (below 104K (120 mph) 4.14 STRUCTURAL DAMAGE: On Takeoff - Abort In flight, maintain controllable airspeed Climb to safe stall recovery altitude Notify appropriate controlling agency, if appropriate.

  • Page 20: Section V

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH SECTION V 5.1 WEIGHT AND BALANCE Serial Number______________________ Registration Number______________________ It is the responsibility of the airplane owner and the pilot to insure that the airplane is loaded properly.
  • Page 21 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH DETAILED CALCULATIONS OF EMPTY WEIGHT AND EMPTY WEIGHT CENTER OF GRAVITY AS DELIVERED FROM FACTORY: PROCEDURE: Place each of the wheels on a scale with the tailwheel elevated to place the airplane in approximately the flight attitude.
  • Page 22 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH 5. Calculations for determining weight, C.G. and moment: Center of Gravity (inches) = L x T - D i.e., C.G. = _____________ - ____________ = ___________inches.
  • Page 23 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH FAA APPROVED DATE: 11-16-16 23 of 28...
  • Page 24 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH FAA APPROVED DATE: 11-16-16 24 of 28...
  • Page 25 MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH FAA APPROVED DATE: 11-16-16 25 of 28...

  • Page 26: Equipment Change - Weight And Balance

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH 5.2 EQUIPMENT CHANGE - WEIGHT AND BALANCE SERIAL NO._________________REG.NO.__________________MODEL__________________ ITEM'S (MAKE & MODEL) WEIGHT MOMENTS Previous Aircraft Empty New Empty Weight ______________________lbs. New Empty Center of Gravity ______________ins.

  • Page 27: Section Vi - Aircraft Servicing, Handling And Maintenance

    It is required that owner's email address, (name and address - optional) and aircraft serial number be sent to OwnerAlert@mauleairinc.com for notification of any Maule Service Let- ters, Service Bulletins and/or Manual updates released for downloading from our website at mauleairinc.com.

  • Page 28: Section Vii - Manufacturer's Data

    MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE M-7-235C 2800# Upgross Per STC SA04077CH SECTION VII - MANUFACTURER'S DATA 7.1 OPTIONAL AND REQUIRED EQUIPMENT LIST - PROVIDED FOR EACH AIRPLANE FAA APPROVED DATE: 11-16-16 28 of 28...
