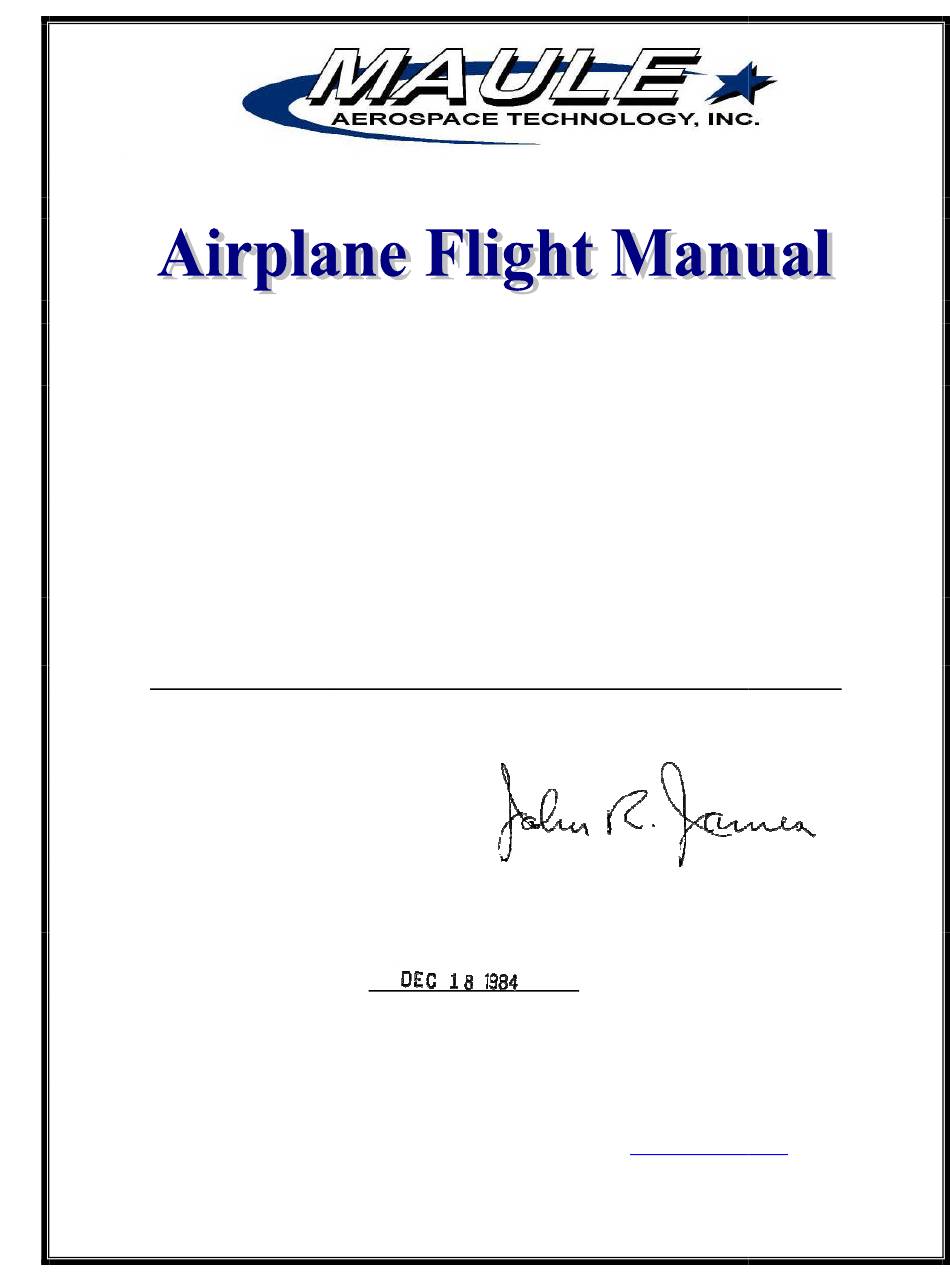

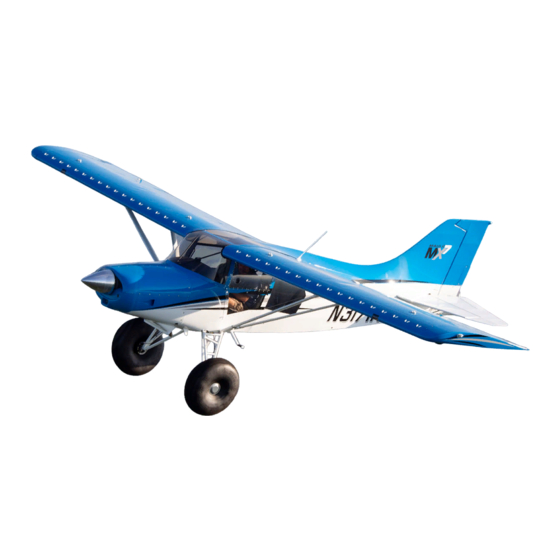

- Page 1 FAA APPROVED MAULE MX-7-180 Airplane Serial No.__________________ Airplane Serial No.__________________ Registration No.____________________ Registration No.____________________ THIS DOCUMENT MUST THIS DOCUMENT MUST BE KEPT IN THE AIRPLANE AT ALL TIMES. BE KEPT IN THE AIRPLANE AT ALL TIMES. FAA APPROVED: ____________________________________ ____________________________________...
- Page 2 MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE MX-7-180 Page i LOG OF REVISIONS REV. DESCRIPTION APPROVAL AND DATE APPROVAL AND DATE PAGES Added Flap Control Placard. Added Flap Control Placard. Changed company headings to read:...
- Page 3 MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE MX-7-180 Page ia LOG OF REVISIONS Deleted Fuel Quantity in Paragraph 1.4 and Deleted Fuel Quantity in Paragraph 1.4 and referred to Fuel Supply Table. Added Fuel referred to Fuel Supply Table. Added Fuel Supply Table.
-
Page 4: Table Of Contents
Contents SECTION I ................................2 GENERAL: NORMAL CATEGORY OPERATION ..................2 MAXIMUM WEIGHT: 2500 Pounds ....................2 CENTER OF GRAVITY LIMITS: ......................2 MANEUVERS: ............................ 2 FUEL CAPACITY: ..........................2 SECTION II ................................. 3 LIMITATIONS ..............................3 AIRSPEED LIMITS: ..........................3 POWER PLANT LIMITS ........................ - Page 5 09/24/87 Installation of Century IIB Autopilot - Maule Installation Manual AK513. 09/21/87 Inst. of S-TEC System 55 Two Axis Autopilot ST-620 (14v) - Maule Dwg 9196A. 04/04/00 (Land) Inst. of S-TEC System 55 Two Axis Autopilot ST-620 (14v) - Maule Dwg 9196A.
- Page 6 MAULE AEROSPACE TECHNOLOGY, INC. SECTION I AIRPLANE FLIGHT MANUAL GENERAL MX-7-180 MAULE Page 1...
-
Page 7: Section I
MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION I AIRPLANE FLIGHT MANUAL GENERAL MX-7-180 MAULE SECTION I GENERAL: NORMAL CATEGORY OPERATION CATEGORY OPERATION MAXIMUM WEIGHT: 2500 Pounds 1.2 CENTER OF GRAVITY LIMITS: CENTER OF GRAVITY LIMITS: +16.7 to +20.5 @ 2500 lbs. -
Page 8: Section Ii
MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION II AIRPLANE FLIGHT MANUAL LIMITATIONS LIMITATIONS MAULE MX-7-180 SECTION II LIMITATIONS 2.1 AIRSPEED LIMITS: All airspeeds are Indicated Airspeeds (IAS). All airspeeds are Indicated Airspeeds (IAS). A. AIRSPEED INDICATOR MARKINGS: AIRSPEED INDICATOR MARKINGS:... -
Page 9: Power Plant Limits
MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION II AIRPLANE FLIGHT MANUAL LIMITATIONS MAULE MX-7-180 2.2 POWER PLANT LIMITS POWER PLANT LIMITS Engine: Lycoming O-360-C1F Engine Limits: 180 hp @ 2700 rpm, Full Throttle Continuous 180 hp @ 2700 rpm, Full Throttle Continuous Propeller: Hartzell Constant Speed HC-C2YR-1BF/F7666A (76") -
Page 10: Flight Load Factors
MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION II SECTION II AIRPLANE FLIGHT MANUAL LIMITATIONS LIMITATIONS MAULE MX-7-180 FLIGHT LOAD FACTORS: Flaps Fully Retracted: 3.8g Positive to 1.5g Negative Flaps Fully Retracted: 3.8g Positive to 1.5g Negative Flaps Extended: 1.9g Positive to 0g Negative... - Page 11 MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION II AIRPLANE FLIGHT MANUAL LIMITATIONS MAULE MX-7-180 PLACARDS: (Cont’d) At the main fuel tank selector At the main fuel tank selector valve on the left kick panel: FUEL SELECTOR VALVE LEFT: * GAL.
-
Page 12: Section Iii
MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION III SECTION III AIRPLANE FLIGHT MANUAL AIRPLANE FLIGHT MANUAL NORMAL NORMAL PROCEDURES MAULE MX-7-180 SECTION III NORMAL PROCEDURES: PREFLIGHT INSPECTION PREFLIGHT INSPECTION: INTERIOR: BAT Switch…………………………………..BAT Switch…………………………………..Fuel Gauges……………………………….…. Fuel Gauges……………………………….…. -
Page 13: Operating Check Lists
MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION III AIRPLANE FLIGHT MANUAL NORMAL MAULE MX-7-180 PROCEDURES PREFLIGHT INSPECTION: (Cont'd) PREFLIGHT INSPECTION: (Cont'd) Right Landing Gear……………………….…. Right Landing Gear……………………….…. CHECK TIRE INFLATION & BRAKE LINE CHECK TIRE INFLATION & BRAKE LINE SECURITY Right Wing &... - Page 14 MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION III AIRPLANE FLIGHT MANUAL NORMAL MAULE MX-7-180 PROCEDURES OPERATING CHECK LISTS: (Cont'd) OPERATING CHECK LISTS: (Cont'd) NOTE: FOR A HOT START, DO NOT PRIME. A HOT ENGINE MAY FLOOD ON A START FOR A HOT START, DO NOT PRIME.
- Page 15 MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL MAULE MX-7-180 OPERATING CHECK LISTS: OPERATING CHECK LISTS: (Cont'd) D. BEFORE TAKEOFF: Fuel Selector………………………………..… Selector………………………………..… ON FULLEST TANK OR BOTH ON FULLEST TANK OR BOTH Flaps…………………….…………………….. Flaps…………………….…………………….. AS DESIRED FOR T.O. (MAX. 24 AS DESIRED FOR T.O.
-
Page 16: Normal Flight Operations
MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION III SECTION III AIRPLANE FLIGHT MANUAL NORMAL PROCEDURES NORMAL PROCEDURES MAULE MX-7-180 NORMAL FLIGHT OPERATIONS: NORMAL FLIGHT OPERATIONS: A. NOTE: FLAP SETTINGS: NOTE: FLAP SETTINGS: The following Flap Settings are available:... - Page 17 MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION III SECTION III AIRPLANE FLIGHT MANUAL NORMAL PROCEDURES NORMAL PROCEDURES MAULE MX-7-180 NORMAL FLIGHT OPERATIONS: NORMAL FLIGHT OPERATIONS: (Cont'd) D. RUDDER TRIM: NOTE: To assure full NOTE: To assure full effectiveness of the Right Rudder Trim: Unlock "T"...
-
Page 18: Door-Off Operation
MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION III SECTION III AIRPLANE FLIGHT MANUAL NORMAL PROCEDURES NORMAL PROCEDURES MAULE MX-7-180 DOOR-OFF OPERATION: OFF OPERATION: This aircraft may be operated with either one (not both) of the front doors removed,... -
Page 19: Emergency Procedures
MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION IV AIRPLANE FLIGHT MANUAL AIRPLANE FLIGHT MANUAL EMERGENCY MAULE MAULE MX-7-180 PROCEDURES SECTION IV EMERGENCY PROCEDURES EMERGENCY PROCEDURES EMERGENCY BASIC RULES: EMERGENCY BASIC RULES: To assist the pilot when an emergency occurs, three basic rules are established which apply to... -
Page 20: Engine Failure After Takeoff Or Forced Landing
MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION IV SECTION IV AIRPLANE FLIGHT MANUAL AIRPLANE FLIGHT MANUAL EMERGENCY PROCEDURES EMERGENCY PROCEDURES MAULE MX-7-180 ENGINE FAILURE AFTER ENGINE FAILURE AFTER TAKEOFF OR FORCED LANDING: Glide - Establish 72K (83 mph) IAS with flaps at 0 Establish 72K (83 mph) IAS with flaps at 0°... -
Page 21: Engine Fire During Flight
MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION IV AIRPLANE FLIGHT MANUAL AIRPLANE FLIGHT MANUAL EMERGENCY PROCEDURES EMERGENCY PROCEDURES MAULE MX-7-180 4.12 ENGINE FIRE DURING FLIGHT: ENGINE FIRE DURING FLIGHT: Accomplish ENGINE EMERGENCY SHUT DOWN Accomplish ENGINE EMERGENCY SHUT DOWN... -
Page 22: Section V
MAULE AEROSPACE TECHNOLOGY, INC. AEROSPACE TECHNOLOGY, INC. SECTION V AIRPLANE FLIGHT MANUAL AIRPLANE FLIGHT MANUAL WEIGHT AND MAULE MAULE MX-7-180 BALANCE SECTION V WEIGHT AND BALANCE Serial Number______________________ Registration Number______________________ Serial Number______________________ Registration Number______________________ Serial Number______________________ Registration Number______________________ It is the responsibility of the airplane owner... - Page 23 MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION V AIRPLANE FLIGHT MANUAL WEIGHT AND MAULE MX-7-180 BALANCE WEIGHT AND BALANCE: WEIGHT AND BALANCE: (Cont'd) DETAILED CALCULATIONS OF EMPTY WEIGHT AND EMPTY WEIGHT CENTER OF DETAILED CALCULATIONS OF EMPTY WEIGHT AND EMPTY WEIGHT CENTER OF...
- Page 24 MAULE MAULE AEROSPACE TECHNOLOGY, INC. SECTION V AIRPLANE FLIGHT MANUAL WEIGHT AND MAULE MX-7-180 BALANCE WEIGHT AND BALANCE: WEIGHT AND BALANCE: (Cont'd) The above empty weight includes unusable fuel of ** lbs. at 24 inches and 8 quarts of oil The above empty weight includes unusable fuel of ** lbs.
-
Page 25: Loading Chart
MAULE AEROSPACE TECHNOLOGY, INC. SECTION V AIRPLANE FLIGHT MANUAL WEIGHT AND MAULE MX-7-180 BALANCE LOADING CHART FORM 50 Page 20... - Page 26 MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION V AIRPLANE FLIGHT MANUAL WEIGHT AND MAULE MX-7-180 BALANCE THIS PAGE INTENTIONALLY THIS PAGE INTENTIONALLY LEFT BLANK FORM 50 Rev. G dated: Page 21...
-
Page 27: Weight And Balance Envelope
MAULE AEROSPACE TECHNOLOGY, INC. AIRPLANE FLIGHT MANUAL SECTION V MAULE MX-7-180 WEIGHT AND BALANCE WEIGHT AND BALANCE ENVELOPE FORM 50 Page 22... -
Page 28: Structural Capacity Chart
MAULE AEROSPACE TECHNOLOGY, INC. MAULE AEROSPACE TECHNOLOGY, INC. SECTION V SECTION V AIRPLANE FLIGHT MANUAL AIRPLANE FLIGHT MANUAL WEIGHT AND WEIGHT AND MAULE MAULE MX-7-180 BALANCE BALANCE STRUCTURAL CAPACITY CHART STRUCTURAL CAPACITY CHART FORM 50 Rev G dated: Page 23... - Page 29 MAULE AEROSPACE TECHNOLOGY, INC. SECTION V AIRPLANE FLIGHT MANUAL WEIGHT AND MAULE MX-7-180 BALANCE SERIAL NO._________________REG.NO.__________________MODEL__________________ EQUIPMENT CHANGE - WEIGHT AND BALANCE ITEM'S (MAKE & MODEL) WEIGHT MOMENTS Previous Aircraft Empty New Empty Weight ______________________lbs. New Empty Center of Gravity ______________ins.
-
Page 30: Aircraft Servicing, Handling And Maintenance
Maule Air (ext. 0) for any Maule Service Letters serial number be registered with Maule Air (ext. 0) for any Maule Service Letters serial number be registered with Maule Air (ext. 0) for any Maule Service Letters or Bulletins released affecting their aircraft.
