DC6210 and DC6410 Series Closers
A14 Heavy Duty Friction Hold Open Parallel Arm
Installation Instructions
2 Installation

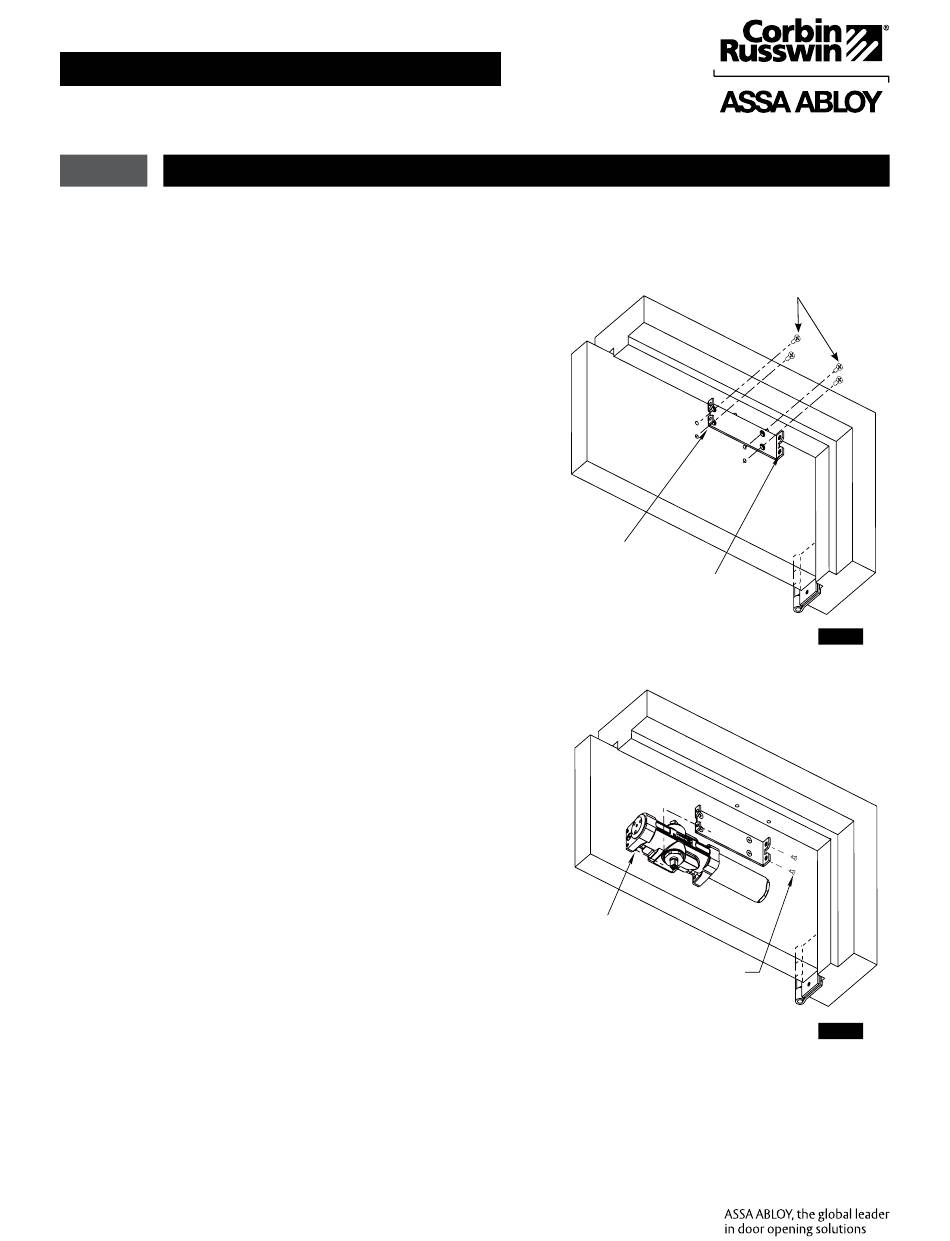

2. Install Closer Bracket. (Figure 3)
3. Mount Closer Body to Closer Bracket.
(Figure 4)
For installation assistance contact Corbin Russwin
1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
Copyright © 2018 Corbin Russwin, Inc., an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written
permission of Corbin Russwin, Inc. is prohibited.
Pin Hole End
Pin Hole End
Holding Pins
1/4-20 x 1/2 OHMS (2)
Holding Pins
1/4-20 x 1/2 OHMS (2)
4
1/4-14 x 1-1/2
OH Self-Drilling (4)
or
1/4-20 x 3/4 OHMS w/Sex
Nuts (4) (M54 Option)
Countersunk Holes
Figure 3
Countersunk Holes
Figure 4
80-9360-6007-152 04/18
