DC6210 and DC6410 Series Closers
A14 Heavy Duty Friction Hold Open Parallel Arm
Installation Instructions
2 Installation

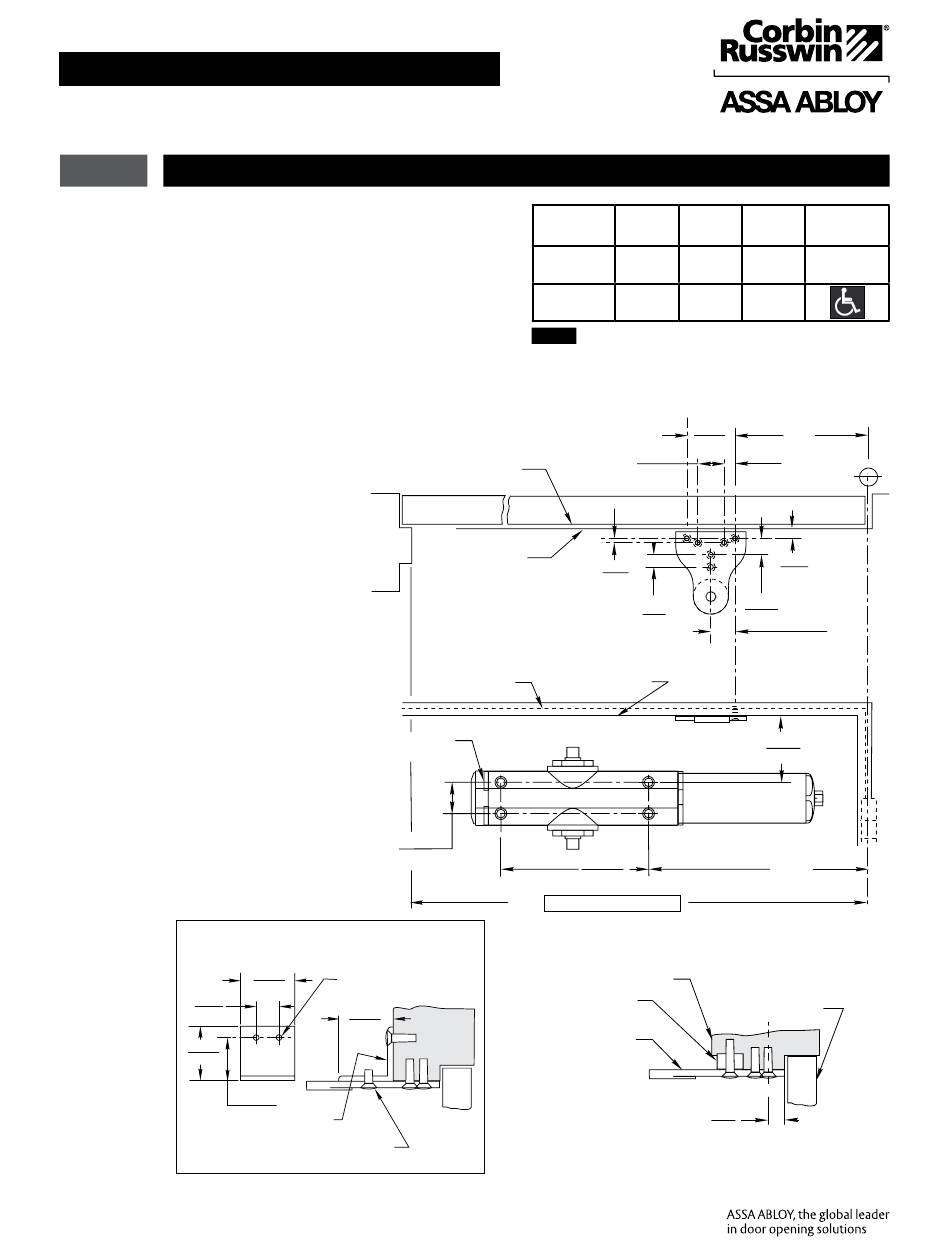

1. Template
Mark and prepare door and jamb (for closer
bracket and arm bracket). Use template and
dimensions charted. (Figure 2)
NOTES:
• Check hand of door. (Figure 1)
• Right Hand Application Shown,
Left Hand Opposite
• Dimensions given in inches (mm). Do Not Scale Drawing.
• Closer must be installed in a true horizontal plane to
ensure proper closer performance.
• Friction Hold Open arms are handed and not reversible.
See handing marks on soffit plate.
ANGLE SUPPORT BRACKET
1
(25.4)
2
(50.8)
NOTE: ANGLE SUPPORT MUST BE
DRILLED AND TAPPED IN THE FIELD
For installation assistance contact Corbin Russwin
1-800-543-3658 • techsupport.corbinrusswin@assaabloy.com
