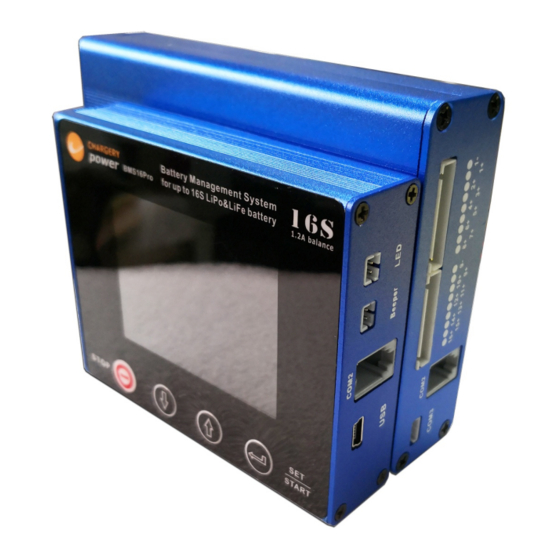

BMS16T
for 2S-16S LiPo/Li-ion, LiFe & LiTO
Low power consumption
High accuracy
2.8‖ TFT LCD display
Programmable
Chargery BMS16T
Battery Management System for 2S-16S LiPo/Li-ion, LiFe & LiTO
Low power consumption, High accuracy, 2.8‖ TFT LCD display, Programmable
Owners Manual
V 4.1
Main Unit Software Version 4.0
LCD Unit Software Version 4.01
Revised : 6/4/2020
Advertisement
Table of Contents
Related Manuals for Chargery BMS16T Series
Summary of Contents for Chargery BMS16T Series
- Page 1 2S-16S LiPo/Li-ion, LiFe & LiTO Low power consumption High accuracy 2.8‖ TFT LCD display Programmable Chargery BMS16T Battery Management System for 2S-16S LiPo/Li-ion, LiFe & LiTO Low power consumption, High accuracy, 2.8‖ TFT LCD display, Programmable Owners Manual V 4.1 Main Unit Software Version 4.0...
- Page 2 & operational tips. Overview: The Chargery BMS16T is designed especially for LiPo, LiFe and LiTo battery packs applied to Energy Storage Systems and Electrical Vehicles including E-Motorcycle, E-Scooter and so on. The unit can measure or detect the battery voltage, cell voltage, charge & discharge current, battery temperature, and battery SOC (State of Charge), with the information displayed on the TFT color LCD screen.
-
Page 3: Table Of Contents
Charge and discharge relay lectotype for BMS16T ..................31 Chargery DC Contactor Specifications ....................... 32 Cold pressing copper tube terminal Specifications ................34 Chargery DC Contactor (DCC) configuration in Common and Separate Port ......35 Current Calibration (Shunt) ........................... 36 Firmware Upgrades via USB Port......................... 38 Update BMS main unit ............................. - Page 4 Supplemental: Single Relay with 2 channel Opti-Coupler ................. 56 Supplemental：Equipment Voltage Calibration ....................57 Supplemental: Reference Documents & Video links ..................59 Supplemental: BMS power consumption ......................60 Frequent questions ..............................61 Warranty and Service ............................... 63 www.chargery.com page 4 total 63...
-
Page 5: Safety Notes
Copyright@Chargery Power Co., Ltd. All rights reserved. Without prior written consent by Shenzhen Chargery Power Co., Ltd, any units or individual extract and copy parts or entire contents of this manual, and transmission in any form is illegal and strictly prohibited. -
Page 6: Specifications
Under voltage protection Over current protection when charge or discharge High temperature protection Low temperature protection (on LCD unit V3.03) Over differential cell voltage protection in discharge Over differential battery temperature protection Under SOC protection www.chargery.com page 6 total 63... -
Page 7: Version History
Optimize over charge protection, don’t cut off charge when cell voltage V1.19 difference over setup. V1.20 optimize current detection V1.21 add current mode send out V1.22 Add SOC send out Add cell internal resistance measurement V4.0 Add cell internal resistance send tout Optimize SOC calculation www.chargery.com page 7 total 63... -
Page 8: Update / Change Log
13. If using external adapter, the BMS can support 2S-8S battery, the external voltage range is 15-30V. 14. The BMS uses one Current Shunt to detect Charge & Discharge current per battery pack. The BMS controls Charge & Discharge relays separately www.chargery.com page 8 total 63... -
Page 9: Order Information
Warning Beeper, 300mm monitor battery temperature. Current sensor wire, 600mm, Communication wire (4.5 COM3 Data line: connect to monitor charge /discharge meters), connect main unit to external device, send out all current LCD unit data www.chargery.com page 9 total 63... -
Page 10: Current Shunt
All supplied shunts are voltage and current calibrated prior to delivery. If you exchange the shunt, 75mV or less is recommended, and need calibrate again. www.chargery.com page 10 total 63... -
Page 11: Optional Accessories
The Relay Delay Time board is to avoid a surge current when start to charge or discharge. If using a CHARGERY DCC, the delay board is not required, because it has a Built-in the surge suppressing circuit. For other SSR or mechanical relay, please consider the surge current seriously and make a suitable plan. -
Page 12: Cold Pressing Copper Tube Terminal
LiPo & LiFe, LiTo Battery Management System BMS16T V4.1 Cold pressing copper tube terminal When you order the DCC, the tube terminal and bolts will be delivered with DCC. DCC model DCC-100HB DCC-200HB DCC-300HB DCC-600HB Terminal model 10-6 25-6 50-8 50-8 www.chargery.com page 12 total 63... -
Page 13: Operational Description
The BMS16T can be used with any lithium battery charger, when any cell is over charged, the BMS16T will open the charge relay to cut off charge, if used with a CHARGERY charger, the charge control is handled by connecting the CHARGERY charger to the BMS16T on COM1, when any cell reach OVP, the charge current will decrease automatically to prevent any cell damage. -
Page 14: Special Features
Sleep Mode to save energy consumption, Charge / Discharge are disabled and the LCD back light is turned off. Press any key to resume normal work mode. 18. LCD back light ON time can be programmed to save energy, when it is OFF, press any key to activate. www.chargery.com page 14 total 63... -
Page 15: Interface
LiPo & LiFe, LiTo Battery Management System BMS16T V4.1 Interface BMS16T Main Module BMS16T Display Module www.chargery.com page 15 total 63... - Page 16 The COM1 port (black connector) is connected to external device such as COM1 Charger. If connect to Chargery charger, BMS16T can control charge current to shorten charge time The COM2 (gray connector) port is connected BMS main unit to display...
-
Page 17: Hardware Setup
LiFe 2.00V will force discharge to cut off LiTO 1.50V LiPo ℃ Over / Under temperature, BMS16T will cutoff the LiFe 80℃ Battery temperature charge and discharge LiTO Next Step is to configure the Software. www.chargery.com page 17 total 63... -
Page 18: Software Configuration
UP or DOWN to change the value. Press SET/START button quickly to confirm the change. After finishing all of the setup, press SET/START for 3 seconds to save & quit the setup menu. When you quit setup mode, BMS16T will save all the parameters till next change. www.chargery.com page 18 total 63... -
Page 19: Parameters Setting
Balance Stop Diff Voltage Balance in Charge ON means Balance start during charge, OFF disable. Balance in Discharge ON means Balance start during discharge, OFF disable. Balance in Storage ON means Balance start during storage, OFF disable. www.chargery.com page 19 total 63... - Page 20 One Li-on (NMC) cell, rated voltage is 3.6V, if capacity is 10AH, battery power is 36WH One LiPO cell, rate voltage is 3.7V, if capacity is 10AH, battery power is 37WH One LiFe cell, rate voltage is 3.25V, if capacity is 10AH, battery power is 32.5WH www.chargery.com page 20 total 63...
- Page 21 If wh calculate based on other voltage, the WH will be lower or higher, it is bad. Some battery label has WH and AH, if without WH, WH calculation based on AH battery rated voltage is suggested, Ah and rated voltage must be found in battery datasheet. www.chargery.com page 21 total 63...
-
Page 22: Operating Guideline
LiPo & LiFe, LiTo Battery Management System BMS16T V4.1 Operating guideline Installation video: http://chargery.com/Video/BMS24T_C10325_operation_instructions.mp4 INSTRUCTIONS on Navigating Menu Press SET/START button for 3 seconds enter into Program Setup interface. Press UP/DOWN button to select the item, press SET/START quickly to make the value flash, and press UP/DOWN to change the value. - Page 23 When any warning events are triggered, Press UP or DOWN, you can check which cell triggered the warning events (over charge or over discharge), the voltage will be recorded till next warning. See figure www.chargery.com page 23 total 63...
- Page 24 But the yellow bar is displayed means the cell is in balancing. See ―Balancing Indicator‖ on page 28. COM2 is to connect to charger if you have CHARGERY charger, COM3 is to connect to external device. www.chargery.com page 24 total 63...
-
Page 25: Soc Calibration
When you turn off BMS, the actual SOC, WH and AH will be saved, and displayed when you turn on BMS. This feature avoids re-calibrating SOC. As Charge and Discharge cycles increase, the battery capacity will be decreased, that is to say, the actual www.chargery.com page 25 total 63... - Page 26 ―over charge protection (P) voltage‖ to 4.0V (LiPo), and ―over discharge protection (P) voltage‖ (LiPo) to 3.3V, means the battery SOC will be used from 10% to 90%. This will extended the battery pack life-cycle and make the system safer in general. www.chargery.com page 26 total 63...
-
Page 27: Balancer
After the BMS display is connected and configured with the cell voltages, reenter into program setup menu to enable balance. Although the balancing current per cell is larger than some other brand BMS', the Chargery BMS16T uses temperature protection prevent the BMS from overheating and has over current protection for each cell. -
Page 28: Balancing Indicator
Example below. Balancing in Discharge, cell 5 and cell 12 are Balancing in Charge, cell 1,6,10,11 and in balancing. cell 16 are in balancing. Balancing in Storage, except cell 11, other cells are in balancing. www.chargery.com page 28 total 63... -
Page 29: Cell Internal Resistance (Impedance) Test
―good‖ or ―bad‖ cell. Ideally, each cell in series should have same internal resistance, if the difference of cell internal resistance is very large, the higher resistance cell must be ―bad‖, and caused large cell voltage difference, then shorten the total battery life. www.chargery.com page 29 total 63... - Page 30 You can record the cell internal resistance, and compare new cell internal resistance with the cell used for several months, then you can find which cell has the highest internal resistance. www.chargery.com page 30 total 63...
-
Page 31: Charge And Discharge Relay Lectotype For Bms16T
SSR can be installed on the battery positive or negative, if is not isolated, the SSR must be installed on the battery negative. Chargery DCC (DC contactor) can be fit with Chargery BMS, it is designed special for the BMS. www.chargery.com... -
Page 32: Chargery Dc Contactor Specifications
BMS16T V4.1 Chargery DC Contactor Specifications Chargery DC Contactor is designed special fit with Chargery BMS. One DCC can be used in common port, and get both charge & discharge signal, When any cell is over charged, or over discharged or DCC over temperature, the DCC will be open and stop charging or discharging. - Page 33 LiPo & LiFe, LiTo Battery Management System BMS16T V4.1 Chargery DCC installatio details. Warning: when install Lugs, both lugs don’t be short circuit or touch the DCC case at the same time. DCC MODEL L/mm W/mm T/mm D/mm Bolt Size...
-
Page 34: Cold Pressing Copper Tube Terminal Specifications
Cold pressing copper tube terminal Specifications DCC model DCC-100HB DCC-200HB DCC-300HB DCC-600HB Terminal Model 10-6 25-6 50-8 D±0.2mm d±0.2mm G±0.3mm L±1.5mm L1±1mm W±1mm ￠±0.5mm AWG1/0 = 0 AWG2/0 = 00 Cable AWG AWG5 (16.8mm AWG2 (33.6mm (53.5mm (67.5mm www.chargery.com page 34 total 63... -
Page 35: Chargery Dc Contactor (Dcc) Configuration In Common And Separate Port
Compare with SSR (Solid State Relay), the Chargery DCC is bi-directional and can handle up to 600A current at 100V DC. ONE Chargery bi-directional DCC can be used in common port, and receive both HV and LV cut off signal. If not using the Chargery DCC, you would require two SSR's or two relays, which would increase power consumption and have a higher cost. -
Page 36: Current Calibration (Shunt)
BMS16T V4.1 Current Calibration (Shunt) Current calibration is only required if you change the Shunt from the one supplied by Chargery which are calibrated at the factory. Use shunts which are 75mv or lower only. Press SET/START for 3 seconds to enter into Program Setup and find the Current Calibration, you can calibrate the current to improve the measurement accuracy. - Page 37 Current calibration is not suggested. We calibrate shunt and current before delivery. You only need to re- calibrate if you change shunts from the ones supplied by Chargery. If the current is not accurate, the WH and AH will not be accurate. SOC reading will also be wrong.
-
Page 38: Firmware Upgrades Via Usb Port
Generally the USB driver is not needed for the BMS8T, 16T and 24T. If it is needed, please install USB driver on PC from the Chargery downloads. Main unit V4.0 cannot communicate with a lower version LCD, such as V3.03, it means, when press START button on LCD unit, the BMS WON’T start. -
Page 39: Update Bms Main Unit
The file should be .hex file. Such as BMS16T_V4.00_APP.hex, it is for BMS16T LCD model. Click Update button start to update, the update progress bar will be on PC and LCD, update complete www.chargery.com page 39 total 63... - Page 40 After BMS main unit and LCD unit updated to V4.0, please enter into program setup interface and press UP or DOWN choose Default Settings, then choose Enable press START button, resume all parameters settings as default. As below. Resume default settings in factory BMS16T-300 Main unit firmware version www.chargery.com page 40 total 63...
-
Page 41: Typical Cell Connections
For 7S or less configuration allows for external to power the BMS. The BMS requires 13-60 VDC @ 3A. Connect 8S to socket 1 and remaining cells connect to socket 2 separately. See the 12S battery example shown below: www.chargery.com page 41 total 63... -
Page 42: Typical 16S Configuration
LiPo & LiFe, LiTo Battery Management System BMS16T V4.1 Typical 16S configuration www.chargery.com page 42 total 63... -
Page 43: 4S + 4S + 6S With Single Bms16T Configuration Example
LiPo & LiFe, LiTo Battery Management System BMS16T V4.1 4s + 4s + 6S with single BMS16T configuration example. www.chargery.com page 43 total 63... -
Page 44: Nissan Leaf Battery 2P14S With Bms16T Configuration Example
LiPo & LiFe, LiTo Battery Management System BMS16T V4.1 Nissan Leaf battery 2P14S with BMS16T configuration example www.chargery.com page 44 total 63... -
Page 45: Separate Port Configuration Example-With Chargery Dcc
BMS16T V4.1 Separate Port Configuration example—with Chargery DCC Chargery DCC can connect to BMS16T directly, do not need install delay time board or others. The Charge DCC should be 1.25 times the maximum amperage provided by the charging devices. The Discharge Relay should be 1.25 times the maximum amperage draw expected. -
Page 46: Separate Port Configuration Example-With Mechanical Relay
NOTE ! Fuses, DC Breakers are not shown. Please use Best Practices and install appropriate fuses and breakers according to local codes and other guidelines. ATTENTION ! The relay on above Configuration is bi-directional or uni-directional SSR/mechanical relay. But SSR must be isolated. www.chargery.com page 46 total 63... -
Page 47: Common Port Configuration Example-With Chargery Dcc
LiPo & LiFe, LiTo Battery Management System BMS16T V4.1 Common Port Configuration example—with Chargery DCC On this configuration, both Charge & Discharge cut off is realized by one Charger DC contactor, and do not need install relay delay time board. 100A – 600A 100V bi-directional DCC is available, only 11mA power consumption from battery when it is turned on. -
Page 48: Common Port Configuration Example-With Mechanical Relay
Fuses, DC Breakers are not shown. Please use Best Practices and install appropriate fuses and breakers according to local codes and other guidelines. The relay on above Configuration is bi-directional or uni-directional SSR/mechanical relay. But must be isolated. www.chargery.com page 48 total 63... -
Page 49: Relay Delay Time Board (Optional Accessory)
When a Motor and many Inverters are started, the initial surge is very large. In order to restrict the current surge, CHARGERY designed this special delay board, it can work with CHARGERY BMS16T, BMS16, BMS16T and BMS24T and so on. - Page 50 Please close all other switcher's on other devices, finally turn on the switcher on the board and the battery will start to charge or discharge. 12V: The resistor value should be over 0.24 OHM 24V: The resistor value should be over 0.24 OHM 48V: The resistor value should be over 0.48 OHM ---- www.chargery.com page 50 total 63...
-
Page 51: Relay Delay Board Implementation Examples
BMS16T V4.1 Relay Delay Board Implementation Examples: If using a CHARGERY DCC, the delay board is not needed (connection diagram is on page 47). The Small Relay in this example is a simple automotive "Make & Break relay". The simplest and most common form of relay. -
Page 52: Relay Delay Board Implementation Examples Con't
LiPo & LiFe, LiTo Battery Management System BMS16T V4.1 Relay Delay Board Implementation Examples con't. If use CHARGERY DCC, do not need install the board (connection diagram is on page 45). ATTENTION ! The charge relay on above Configuration is bi-directional or uni-directional SSR/mechanical relay. -
Page 53: Related Parts
600A max. charge/discharge BMS24T For 2S-24S, 1.2A balance current per cell 600A max. charge/discharge C3060 AC charger for 1S-8S battery pack 1-60A charge, 1500W max. C10325 AC charger for 4S-24S battery pack 1-25A charge, 1500W max. www.chargery.com page 53 total 63... -
Page 54: Total Solution On E-Vehicle Application
Total solution on E-Vehicle application If using the Chargery charger, the charge relay can be ignored, BMS16T can communicate with charger, when any cell is over charged, BMS will send a signal to charger, the charger will decrease charge current till the cell voltage within safe values. -
Page 55: Supplemental: Solid State Relay Supplemental Information
If it is not isolated, please install it on battery negative, connect between Load inverter/charger negative and current shunt. If use CHARGERY DCC, one DCC is enough for the Common Port application (connection diagram is on page 47) www.chargery.com... -
Page 56: Supplemental: Single Relay With 2 Channel Opti-Coupler
(-) from the battery but from the converter only. Thanks to user "Onemorebattery" from Diysolarforum.com. Chargery DCC solved the problem, one DCC uses in a Common Port configuration, and does not need the relay board. Detailed connection is on page 47. -
Page 57: Supplemental：equipment Voltage Calibration
Inverter/Charger sees, so that it cuts off exactly at the voltage desired "at the battery terminal end". So IF you want the LVD to kick on when the cells reach 2.75VDC ea / 22.0 VDC for the www.chargery.com page 57 total 63... - Page 58 Inverter/Charger to manage on an ongoing basis. Continually using the BMS to do this function can actually affect the BMS negatively and may even result in damage, it is not what they are designed to do. www.chargery.com page 58 total 63...
-
Page 59: Supplemental: Reference Documents & Video Links
BMS current calibration by power supply https://www.youtube.com/watch?v=bCM_cau0TD0 Chargery BMS update https://www.youtube.com/watch?v=zsMADtoNi1c Chargery BMS update firmware on Main & LCD modules to v4.0 https://www.youtube.com/watch?v=4nrYUm1uhAs Chargery BMS. Package and settings walk-trough. https://www.youtube.com/watch?v=7ggsGRL8VC0 Configure 16s LiFePo4 to 48V battery---Connecting balancing leads to battery and Capacity test. -
Page 60: Supplemental: Bms Power Consumption
200A 300A 600A voltage BMS drain current from battery (mA) 84.25 42.5 48.75 67.2V 28.25 Chargery DC Contactor power consumption at 12V driven voltage when it is closed. DCC-100HB DCC-200HB DCC-300HB DCC-600HB 11mA 11mA 11mA www.chargery.com page 60 total 63... -
Page 61: Frequent Questions
When current displayed is ZERO, that is to say, the battery is not charging or discharging, press STOP button to make the BMS enter into sleep mode to save battery energy. If you need wake up the BMS, please press UP, DOWN or START Button. www.chargery.com page 61 total 63... - Page 62 Show timeout during updating, Download the correct firmware according to product model and save to your PC, from http://chargery.com/update.asp Update tool software version must be v1.03 or greater. Always use the most current. Connect BMS main unit or LCD unit to the PC by using the provided USB cable.
-
Page 63: Warranty And Service
BMS16T V4.1 Warranty and Service Chargery Power Co., Ltd. as manufacture of power system warrants its BMS16T and current Sensor to be free of defects in material and workmanship. This warranty is effective for 12 months from date of purchase. If within the warranty period the customer is not satisfied with the products performance resulting from a manufacturing defect, the accessory will be replaced or repaired.
