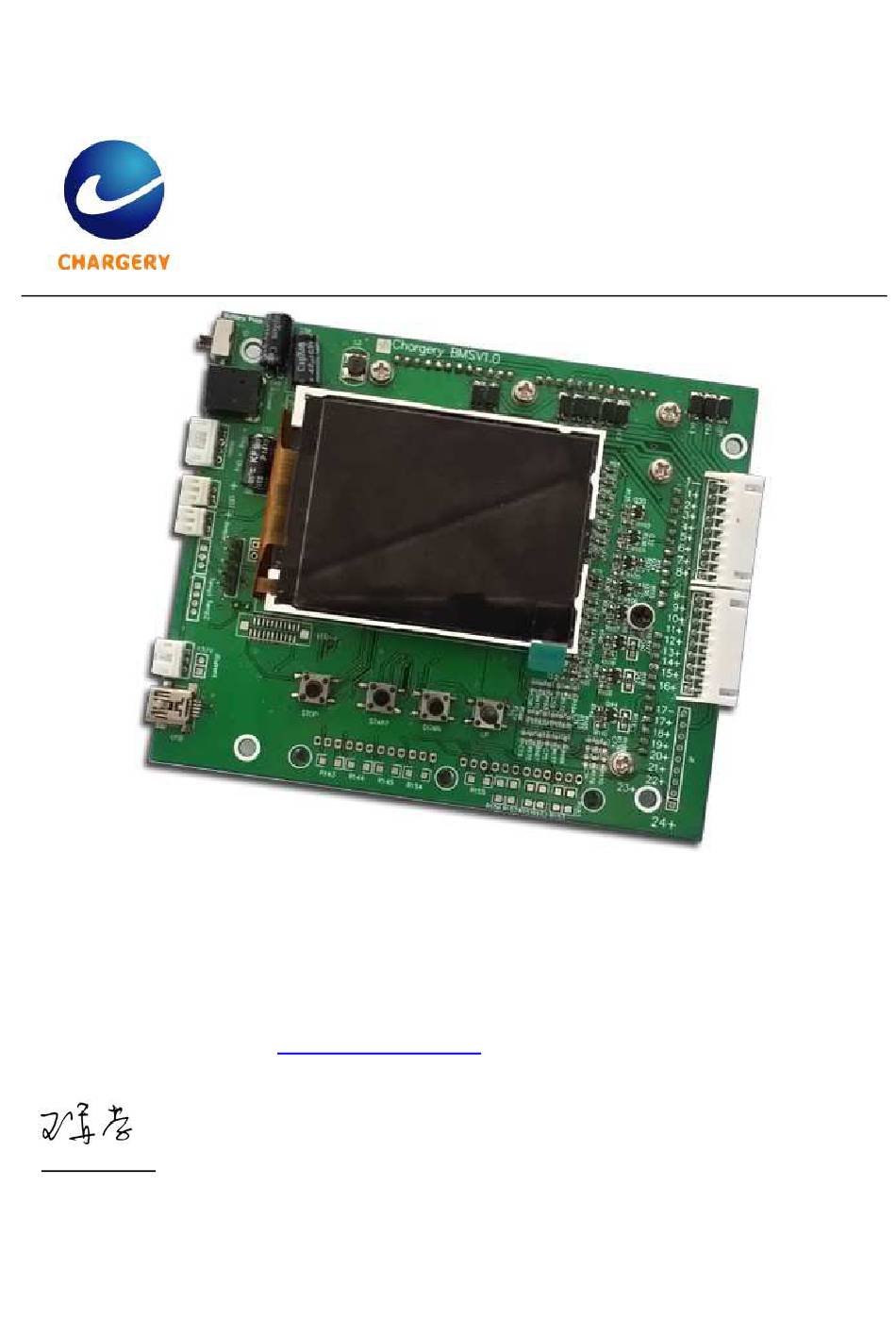

BMS16Pro
for 2S-16S LiPo & LiFe
Low power consumption
High accuracy
2.8" TFT LCD display
Programmable
T
hanks for your purchasing the BMS16Pro for your vehicle.
R
ead the ENTIRE instruction manual to become familiar with the features/functions of the device
before operating.
F
eel free to send an email to
jasonwang3a@163.com
or call at 86 755 2643 6165 should you have
any questions and suggestions.
Jason Wang

Advertisement

Table of Contents
loading

Related Manuals for Chargery BMS16Pro

Summary of Contents for Chargery BMS16Pro

  • Page 1 Low power consumption High accuracy 2.8” TFT LCD display Programmable hanks for your purchasing the BMS16Pro for your vehicle. ead the ENTIRE instruction manual to become familiar with the features/functions of the device before operating. eel free to send an email to jasonwang3a@163.com...

  • Page 2: Safety Notes

    LiPo & LiFe Battery Management System BMS16Pro V1.0 Chargery BMS16Pro is designed special for LiPo & LiFe battery pack applied to storage energy system and Electrical Vehicle including E-Motorcycle, E-Scooter and so on. The unit can measure or detect the battery voltage, cell voltage, charge &...

  • Page 3: Protection Functions

    13. Supports upgrading the firmware program by USB port. 14. BMS16Pro provide users the maximal flexibility, key parameters can be programmed. 15. BMS16Pro display battery SOC or called battery gauge similar with car dashboard. Cell count, battery pack voltage and battery gauge (%) is displayed simultaneously.

  • Page 4: Program Setup

    LiPo & LiFe Battery Management System BMS16Pro V1.0 Alternate External or battery pack to power BMS16Pro. If select all cells power the unit, the battery pack must be 8S to 16S LiFe or LiPo. But if power by external power supply, Power Selector BMS16Pro can do 2S-16S LiPo or LiFe battery pack.
  • Page 5 Press SET button shortly confirm the change. After finish all setup, press SET for 3 seconds quit the setup menu. When quit setup mode, BMS16Pro Will remember all parameters till next change. NOTE: Please keep the default setup unless for special purpose.
  • Page 6 BMS16Pro, but when cell voltage and temperature trigger the absolute maximum or minimum ratings, the BMS16Pro will force to cut off charge or discharge to make sure the battery safety, and prevent battery pack from explode or fire.

  • Page 7: Specifications

    Balancer BMS16Pro can resume cell voltage balanced status at the shortest time, it is based on 1.2A balance current per cell, balance accuracy is 5mV. Balance can be operated in charge or in discharge or in both, the feature can be setup on program setup manual.

  • Page 8: Current Calibration

    Click the Update button, then the update progress bar will appear on the bottom, update complete will be displayed on PC after finish update. BMS16Pro display the progress bar simultaneously and enter into cell count setup interface after update is completed.

  • Page 9: Typical Connection

    LiPo & LiFe Battery Management System BMS16Pro V1.0 Typical Connection There are 2 sockets connecting to battery pack, socket 1 is for 2S-8S and socket 2 for 9S~16S battery. 6S battery connect to the socket 1 directly, it is as following.
  • Page 10 LiPo & LiFe Battery Management System BMS16Pro V1.0 Accessory USB data cable Battery connection XHR-9PIN, 600mm Temperature sensor, 600mm Relay controller wire 600mm Warning LED, 300mm Warning Beeper, 300mm Current Measurement Module Current sensor wire, 300mm www.chargery.com page 10 total 13...
  • Page 11 Before connect the relay to charge or discharge controller, please confirm the coil voltage, the controller will output Vin to power the coil, if the BMS16PRO will be powered by external power supply, Vin is external power supply output voltage, if powered by battery pack, Vin will be battery pack voltage, so need voltage regulator to power coil.

  • Page 12: Related Parts

    LiPo & LiFe Battery Management System BMS16Pro V1.0 Related parts The following device is related with BMS16Pro MODEL DESCRIPTION COMMENTS BMS16 For 2S-16S, balance is not available. BMS24 For 2S-24S, 1.2A balance current per cell Version History Version description www.chargery.com...

  • Page 13: Warranty And Service

    Warranty and Service Chargery Power Co., Ltd. as manufacture of power system warrants its BMS16Pro and current Sensor to be free of defects in material and workmanship. This warranty is effective for 12 months from date of purchase. If within the warranty period the customer is not satisfied with the products performance resulting from a manufacturing defect, the accessory will be replaced or repaired.
