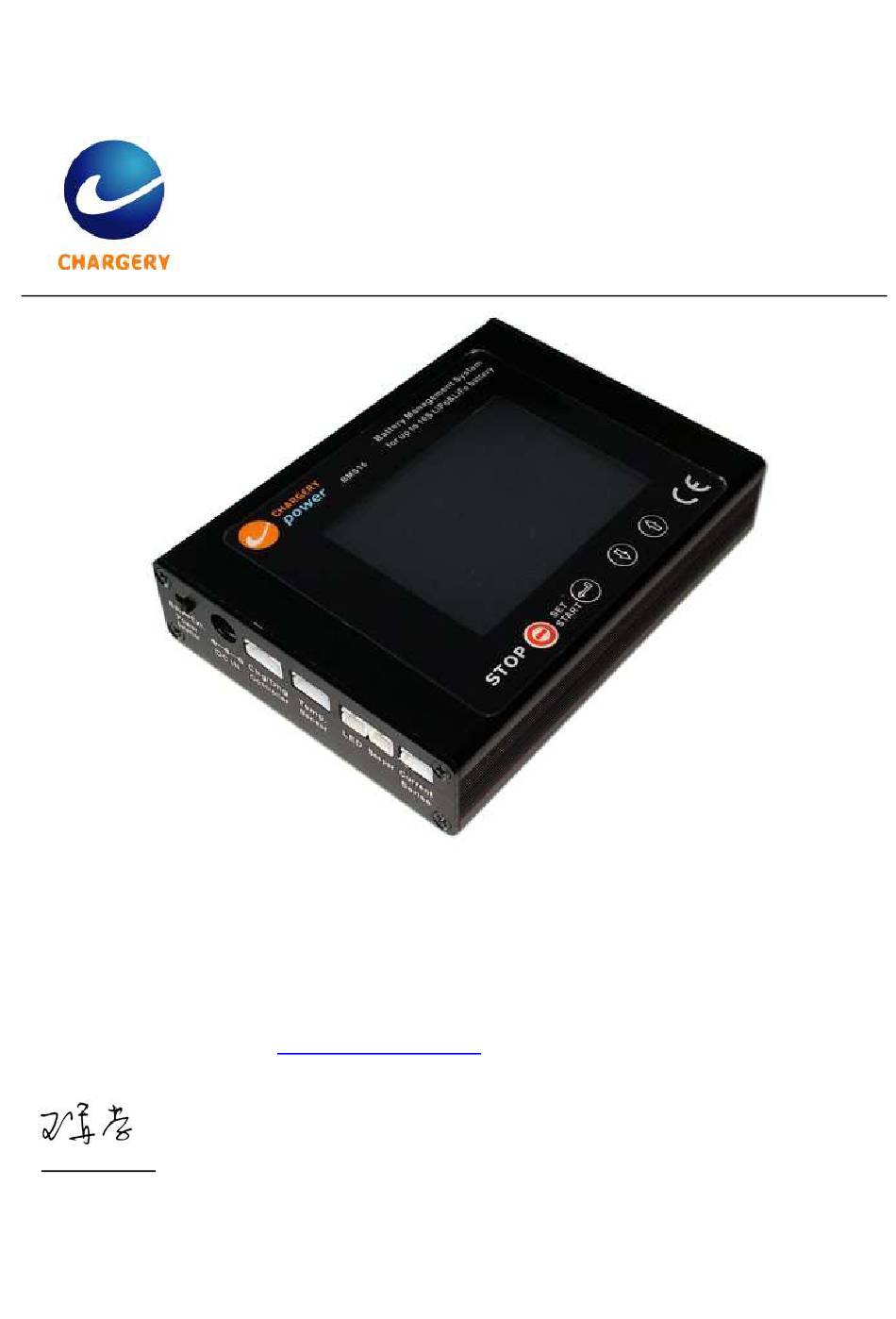

BMS16
BMS for 2S-16S LiPo & LiFe
Low power consumption
High accuracy
2.8" TFT LCD display
Programmable
T
hanks for your purchasing the BMS16 for your vehicle.
R
ead the ENTIRE instruction manual to become familiar with the features/functions of the device
before operating.
F
eel free to send an email to
jasonwang3a@163.com
or call at 86 755 2643 6165 should you have
any questions and suggestions.
Jason Wang
Advertisement
Table of Contents
Related Manuals for Chargery BMS16
Summary of Contents for Chargery BMS16
- Page 1 Low power consumption High accuracy 2.8” TFT LCD display Programmable hanks for your purchasing the BMS16 for your vehicle. ead the ENTIRE instruction manual to become familiar with the features/functions of the device before operating. eel free to send an email to jasonwang3a@163.com...
-
Page 2: Safety Notes
LiPo & LiFe Battery Management System BMS16 V1.16 Chargery BMS16 is designed special for LiPo & LiFe battery pack applied to storage energy system and Electrical Vehicle including E-Motorcycle, E-Scooter and so on. The unit can measure or detect the battery voltage, cell voltage, charge &... -
Page 3: Protection Functions
13. Supports upgrading the firmware program by USB port. 14. BMS16 provide users the maximal flexibility, key parameters can be programmed. 15. BMS16 display battery SOC or called battery gauge similar with car dashboard. Cell count, battery pack voltage and battery gauge (%) is displayed simultaneously. -
Page 4: Program Setup
LiPo & LiFe Battery Management System BMS16 V1.16 Alternate External or battery pack to power BMS16. If select all cells power the unit, the battery pack must be 8S to 16S LiFe or 8S to 14S LiPo. But if power by external power supply, Power Selector BMS16 can do 2S-16S LiPo or LiFe battery pack. - Page 5 Always on means the LCD back-light will be ON forever. NO means BMS16 will not cut off charge or discharge but alarm by LED flash and Beeper Sound. Current Calibration is not recommended, voltage and current is calibrated before delivery.
- Page 6 Cell count range is 2S to 16S, the cell count will be identified when the battery pack connect to the BMS16. Press DOWN or UP button choose the item and press SET blink, then press DOWN or UP button changed, finally press START button to run the BMS16. After started, battery type and cell count will not be changed unless power off BMS16.
-
Page 7: Specifications
RED text. Difference of cell voltage and difference of battery temperature is displayed. When any warning events triggered, BMS16 will go to the interface and display error information. Such as if the battery connection bread down, the cell count and ERROR will be displayed in turn. -
Page 8: Current Calibration
Click the Update button, then the update progress bar will appear on the bottom, update complete will be displayed on PC after finish update. BMS16 display the progress bar simultaneously and enter into cell count setup interface after update is completed. -
Page 9: Typical Connection
LiPo & LiFe Battery Management System BMS16 V1.16 Typical Connection There are 2 sockets connecting to battery pack, socket 1 is for 2S-8S and socket 2 for 9S~16S battery. 6S battery connect to the socket 1 directly, it is as following. - Page 10 LiPo & LiFe Battery Management System BMS16 V1.16 Accessory USB data cable Battery connection XHR-9PIN, 600mm Temperature sensor, 600mm Relay controller wire 600mm Warning LED, 300mm Warning Beeper, 300mm Current Measurement Module Current sensor wire, 300mm www.chargery.com page 10 total 13...
- Page 11 Before connect the relay to charge or discharge controller, please confirm the coil voltage, the controller will output Vin to power the coil, if the BMS16 will be powered by external power supply, Vin is external power supply output voltage, if powered by battery pack, Vin will be battery pack voltage, so need voltage regulator to power coil.
-
Page 12: Related Parts
LiPo & LiFe Battery Management System BMS16 V1.16 Related parts The following device is related with BMS16 MODEL DESCRIPTION COMMENTS BMS16Pro For 2S-16S, 1.2A balance current per cell BMS24 For 2S-24S, 1.2A balance current per cell Version History Version Description V1.13... -
Page 13: Warranty And Service
BMS16 V1.16 Warranty and Service Chargery Power Co., Ltd. as manufacture of power system warrants its BMS16 and current Sensor to be free of defects in material and workmanship. This warranty is effective for 12 months from date of purchase. If within the warranty period the customer is not satisfied with the products performance resulting from a manufacturing defect, the accessory will be replaced or repaired.
