BMS16
BMS for 2S-16S LiPo & LiFe
Low power consumption
High accuracy
2.8" TFT LCD display
Programmable
T
hanks for your purchasing the BMS16 for your vehicle.
R
ead the ENTIRE instruction manual to become familiar with the features/functions of the device
before operating.
F
eel free to send an email to
jasonwang3a@163.com
or call at 86 755 2643 6165 should you have
any questions and suggestions.
Jason Wang
Advertisement
Table of Contents
Related Manuals for Chargery BMS16
Summary of Contents for Chargery BMS16
- Page 1 Low power consumption High accuracy 2.8” TFT LCD display Programmable hanks for your purchasing the BMS16 for your vehicle. ead the ENTIRE instruction manual to become familiar with the features/functions of the device before operating. eel free to send an email to jasonwang3a@163.com...
-
Page 2: Safety Notes

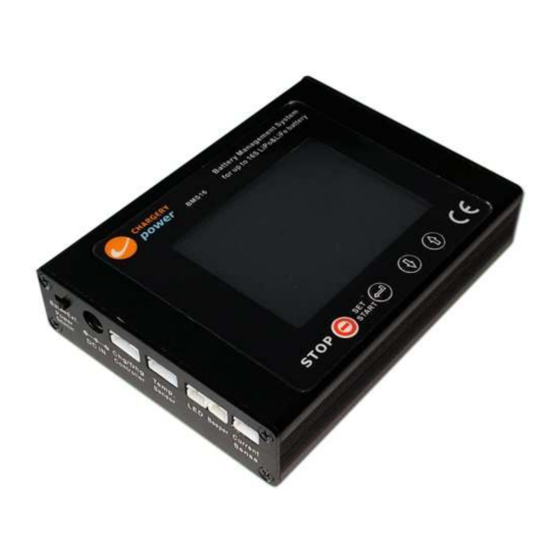

LiPo & LiFe Battery Management System BMS16 V2.0 Chargery BMS16 is designed special for LiPo & LiFe battery pack applied to storage energy system and Electrical Vehicle including E-Motorcycle, E-Scooter and so on. The unit can measure or detect the battery voltage, cell voltage, charge &... - Page 3 If use external adaptor, the BMS can do 2S -16S battery, and the external voltage range is 15-60V. Use external current shunt, maximal 100A continuous updated to 300A For same Battery positive and negative terminal when charge and discharge, BMS16 can control charge and discharge separately. And detect charge and discharge current with one current shunt.
-
Page 4: Order Information
LiPo & LiFe Battery Management System BMS16 V2.0 Order information Model Description Accessories BMS16 V2.0 300A charge and discharge 300A shunt, and standard accessories Package All standard accessories are listed on page 13, includes: Base unit, 1pcs Battery balance wire, 2pcs... -
Page 5: Special Features
12. Supports upgrading the firmware program by USB port. 13. BMS16 provide users the maximal flexibility, key parameters can be programmed. 14. BMS16 display battery SOC or called battery gauge similar with car dashboard. Cell count, battery pack voltage and battery gauge (%) is displayed simultaneously. - Page 6 Alternate External or battery pack to power BMS16. If select all cells power the unit, the Power Selector battery pack must be 8S to 16S LiFe or LiPo. But if power by external power supply, BMS16 can do 2S-16S LiPo or LiFe battery pack.
-
Page 7: Program Setup
DOWN change the value. Press SET button shortly confirm the change. After finish all setup, press SET for 3 seconds quit the setup menu. When quit setup mode, BMS16 Will remember all parameters till next change. NOTE: Please keep the default setup unless for special purpose. - Page 8 Always on means the LCD back-light will be ON forever. NO means BMS16 will not cut off charge or discharge but alarm by LED flash and Beeper Sound. Current Calibration is not recommended, voltage and current is calibrated before delivery.
-
Page 9: Specifications
RED text. Difference of cell voltage and difference of battery temperature is displayed. When any warning events triggered, BMS16 will go to the interface and display error information. Such as if the battery connection bread down, the cell count and ERROR will be displayed in turn. -
Page 10: Current Calibration
Current Shunt Specifications Please use correct current shunt according to actual maximal charge and discharge current, singe shunt is enough for BMS16, 75mV or less shunt is suggested. BMS16 can detect charge and discharge current by same shunt. All cell voltage and current are calibrated before delivery. - Page 11 Click the Update button, then the update progress bar will appear on the bottom, update complete will be displayed on PC after finish update. BMS16 display the progress bar simultaneously and enter into cell count setup interface after update is completed.
-
Page 12: Typical Connection
LiPo & LiFe Battery Management System BMS16 V2.0 Typical Connection There are 2 sockets connecting to battery pack, socket 1 is for 2S-8S and socket 2 for 9S~16S battery. 6S battery connect to the socket 1 directly, it is as following. - Page 13 LiPo & LiFe Battery Management System BMS16 V2.0 Accessory USB data cable Battery connection XHR-9PIN, 600mm Temperature sensor, 600mm Relay controller wire 600mm Warning LED, 300mm Warning Beeper, 300mm Current Sensor wire 600mm www.chargery.com page 13 total 22...
- Page 14 Before connect the relay to charge or discharge controller, please confirm the coil of relay voltage. The BMS16 controller will output 12V to power the coil, and total current for charge and discharge relay don’t be larger than 2.5A.
- Page 15 Before connect the relay to charge or discharge controller, please confirm the coil of relay voltage. The BMS16 controller will output 12V to power the coil, and total current for charge and discharge relay don’t be larger than 2.5A.
- Page 16 Charge relay and discharge relay lectotype for BMS16 BMS16 can output 12V 3A to power the charge and discharge relay. So the relay coil driven voltage must be 12V and total current for charge and discharge relay don’t be larger than 2.5A.
-
Page 17: Optional Accessories
LiPo & LiFe Battery Management System BMS16 V2.0 Optional accessories 12V 100A, 200A 400A, 600A and 800A relay Rated Operating voltage 12V – 500V DC Continuous (Carry) Current, Typical 100A 200A 400A 600A 800A ≯80mV ≯80mV ≯80mV ≯80mV ≯80mV Voltage drop at 100A load Coil operating voltage range 12V±20%... - Page 18 Relay delay time board When battery start to discharge and power the motor, the surge current is very large, in order to restrain the current, CHARGERY designed the special board, it can fit with CHARGERY BMS8T, BMS16, BMS16T and BMS24T and so on.
- Page 19 LiPo & LiFe Battery Management System BMS16 V2.0 Large power resistors Such as NTC Load + Laod + Small current discharge Large current Discharge Coil Coil relay controller relay controller The large power resistors must be chose by delay time and load current.
-
Page 20: Related Parts
LiPo & LiFe Battery Management System BMS16 V2.0 Related parts The following device is related with BMS16 MODEL DESCRIPTION COMMENTS BMS16T 16S BMS with 1.2A balancer 600A maximal BMS8T 8S BMS with 1.2A balancer 600A maximal BMS24T 24S BMS with 1.2A balancer... -
Page 21: Frequent Questions
LiPo & LiFe Battery Management System BMS16 V2.0 Frequent questions Charge or discharge relay/DC contactor don’t be open or closed Confirm relay coil driven voltage, it must be 12V. b) Confirm relay coil consume power or current, don’t be over 1A for each relay... -
Page 22: Warranty And Service
BMS16 V2.0 Warranty and Service Chargery Power Co., Ltd. as manufacture of power system warrants its BMS16 and current Sensor to be free of defects in material and workmanship. This warranty is effective for 12 months from date of purchase. If within the warranty period the customer is not satisfied with the products performance resulting from a manufacturing defect, the accessory will be replaced or repaired.
