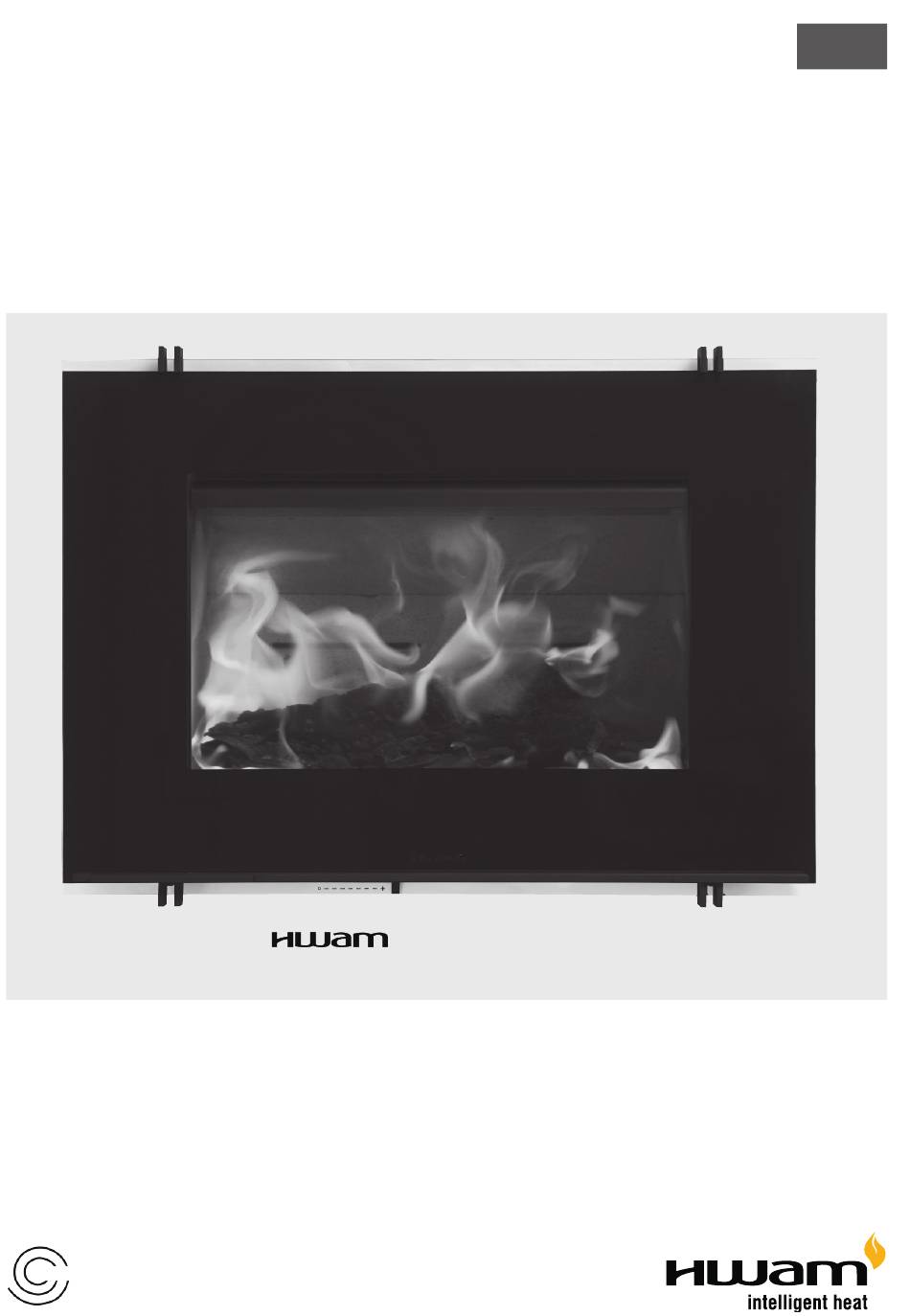

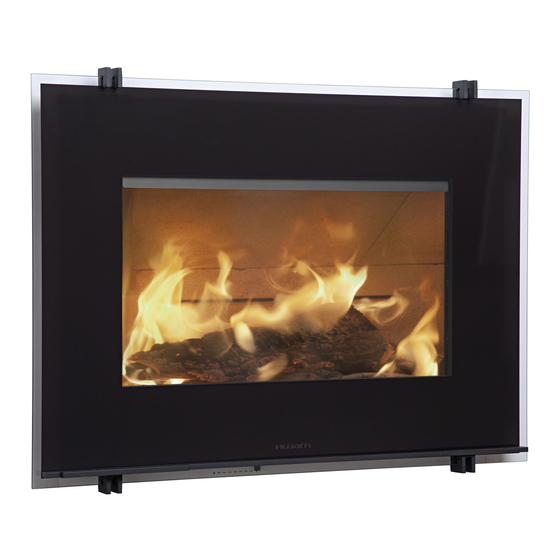

  • Page 1 User's Manual I 30/55s 01.11.2020 / 97-9652 www.hwam.com AUTOPILOT...

  • Page 2: Table Of Contents

    Table of contents Drawings ........... .4-6 Installation manual .
  • Page 3 Page 3 of 20 pages...
  • Page 4 Page 4 of 20 pages...
  • Page 5 Page 5 of 20 pages...

  • Page 7: Installation Manual

    Congratulations on your new HWAM insert. We are pleased that you have chosen a HWAM insert and confident that it will give you much pleasure. To ensure optimum operation and safety, we recommend that the installation should be carried out by an authorised HWAM retailer or a fitter recommended by the retailer.
  • Page 8 The chimney and flue duct must be of flue class T400 and be CE marked. Furthermore, it must have obtained the classification of G in soot fire testing. The required distance to combustible material must be complied with in accordance with the brand label. Ask your HWAM retailer for further information.
  • Page 9 If the stove has not been used for a longer period, it is important to check that the chimney pipe is not blocked. It is possible to connect several devices to the same chimney. However, it is important to first check the applicable rules.

  • Page 10: Mounting And Connection

    The HWAM I 30/55s consists of a moveable, external brickwork casing, as well as an insert that is pushed into place and connected once the brickwork casing has been assembled. The HWAM I 30/55s can be connected in two ways: 1.
  • Page 11 (1) of the chimney, and should only be done when the insert is assembled. Connecting external supply of fresh air The HWAM I 30/55s can be connected to fresh air systems. The fresh air system can be purchased separately. 2. Restructuring of brickwork around insert During the reconstruction, the outer casing should be carefully levelled off at a suitable height.

  • Page 12: Firing Manual - Wood

    – IrIng manual wood Your first heating session The lacquer will be fully hardened after the stove has been used, and the door and the ashpan should be opened very carefully as there will otherwise be a risk that the gaskets will stick to the lacquer. In addi- tion the lacquer may initially give off an unpleasant odour, so make sure that the room is well ventilated.
  • Page 13 Put two or three pieces of wood weighing up to 1 kg each into the insert. The HWAM ®...

  • Page 14: Firing In General

    Insufficient firing If the fireproof materials in the combustion chamber are blackened after a heating session, the insert is polluting, and th HWAM Autopilot™ is not functioning properly. The bar must therefore be pushed to ®...

  • Page 15: Cleaning

    leanIng External cleaning Cleaning of the insert should only be performed when it is not in use/cool. Daily maintenance is limited to a minimum. It is easiest to vacuum the outside of the insert with a tiny nozzle with soft brushes. If the glass door is grimed with soot, it can be cleaned with slightly dampened paper that has been dipped in the ashes.

  • Page 16: Maintenance

    The inspection must be performed by a qualified professional. Use only original spare parts. Cleaning Before chimney sweeping can be performed, the air control lever must be set all the way to the left to prevent soot and ash from entering the HWAM Autopilot™ . ® Drawing C: Remove the smoke shelf (1).

  • Page 17: Operational Problems

    peratIonal problems Blackened glass • The wood is too damp. Only use wood stored for at least 12 months under cover and with a moisture level not exceeding 12-18% RH. • Faulty seal in door. Fit new seal. Smoke in the room when opening door •...

  • Page 18: Declaration Of Performance

    The DoP can be downloaded from our website via the following link: www.hwam.com/dop/i30-55s Page 18 of 20 pages...
  • Page 19 • Always dispose of items in a way that is as sustainable as possible and that is in line with the current environmental protection, reprocessing/recycling and disposal technology HWAM A/S • Nydamsvej 53 • DK-8362 Hørning Page 19 of 20 pages...
