Contact Sensor 2nd Generation
Z-Wave™ Technical Manual
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Contact Sensor 2nd Generation Z-Wave and is the answer not in the manual?

Questions and answers

Related Manuals for ring Contact Sensor 2nd Generation Z-Wave

Summary of Contents for ring Contact Sensor 2nd Generation Z-Wave

  • Page 1 Contact Sensor 2nd Generation Z-Wave™ Technical Manual...

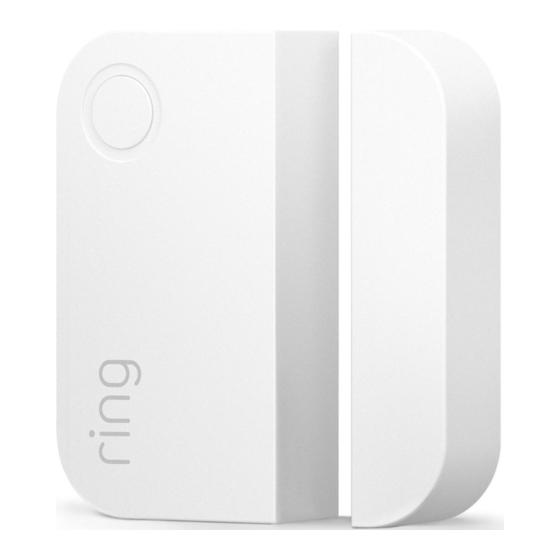

  • Page 2 After installing the sensor on a door or window and setting up the sensor in the Ring app, monitor and receive notifications when the door or window opens or closes. The Ring Alarm Base Station is required to enable Contact Sensor features and functions within the Ring app.

  • Page 3: Installation And Setup

    In-app Setup 1. Ensure your Ring Alarm system is disarmed. 2. In the Ring app, tap Set Up a Device and find the Contact Sensor in the Security Devices menu. 3. Follow the in-app instructions to complete setup. a. Pull the battery tab (or reinsert the batteries) to trigger setup mode.
  • Page 5 SmartStart Inclusion Steps: 1. Initiate the add flow for Security Devices in the Ring mobile application – Follow the guided add flow instructions provided in the Ring mobile application. 2. When prompted by the mobile application, scan the QR code found on the package of the Contact Sensor.

  • Page 6: Wake-Up Notification

    2. Select add manually and enter the 5-digit DSK PIN found on the package of the Ring Alarm Contact Using a paperclip or similar object, insert it into the pinhole, press and hold the button down for 10 seconds.

  • Page 7: Z-Wave Command Classes

    Z-Wave Command Classes Command Class Version Required Security Class Association Highest granted Association Group Information Highest granted Device Reset Locally Highest granted Firmware Update Meta Data Highest granted Indicator Highest granted Manufacturer Specific Highest granted Multi-Channel Association Highest granted Powerlevel Highest granted Security 2 none...
  • Page 8 Configuration Command Class The sensor has the following supported configuration parameters. Number Parameter Description Default Format Number Bytes Heartbeats: This parameter is the number min- 0x01 utes between heartbeats. Heart- 70 (0x46) 1 (0x01) 70 (0x46) Unsigned beats are automatic battery reports on a timer after the last event.
  • Page 9 Notification Report Type: System 0x09 Software Fault (Ring) 1 (Lifeline) State Value: 0x04 System Software Failure State Parameter Value = 0xAA (Ring Value for Soft Fault) Notification Report Type: System 0x09 Software Fault (SDK) 1 (Lifeline) State Value: 0x04 System Software Failure...
  • Page 10 Supplier’s Declaration of Conformity – Compliance Information Statement Unique Identifier: Ring Contact Sensor Responsible Party and Party issuing Supplier’s Declaration of Conformity Ring LLC dba Ring 1523 26th Street Santa Monica, CA 90404 U.S.A. www.ring.com / Legal@ring.com FCC Compliance Statement (for products subject to Part 15) This device complies with Part 15 of the FCC Rules.
  • Page 11 Suivez les instructions du fabricant pour jeter les piles usées. To review your warranty coverage, please visit www.ring.com/warranty. © 2020 Ring LLC or its affiliates. Ring, Always Home, and all related logos are trademarks of Ring LLC or its affiliates.
