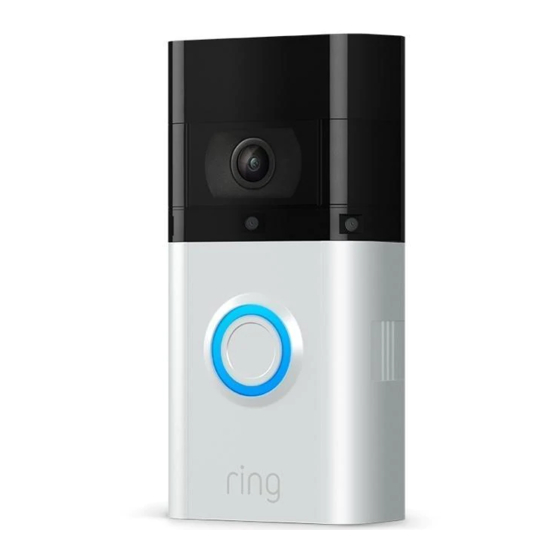

ring VIDEO DOORBELL Setup And Installation Manual

The Back of Your Ring Doorbell

To download the Ring app visit:
VIDEO DOORBELL
ring.com/app
The Ring app will walk you through
setting up your Ring Doorbell.
Setup and
Installation Guide
To watch videos on installing and
getting started with your Ring Video
Doorbell, visit:
English
ring.com/setup
1

In-app Setup

2

Testing Your Ring Doorbell

Setup Button

Set Up Your Ring Doorbell Using Push the Front Button to Run a Test
the Ring App
The orange After setup, push the front button on
button on the The Ring app will walk you through your Ring Doorbell indoors near your
back of your router to see video from your Ring
the setup process.
Ring Doorbell Doorbell in the Ring app.
Download
is the setup
the Ring app
button. You'll
by visiting
be instructed to
ring.com/app
push this button
and when
during the in-app
prompted,
setup process.
select Video
Doorbell.

Charging Port

If you're not Perform setup inside near
wiring your Ring your router. You'll need your
Doorbell, you'll network name and Wi-Fi password.
outdoors as it is indoors, you may
need to charge
need to move your router closer
XXXXXXXXXXX it periodically
MAC ID:
Product name: RinG
by plugging the to your door, or invest in a Wi-Fi
Model name: Video Doorbell
FCC ID: YOPGS1011MEE
Power input: 8-24 VAC, 5Vdc 1 A provided orange extender.
Network Name: _________________
cable into the
S/N: XXXXXXXXXXX
Learn more at:
charging port. Wi-Fi Password: _________________
3

Installation

4 Installation
Remove Your Existing

Install the Mounting Bracket

Doorbell (optional)
Take everything that came in the
If you're replacing a wired doorbell, box, along with a power drill if
you're installing on stucco, brick, or
first turn off the power at the breaker.
concrete, to the spot where you'll be
Then remove
installing your
Then test your your doorbell
Ring Doorbell.
Ring Doorbell from the wall,
outside. and disconnect Snap the
the wires. provided
level onto
the mounting
bracket and
use it to help
position the
bracket.
If video quality from your If you notice a diode when you
Ring Doorbell is not as good remove your wired doorbell, Then remove the orange tape, and
take note of this, as it means you will
use the mounting bracket as a
need to use the included diode. template to mark the four
corner holes.
ring.com/extender
Diode
5 Installation 6 Installation
On stucco, brick, or concrete install Use the Phillips
the anchors using the provided drill head side of the
bit and a power drill before installing Ring screwdriver
the mounting bracket. for screwing in your
mounting bracket.
Mounting
bracket
On wood or siding, you can skip this
step, and screw the bracket directly
into your wall.
7 Installation 8
Drive the screws into the anchors,
or directly into your wall
until they are flush with the
mounting
bracket, and the
bracket is
flat
against
your wall.
If your wall is at all uneven,
be careful not to screw the
bracket in so tightly that it bends.
