Summary of Contents for ring Contact Sensor

  • Page 1 Contact Sensor...
  • Page 2 Home security beyond the front door Ring Video Doorbells began a Ring of Security around your entire property. Ring Protect is the security system that takes the Ring of Security a step further giving you another level of protection for your property.
  • Page 3 Contents Diagram In-app Setup Connecting the Device Physical Installation Troubleshooting...

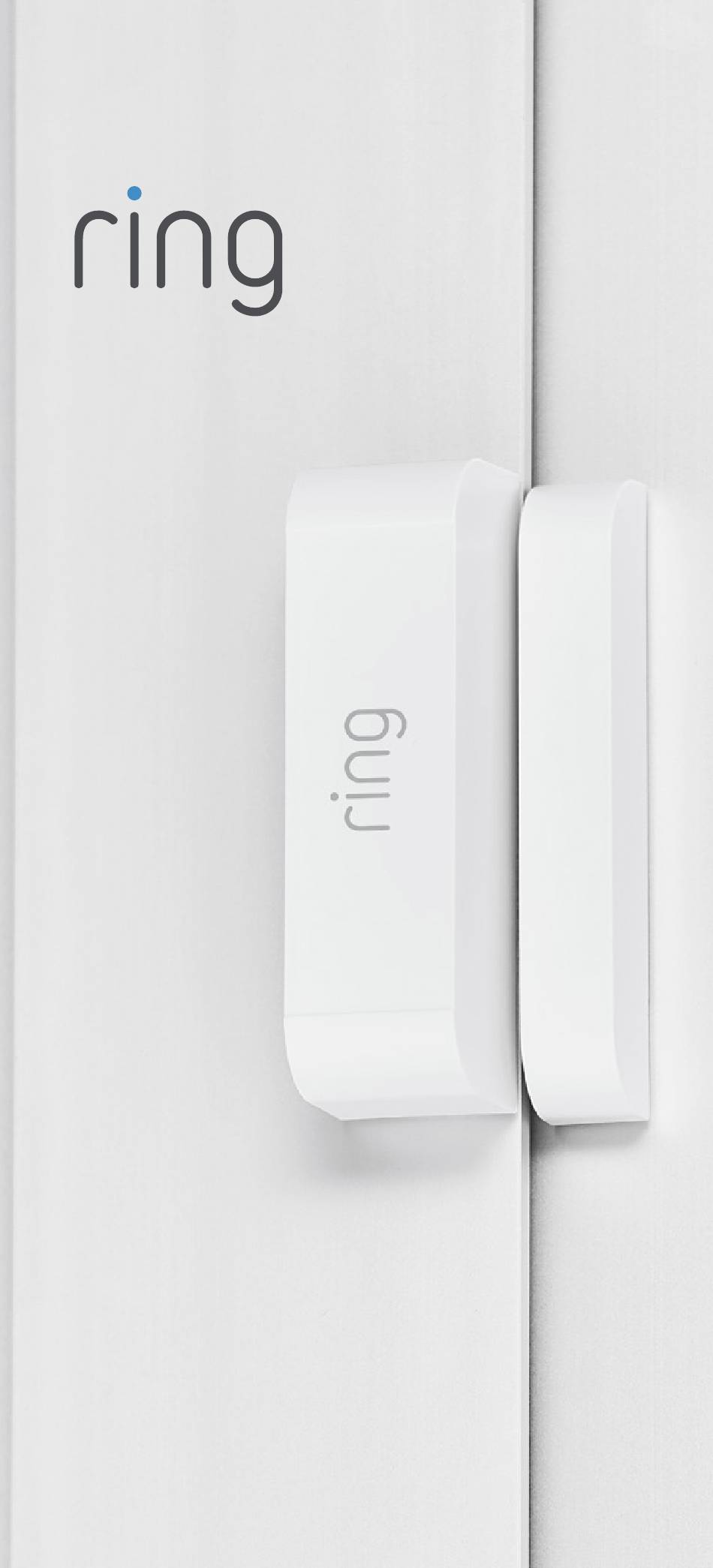

  • Page 4 Say hello to your Ring Contact Sensor.

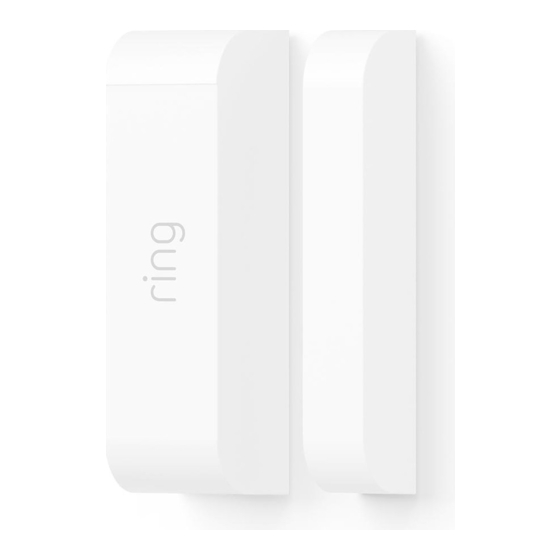

  • Page 5 Diagram Sensor Magnet Ring...
  • Page 6 Set up your Ring Contact Sensor in the Ring app.
  • Page 7 Set up your Ring Contact Sensor near your Base Station In the Ring app, choose Set Up a Device. Choose Sensors, then Ring Contact Sensor, then tap Add Device.
  • Page 8 Connect your Ring Contact Sensor to your base station.
  • Page 9 Pull the tab on the sensor This connects the battery and turns on the device. Your base station will find it.
  • Page 10 Scan the QR Code or enter the S2 PIN The QR Code and PIN can be found on the back of your device, on the box, or on the card in this box.
  • Page 11 Track the connection progress of the sensor Your sensor will try to connect to your base station. The sensor’s LED ring will show the progress. Here are some common LED patterns: Blue Waiting to Blinking (30 connect sec) Blue Solid...
  • Page 12 Open and close the sensor to test it Make sure the app shows that the sensor is open when you pull it apart.
  • Page 13 Install your Ring Contact Sensor on the wall.
  • Page 14 Place your sensor (but don’t install it yet) Hold the sensor where you want to install it. Place it near an edge of the door or window that will move.
  • Page 15 Align the magnet and the sensor Place the magnet on the trim near the sensor so that the lines on the sensor and magnet are parallel. The magnet and sensor can be a maximum of 1/2” apart. Alignment lines Max Gap 1/2”...
  • Page 16 Install your sensor on a door or window. Use the bracket and tape or screws included in your kit.
  • Page 17 View sensor history in the Ring app You should have a few history events from installing your sensor. Check your app to make sure it’s working.
  • Page 18 Some additional details about your sensor.
  • Page 19 How to change the battery Your battery should last quite a long time, but when you need to replace it, press the clip and remove the sensor cover.
