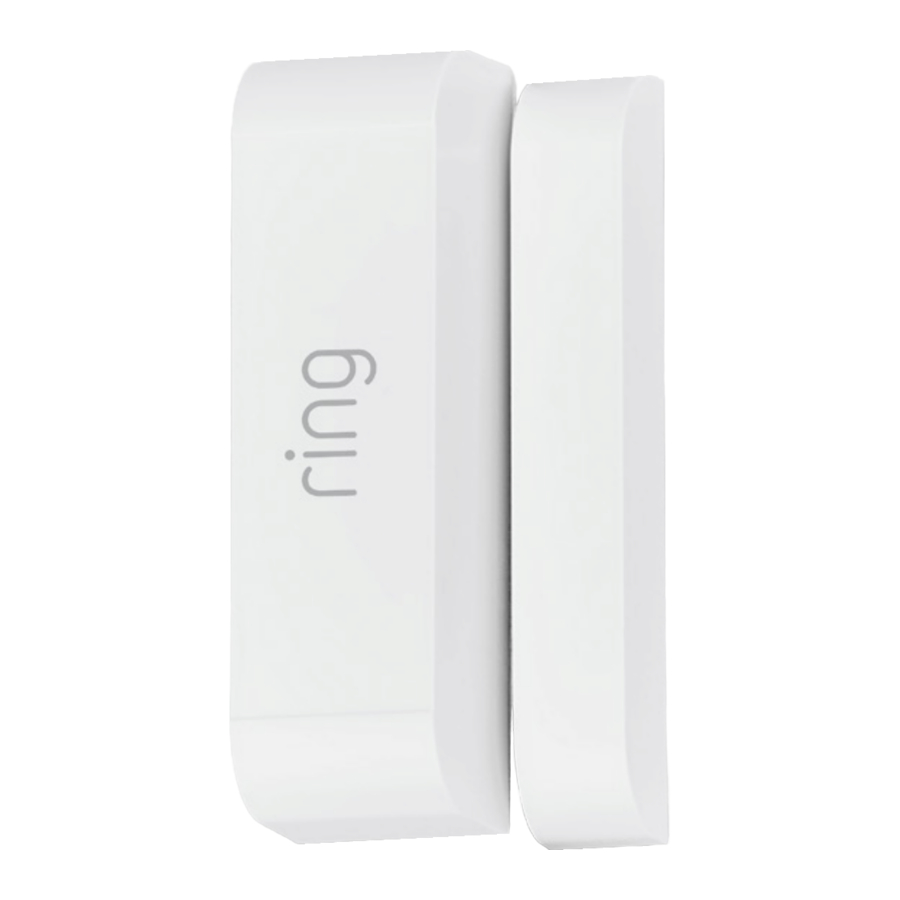

ring Contact Sensor Manual

Introduction

Ring Video Doorbells began a Ring of Security around your entire property.
Ring Protect is the security system that takes the Ring of Security a step further giving you another level of protection for your property.
Now, you can arm and disarm your system, prevent crime and protect your home - all from your phone, tablet or PC.

Diagram

In-app Setup

Set up your device near your Base Station
In the Ring app, choose Set Up a Device.
Choose Sensors, then Ring Contact Sensor, then tap Add Device.

Connecting the Device

Pull the tab on the sensor
This connects the battery and turns on the device. Your base station will find it.

Scan the QR Code or enter the S2 PIN
The QR Code and PIN can be found on the back of your device, on the box, or on the card in this box.

Track the connection progress of the sensor
Your sensor will try to connect to your base station. The sensor's LED ring will show the progress.
Here are some common LED patterns:

Open and close the sensor to test it
Make sure the app shows that the sensor is open when you pull it apart.

Physical Installation

Place your sensor (but don't install it yet)
Hold the sensor where you want to install it. Place it near an edge of the door or window that will move.

Align the magnet and the sensor
Place the magnet on the trim near the sensor so that the lines on the sensor and magnet are parallel. The magnet and sensor can be a maximum of 1/2" apart.

Install your sensor on a door or window.
Use the bracket and tape or screws included in your kit.

View sensor history in the Ring app
You should have a few history events from installing your sensor. Check your app to make sure it's working.

How to change the battery

Your battery should last quite a long time, but when you need to replace it, press the clip and remove the sensor cover.
