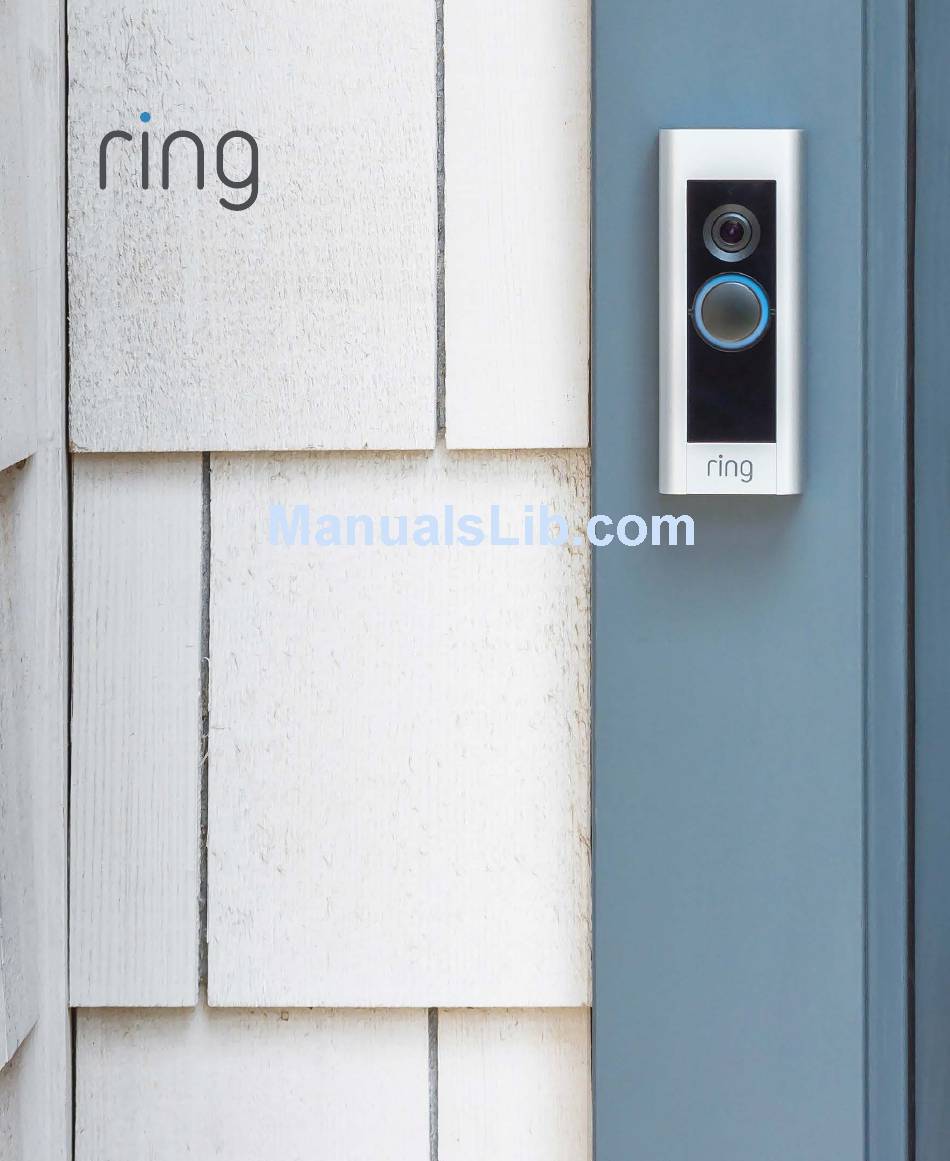

  • Page 1 Video Doorbell...
  • Page 2 Download the Ring app The Ring app will walk you through setting up and managing your Ring Video Doorbell Pro and your Chime Pro. Search for “Ring” in one of the app stores below, or visit: ring.com/app Download from Windows Store Grab your Wi-Fi password It’s required for the in-app setup.
  • Page 3 Plug in your Chime Pro It serves as a Wi-Fi extender for your Ring Doorbell Pro, so set Chime Pro up first. Plug Chime Pro in somewhere between your Wi-Fi router, and the location where you’ll be installing Ring Doorbell Pro.
  • Page 4 Set up your Chime Pro In the Ring app, select Set Up Device. When prompted, select Chime Pro, and follow the in-app instructions.
  • Page 5 Meet your Ring Doorbell Pro Front Back Terminals Setup Attach the Mounting button power wires holes here. Use the included wire- extensions if necessary. 4 Faceplates Pick the one that best matches your home… or your mood. Change it any time.
  • Page 6 3 Mounting Screws - Use two to mount your Ring. 2 Security Screws - Use one to secure the faceplate. 2 Extra Wires - To attach the power wires to your Ring if necessary. 2 Wire Connectors - To connect the extra wires (above) to the power wires.
  • Page 7 ’s rated lower than 16VAC, hire a licenced electrician to upgrade your existing doorbell and transformer and install a Pro Power Kit which you can order at ring. com, or use the provided plug-in adapter. Before touching live wires,...
  • Page 8 Locate a power outlet Locate an outlet as close to your door as possible. NOTE: DON’T PLUG THE ADAPTER IN YET!
  • Page 9 Run the wires down the wall from the outlet, and along your moulding. To get the wires outside, run them through the wall behind your Ring Pro, through a doorway or out a window. NOTE: ALWAYS BE CAREFUL OF EXISTING ELECTRICAL WIRING AND PIPES IF DRILLING THROUGH WALLS.
  • Page 10 Install anchors (optional) On stucco, brick, or concrete, use the provided bit to drill two holes in your wall, and install the anchors. If you’re installing on wood or siding, put the anchors in that drawer of stuff you never use and skip this step.
  • Page 11 Remove the Faceplate Remove the faceplate on your Ring Doorbell Pro to access the mounting holes. After your Ring Doorbell is installed, remove the faceplate like this:...
  • Page 12 Connect the wires Connect the wires from your power source to the terminals on the back of your Ring Doorbell Pro. Use the wire clips and extra wires if necessary. It doesn’t matter which wire connects to which screw.
  • Page 13 Plug in the power adapter and perform the in-app setup In the Ring app, select Set Up Device. Then select Video Doorbell Pro. When asked if you want to connect to your Chime Pro Network, select Yes.
  • Page 14 Install the faceplate Secure one of the faceplates with a security screw, using the star-shaped end of your Ring screwdriver.
  • Page 15 For additional help, visit: ring.com/help Or give us a call… AU 1 300 205 983 NZ +64 9 887 9871 US 1 800 656 1918 UK 01727 263045 Mexico (D.F) 52 55 8526 5445 Worldwide +1 310 929 7085 For a list of all our customer support numbers, visit: ring.com/callus...
  • Page 16 WHAT THE WARRANTY COVERS For a period of one year from the date of your purchase of the Ring Video Doorbell, any malfunction caused by defective parts or workmanship will be corrected at no charge to you. Please keep your dated sales receipt; it is required for all warranty requests.
