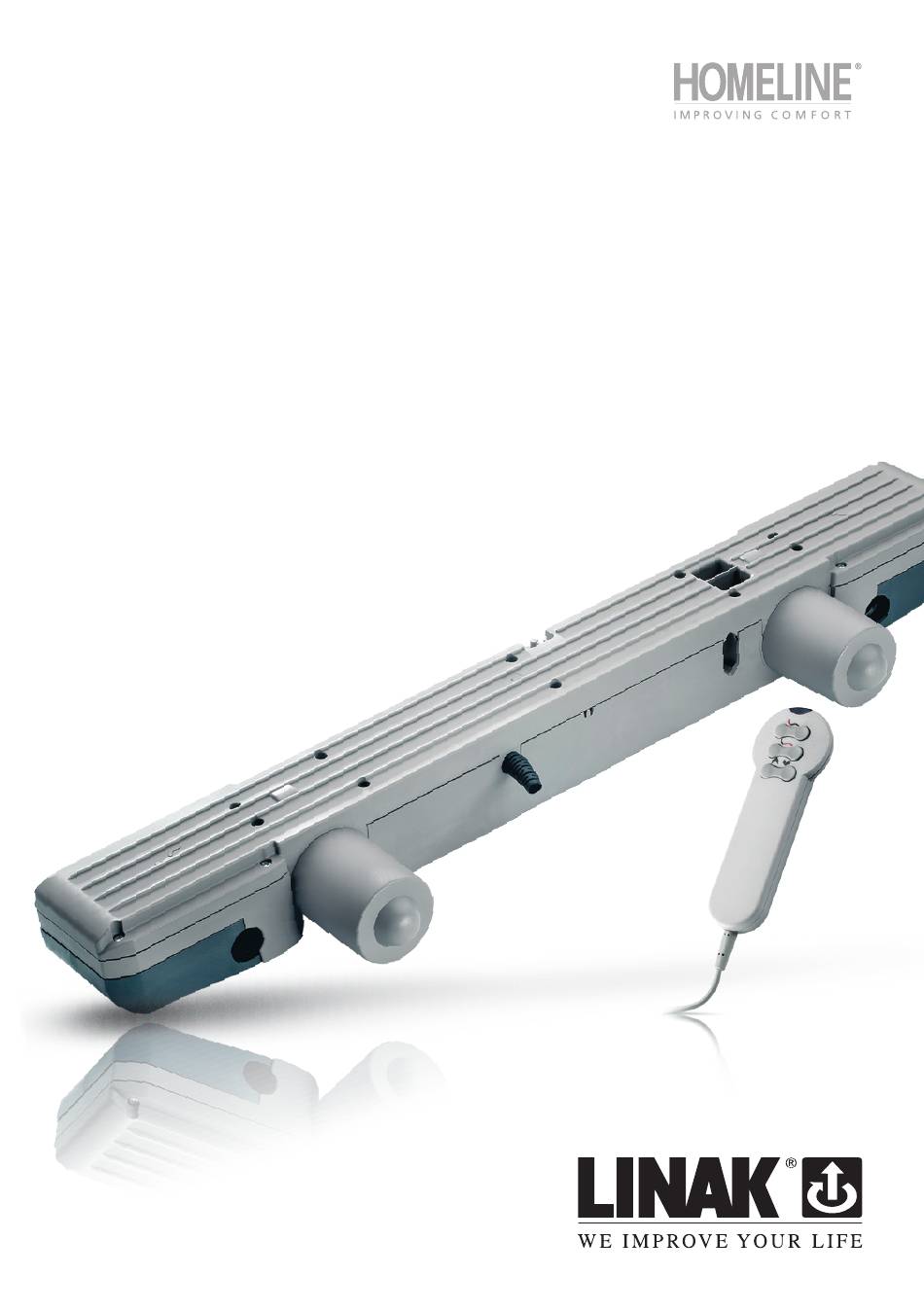

- Page 1 U S E R M A N U A L TWINDRIVE ® To learn more about LINAK please visit: W W W . L I N A K . C O M Page 1 of 20...
- Page 2 Page 2 of 20...
-
Page 3: Table Of Contents
Accessories and repair ......................12 Mains cut-off ........................... 13 Labels for TD2 TWINDRIVE , HB10 and HB20 ..............13 ® Disposal of LINAK’s products....................14 How to mount.......................... 15 Drawing appendix ........................17 Addresses ..........................20 Page 3 of 20... -
Page 4: Preface
LINAK products. Changes in installation and use of LINAK systems can affect their operation and durability. Therefore, changes must only be made according to agreement with LINAK A/S and changes are made at your own risk. LINAK A/S... -
Page 5: Important Information
Important information Important information on LINAK products can be found under the following ® headings: Warning! Failure to comply with these instructions may result in accidents involving serious personal injury. Failing to follow these instructions can result in the product being damaged or being ruined. -
Page 6: During Operation
In order to avoid the risk of malfunction, all TWINDRIVE repairs must only be carried out by ® authorised LINAK workshops or repairers, as special tools must be used and special gaskets must be fitted. TWINDRIVE under warranty must also be returned to authorised LINAK workshops. Warning! If any of the TWINDRIVE products are opened, there will be a risk of subsequent malfunction. -
Page 7: Misc. On The Td2 Twindrive ® System
TD2 and HB10/HB20 against manufacturing ® faults calculated from the production date of the individual products (see label). LINAK A/S’ warranty is only valid in so far as the equipment has been used and maintained correctly and has not been tampered with. -
Page 8: Description Of The Td2 Twindrive ® System

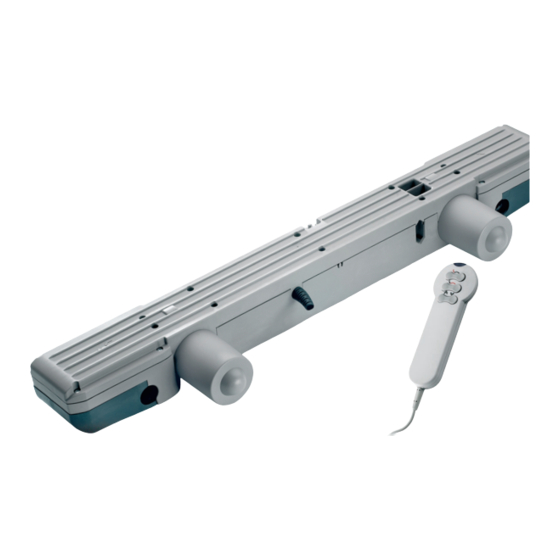

Description of the TD2 TWINDRIVE system ® Each TD2 TWINDRIVE unit consists of 1 - 2 internal motors and a built-in control box function, which makes ® it a very compact unit. The mains cable is fixed. Only the handset and optional 1 - 2 external actuators must be connected. -
Page 9: Mounting Guidelines For The Twindrive
Mounting guidelines for the TWINDRIVE system ® Open the closing devices by pushing the 2 pins and then pull the closing device out. Headrest Closing device Connection for external for 2 x 9V actuator batteries (other side) Footrest Mount the TD2 on the bed frame Mains cable Twist bracket... -
Page 10: Mounting The Handset And Connection To The Mains
Mounting the handset and connection to the mains It is recommended to use the strain relief, otherwise the DIN-plug and the PCB may be damaged when overstraining the cable. Please note that the TD2 must only be connected to the voltage stated on the label. The HB10/HB20 Use of the handsets Up/down operational (1-2 channels) - Page 11 The HB20 (Receiver) Up/down operation (1-4 channels) Common operation up/down (option) Memory positions (3 positions) Store Button The HB20 (Transmitter) Infrared handset consisting of 2 units. 1 reciever mounted as a standard handset with cable in the TD1 and a wireless unit. The wireless unit is the actual handset.
-
Page 12: How To Change The 9V Battery
Accessories Please contact your nearest LINAK dealer for information. Repairs Systems should only be repaired by an authorised LINAK service centre or engineer. Systems to be repaired under warranty must be sent to an authorised LINAK service centre. Warning! By unauthorised opening of the system there is a risk that it may malfunction at a later date. -
Page 13: Mains Cut-Off
Receiver Mains cut-off “click click” Mains cut-off If you observe that the mains cut-off does not disconnect, but keeps clicking when the TWINDRIVE motor is running it may be because the IR-receiver is exposed to sunlight or light from a lamp. If this should be the case we recommend placing the receiver at an edge of the bed where this cannot occur. -
Page 14: Disposal Of Linak's Products
Disposal of LINAK’s products As LINAK’s customers often ask us how our products can be disposed of or scrapped we have prepared this guidance that enables a classification to different waste fractions for recycling or combustion. Guidance We recommend to disassemble our product into as many fractions as possible at the disposal and try to make it recycable. -
Page 15: How To Mount
Main groups of disposal Product main Scrap Cable Electronic Plastic recycling or Comments groups scrap scrap combustin LA27 LA31 The metals can be sorted for steel or aluminum HB10 HB20 How to mount (in chronological order): Welding the twist bracket on the frame (0701033) For the TD2 it is important that one does not weld on the outside of the twist bracket because there is not room for a... - Page 16 It is very important that the axle distance is kept. Example for correct welded twist bracket to the bed frame. 3) Before mounting, both mounting brackets must be pulled out to their outer position by pushing them back. This gives freedom of movement to the bed bracket. Mounting is done by pushing the bed bracket into the TD2 unit and thereafter by pushing the mounting brackets back again.
-
Page 17: Drawing Appendix
DRAWING APPENDIX TWINDRIVE TD2 System: ® HB10 HB20 Page 17 of 20... - Page 18 LA27 LA31 INSTALLATIONDIM.=STROKE + ADDITION LINAK A/S 152.75 LA31002C 23.5 80.75 Page 18 of 20...
- Page 19 LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question.
-
Page 20: Addresses
While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product. Therefore, LINAK reserves the right to discontinue the sale of any product displayed on its website or listed in its catalogues or other written material drawn up by LINAK.
