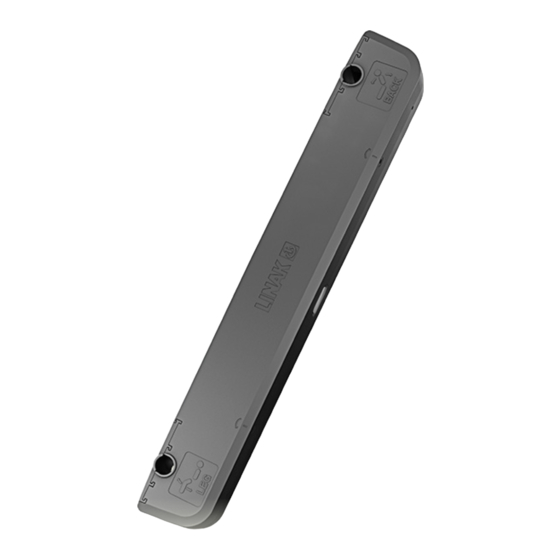

TD4 Advanced | Contents Preface ������������������������������������������������������������������������������������������������������������������������������������������ 4 Terms of use ���������������������������������������������������������������������������������������������������������������������������������� 5 Important safety information ��������������������������������������������������������������������������������������������������������� 6 General safety instructions ��������������������������������������������������������������������������������������������������������� 7 Before installation, de-installation or troubleshooting ����������������������������������������������������������������� 9 Before start-up �������������������������������������������������������������������������������������������������������������������������� 9 During operation ����������������������������������������������������������������������������������������������������������������������� 9 Miscellaneous ���������������������������������������������������������������������������������������������������������������������������� 9 Only for EU markets�����������������������������������������������������������������������������������������������������������������...
This User Manual does not address the end user� It is intended as a source of information for the equipment or system manufacturer only, and it will tell you how to install, use and maintain your LINAK electronics� The manufacturer of the end product has the responsibility to provide a User Manual where relevant safety information from this manual is passed on to the end user�...
LINAK, LINAK subsidiaries, or LINAK affiliates� All sales are subject to the ‘Standard Terms of Sale and Delivery for LINAK A/S’ available on LINAK websites� LINAK and the LINAK logotype are registered trademarks of LINAK A/S� All rights reserved�...
Failure to comply with instructions marked with the ”NOTICE” symbol may result in serious damage to the system or one of its components� Read all instructions before using this product� Important safety information on LINAK products can be found under the following headings: ®...
TD4 Advanced | General safety instructions Safe use of the system is possible only when the operating instructions are read completely and the instructions contained are strictly observed� Failure to comply with instructions marked with the ”NOTE” symbol may result in serious damage to the system or one of its components�...
Page 8
TD4 Advanced | This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation •...
• Take care that the cables are not damaged� • Unplug the mains cable on mobile equipment before it is moved� Miscellaneous The actuator system has a sound level below 55 dB(A) in typical applications� Updated manuals and declarations can always be found here: www�linak�com/user-manuals/homeline/...
TD4 Advanced | 10 Only for EU markets This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved�...
Le non-respect des instructions marquées du symbole “AVIS” peut entraîner de graves dommages au système ou à l’un de ses composants� Lisez toutes les instructions avant d’utiliser ce produit� Des informations de sécurité importantes sur les produits LINAK peuvent être trouvées sous les rubriques ®...
TD4 Advanced | 12 Consignes générales de sécurité Le non respect de ces instructions peut entraîner des accidents impliquant des blessures graves� Ne pas suivre ces instructions peut entraîner l´endommagement ou destruction du produit� L´utilisation en toute sécurité du système n´est possible que si l´intégralité des instructions ont été lues et ont été...
Page 13
TD4 Advanced | 13 Cet appareil est pleinement conforme à la section 15 des réglementations FCC. Le fonctionnement est sujet aux deux conditions suivantes: (1) Cet appareil ne doit pas causer d’interférences dangereuses, et (2) cet appareil doit supporter les interférences, y compris celles pouvant provoquer un fonctionnement non désiré...
• Débrancher le câble d’alimentation secteur des équipements mobiles avant déplacement� Divers Ce système d’actionneur présente un niveau sonore inférieur à 55dB(A) dans les applications classiques� Les manuels mis à jour et les déclarations sont disponibles sur le site: www�linak�com/user-manuals/homeline/...
TD4 Advanced | 15 Seulement pour les marchés au sein de l´UE Cet appareil peut-être utilisé par des enfants âgés de 8 ans et plus, ainsi que les personnes dont les capacités physiques, sensorielles ou mentales sont réduites ou ayant un manque d´expérience et de connaissance si elles ont bénéficié...
EU DECLARATION OF CONFORMITY LINAK A/S Smedevænget 8 DK - 6430 Nordborg Herewith declares under our sole responsibility that the LINAK dual actuator system TWINDRIVE ® for use in adjustable beds: With main component (mark with CE) that are model: TDA and TDB (with item number;...
UK DECLARATION OF CONFORMITY LINAK A/S Smedevænget 8 DK - 6430 Nordborg Herewith declares under our sole responsibility that the LINAK dual actuator system TWINDRIVE ® for use in adjustable beds: With main component (mark with UKCA) that are model: TDA and TDB (with item number;...
DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY 2006/42/EC ANNEX II B LINAK A/S Smedevænget 8 DK - 6430 Nordborg Herewith declares that LINAK HOMELINE® products as characterized by the following models and types: Control Boxes CB9H, CBH Advanced, CBH Basic Linear Actuators...
This system is a TWINDRIVE system developed for leisure beds and for indoor use in private homes� Warranty This HOMELINE product is subject to warranty pursuant to the terms of LINAK HOMELINE Warranty Paper, available on the LINAK website www�linak�com/warranty�...
TD4 Advanced | 20 Installation Mounting the TWINDRIVE 1� Push the TWINDRIVE unit into bed bracket� 2� Slide each closing device on and press it into correct position� IMPORTANT: Ensure that the closing devices are in place before using the TWINDRIVE� Do not drive the TWINDRIVE system without the closing devices mounted�...
Page 21
TD4 Advanced | 21 Cable strain relief Use the cable strain relief on the TWINDRIVE Advanced� By using the relief, you prevent the mains cable plug from being pulled out of the TWINDRIVE resulting in a malfunction� Depending on the thickness of the cable, you can choose to lead the cable through all three reliefs or just around the middle relief�...
2� The TWINDRIVE is in pairing mode for 3 minutes and the Under Bed Light flashes to indicate this� 3� Press the two top buttons on the LINAK hand control at the same time� The Under Bed Light gives one long flash to indicate that the hand control and the TWINDRIVE are paired up�...
TD4 Advanced | 23 Pairing your smartphone or tablet 1� Enable Bluetooth on your smartphone/tablet� ® 2� Open the Bed Control App� 3� Connect the TWINDRIVE Advanced to mains via the mains cable� 4� The TWINDRIVE is in pairing mode for three minutes and the Under Bed Light flashes to indicate this� 5�...
TD4 Advanced | 24 Pairing another device later It is possible to connect another control or another smartphone/tablet to the TWINDRIVE later� 1� Disconnect the TWINDRIVE Advanced from mains� 2� Wait 2 minutes� 3� Reconnect the TWINDRIVE to mains to get it in pairing mode again� 4�...
TD4 Advanced | 25 Mechanical emergency lowering Emergency lowering is meant for lowering the bed if a power failure occurs and the bed needs to be driven down into horizontal position� 1� Disconnect the TWINDRIVE Advanced from mains� 2� Take the hex key from the side of TWINDRIVE� Underneath the TWINDRIVE are two gaps for mechanical lowering�...
TD4 Advanced | 26 Electrical emergency lowering Connection of emergency lowering: 1� Disconnect the SMPS from the mains� 2� Notice! If a locking device is mounted on the SMPS remove it now� 3� Unplug the connection cable from the SMPS 4�...
TD4 Advanced | 27 Parallel drive It is possible to run parallel drive on two TWINDRIVE Advanced connected� Parallel drive means two beds running in parallel with use of only one hand control� Connect the two TWINDRIVE Advanced with a serial cable using the RJ45 ports�...
TD4 Advanced | 28 Combining the TWINDRIVE Advanced and the CBD6DC HOMELINE Combining the TWINDRIVE Advanced with the Control Box CBD6DC HOMELINE makes it possible to create a bed design with up to 5 motor in the system� The CBD6DC HOMELINE is connected to the TWINDRIVE Advanced with a serial cable and a 2-poled DC cable for communication and power supply in between the products�...
TD4 Advanced | 29 Twist bracket Mounting instructions and parallel tolerance When bed is horizontal (starting position): The shaft diameter must be Ø25�2 mm +0�3 mm/-0�2 mm...
TD4 Advanced | 30 Welding instructions No bracket or welding outside this area 52˚ from vertical axis The dimension of the twist bracket including welding may not exceed 38 mm� To maintain the correct rotation angle of the head-rest and the foot-rest it is important that the Twist bracket is mounted and welded according to the above instructions�...
LINAK service centre� In order to avoid the risk of malfunction, all actuator repairs must only be carried out by an authorised LINAK Service shop or repairers, as special tools and parts must be used�...
LINAK shall be responsible solely that the LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question�...
LINAK, LINAK subsidiaries, or LINAK affiliates. the same reason, LINAK cannot guarantee the correctness and actual status of imprinted information on All sales are subject to the ‘Standard Terms of Sale and Delivery for LINAK A/S’ available on LINAK websites. its products.
