Miranda DENSITE Series Manual To Installation And Operation

Reclocked digital video distribution amplifier

Advertisement

Quick Links

(DENSITÉ) SERIES

DESCRIPTION

The SDA-1111 is a reclocked serial digital video
distribution amplifier supporting a wide variety of
compressed and uncompressed serial digital
video signals. The SDA-1111 provides 9 reclocked
outputs with automatic equalization for up to 350
meters of cable (Belden 1694A). The amplifier also
offers signal presence detection and remote
reporting. The SDA-1111 includes reclocking,
providing an additional level of signal integrity in
longcable length applications The SDA-1111
supports DVB-ASI 270 Mbps compressed bit
streams as well as serial digital video at bit rates of
143, 177, 270, 360 and 540 Mbps. The SDA-1111 is
designed to be used in a DENSITÉ frame. A single
(for 4 outputs) or double (for 9 outputs) rear
connector panel is required.

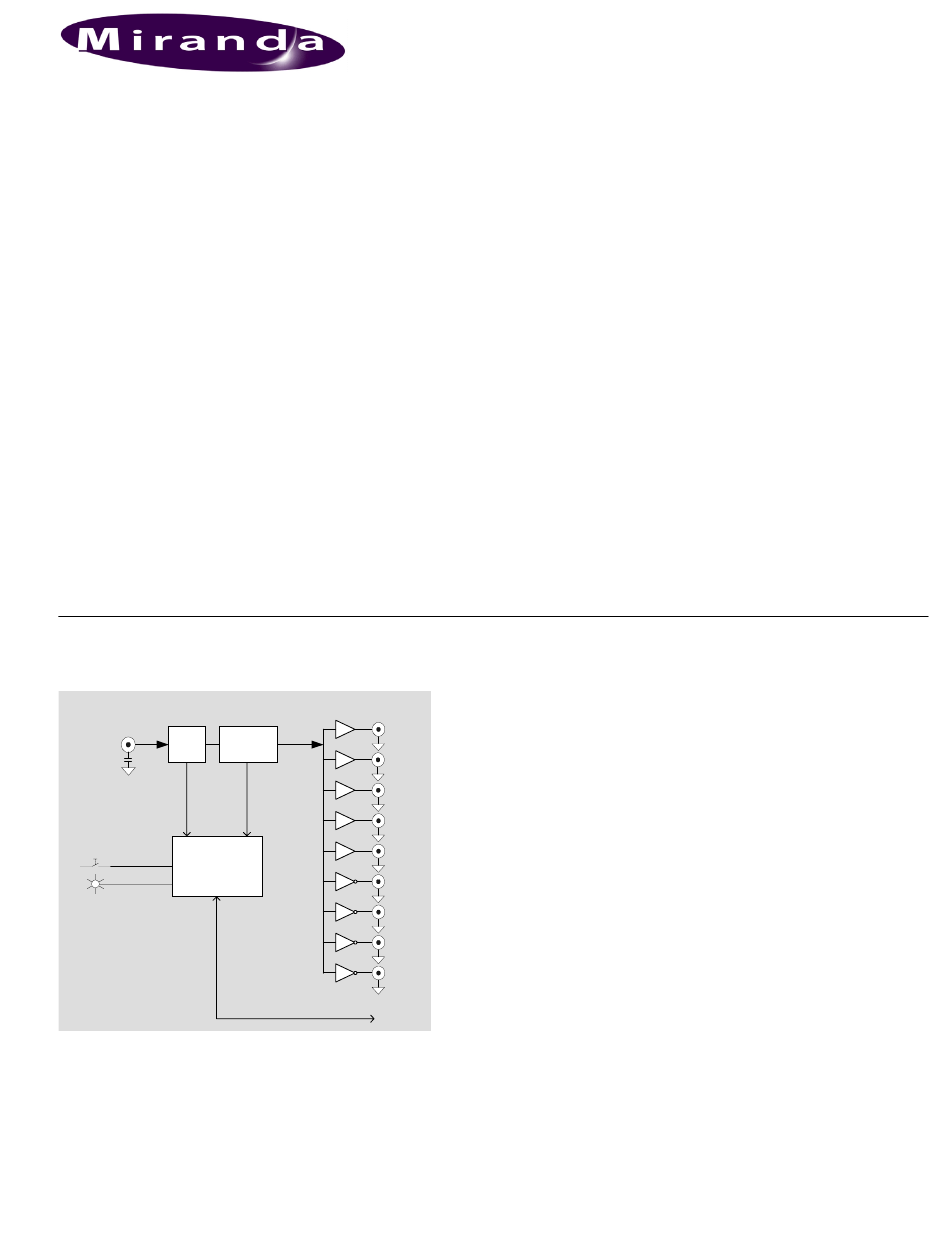

FUNCTIONAL BLOCK DIAGRAM
Input
Auto
Digital Video
Re-clocker
E Q
Attention
Microcontroller
Status
SDA-1111 Reclocked Digital Video Distribution Amplifier
SDA-1111

FEATURES

SPECIFICATIONS

SPECIFICATIONS
SPECIFICATIONS
SPECIFICATIONS
INPUT
Outputs
Signal:
1
2
3
Cable length:
4
Return loss:
5
6
OUTPUTS (4 or 9)
7
Signal:
8
9
Remote
Return loss:
Jitter (wideband): < 0.2 UI p-p
PROCESSING PERFORMANCE
Signal path:
Processing delay: 10.5 ns
Power:
SDA-1111
SDA-1111
SDA-1111
SDA-1111
Guide to Installation and Operation
(1) 75Ω isolated Digital video input
(9) 75Ω Digital video outputs
Auto-detects 525 or 625-line format
Compatible with SMPTE-259M (143-360
Mbps) and SMPTE-344M (540 Mbps) digital
video signals
Compatible with DVB-ASI (270 Mbps)
Reclocking of outputs
Signal presence detection and remote
reporting
Automatic cable equalization.
SMPTE-259M (143, 177, 270, 360
Mbps)
SMPTE-344M (540 Mbps)
DVB-ASI (270Mbps)
DVB-SSI/SMPTE-310M (Any rate)
350 m (1148') @ 270Mbps for Belden
1694A
> 15 dB up to 540Mbps
SMPTE-259M (143, 177, 270, 360,
540 Mbps)
SMPTE-344M (540 Mbps)
DVB-SSI/SMPTE-310M (Any rate)
DVB-ASI (270Mbps) outputs 1 to 5
only
> 15 dB for up to 540Mbps
10 bits
1.5 W (single), 2 W (double)
M457-9900-100
March 2002
Page 1 1 1 1 of of of of 4 4 4 4
Page
Page
Page

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DENSITE Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Miranda DENSITE Series

  • Page 1 SDA-1111 Reclocked Digital Video Distribution Amplifier Guide to Installation and Operation M457-9900-100 March 2002 (DENSITÉ) SERIES SDA-1111 DESCRIPTION FEATURES The SDA-1111 is a reclocked serial digital video • (1) 75Ω isolated Digital video input distribution amplifier supporting a wide variety of •...
  • Page 2 Make sure the following items have been shipped Rear panel installation with your SDA-1111. If any of the following items are missing, contact your distributor or Miranda The SDA-1111 has nine outputs, and making these Technologies Inc. available on BNC connectors at the rear of the frame requires a double-width rear panel.
  • Page 3 SDA-1111 Reclocked Digital Video Distribution Amplifier Guide to Installation and Operation status of any card in the frame whose SELECT pushed, and the card is being accessed via the button has been pushed. communications protocol. The LED color assignments for the various error conditions can be The SDA-1111 is also equipped with the remote reconfigured by the user.
  • Page 4 SDA-1111 Reclocked Digital Video Distribution Amplifier Guide to Installation and Operation WARRANTIES Miranda’s Warranty and Warranty Policy are explained in full detail in the Warranty Information Sheet. COMPLIANCE Radio Frequency Interference and Immunity This unit generates, uses, and can radiate radio frequency energy. If the unit is not properly installed and used in accordance with this guide, it may cause interference with radio communications.
