Miranda Densite Series Manual To Installation And Operation

Description
The AMX-1842 is a high-quality embedder which embeds
up to four AES 24-bit 48 kHz digital audio signals into a
single HD/SD serial digital video signal. It includes audio
and video signal presence detection and reporting, and
local or remote configuration and control. A unique feature
is its ability to embed time code, a serial RS-422 data signal
and two GPI status signals into the video signal. The card
has built-in audio tone, time code and video color bar test
signals.
The AMX-1842 is designed for use in the DENSITÉ frame,
with the appropriate double-width rear panel.
Video - Features
•
Serial HD/SD-SDI input with automatic equalization for
up to 110/250 meters of cable.
•
Automatic detection of video input format
•
Automatic detection of input video loss and switchover
to local black for continuity of embedded audio.
Audio - Features
• AES inputs: either 110 Ω balanced or 75 Ω
unbalanced, depending on rear panel in use

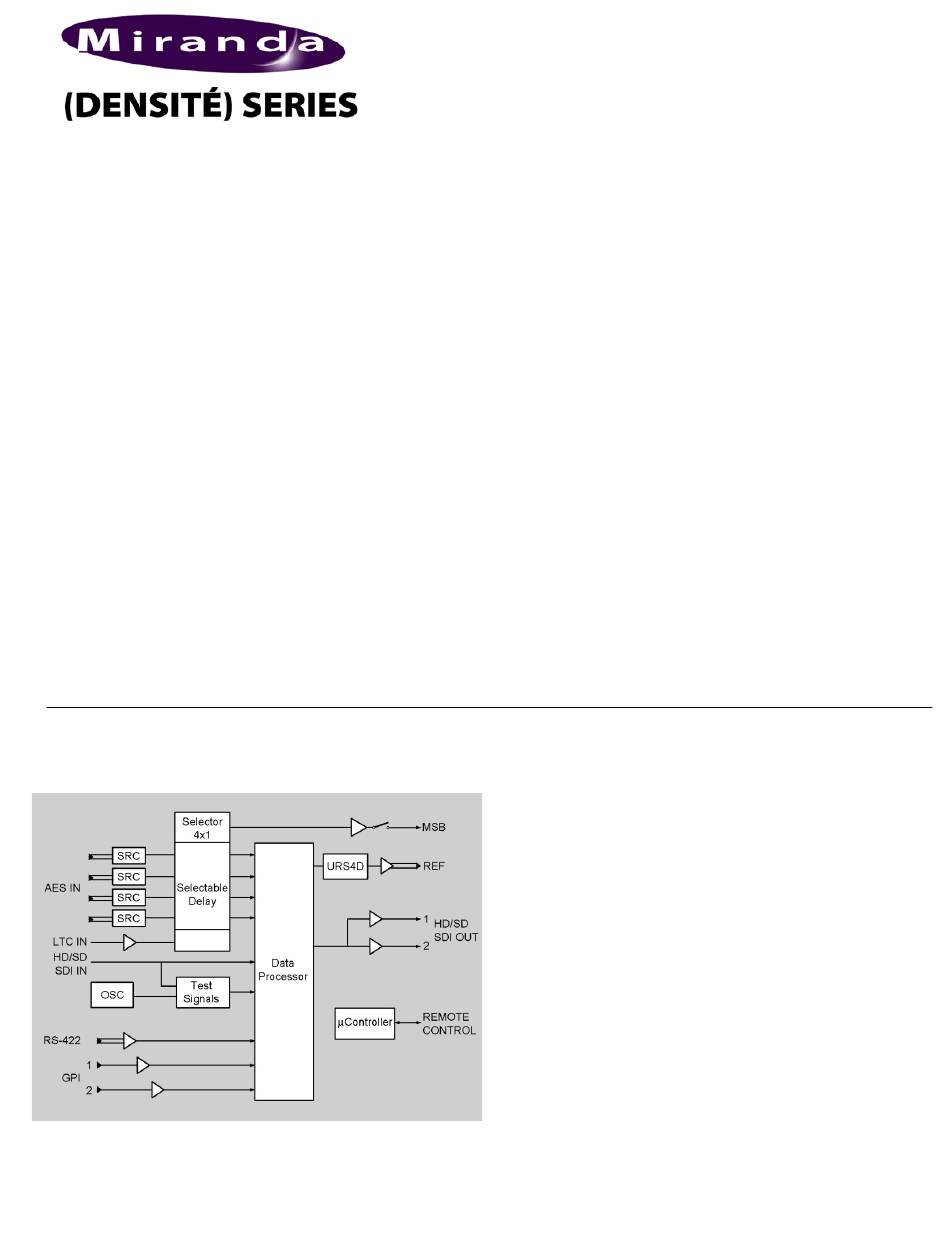

FUNCTIONAL BLOCK DIAGRAM
AMX-1842
•
Sample rate conversion for asynchronous AES inputs
•
Audio input channel gain selectable from -96dB to
+12dB by 0.5dB steps
•
Audio groups insertion/pass-through/delete
•
Selectable audio delay of up to 3 frames in ½ frame
steps
•
Left/Right channels swappable for each AES input
•
Automatic mute on AES error
•
Selectable routing of AES signals to audio groups
•
Dolby-E compatible (48kHz synchronous)
•
Cards cascadeable to embed 4 groups (16 channels)
•
24-bit digital audio embedding
•
Monitor selector for Densité frame monitor switcher
(MSB)
•
Universal reference signal output for audio DAC
Embedding Other Signals - Features
•
Linear Time Code (LTC) embedding
•
RS-422 serial data input for embedding as ANC data.
•
Sampling of two GPI inputs for embedding as ANC
data.
SPECIFICATIONS
VIDEO INPUT
Video Signal:
Cable Length:
Return Loss:
AUDIO AES-3id INPUT
Signal:
Level:
Impedance:
Cable length:
AUDIO AES3 INPUT
Signal:
Level:
Impedance:
Cable length
AUDIO AES SIGNALS
Sampling Rate:
Dolby-E Rate:
Bits:
AMX-1842
AMX-1842 HD/SD 4 AES Embedder
Guide to Installation and Operation
M684-9600-102
November 2011
HD/SD-SDI
SMPTE 292M / SMPTE 259M
(see list of supported formats below)
up to 110/250 meters of Belden 1694A
>15 dB, 5 MHz to 1.485 GHz
AES-3id (SMPTE 276M)
0.2 to 2.0 Vp-p
75 Ω unbalanced
>400 m
AES3
0.2 to 7.0 Vp-p
110 Ω balanced
>200 m
48kHz synchronous or asynchronous
48kHz synchronous
24-bit
Page 1 of 10
