(DENSITÉ) SERIES

DESCRIPTION

The SDA-1112 is a reclocked serial digital video
distribution amplifier supporting a wide variety of
compressed and uncompressed serial digital video
signals. The SDA-1112 provides 9 reclocked
outputs with automatic equalization for up to 350
meters of cable (Belden 1694A). The amplifier also
offers signal presence detection and remote
reporting. The SDA-1112 includes reclocking,
providing an additional level of signal integrity in
longcable length applications The SDA-1112
supports DVB-ASI 270 Mbps compressed bit
streams as well as serial digital video at bit rates of
143, 177, 270, 360 and 540 Mbps. The SDA-1112
is designed to be used in a DENSITÉ frame. A
single (for 4 outputs) or double (for 9 outputs) rear
connector panel is required.
This card operates with the MSB-1121 Monitoring

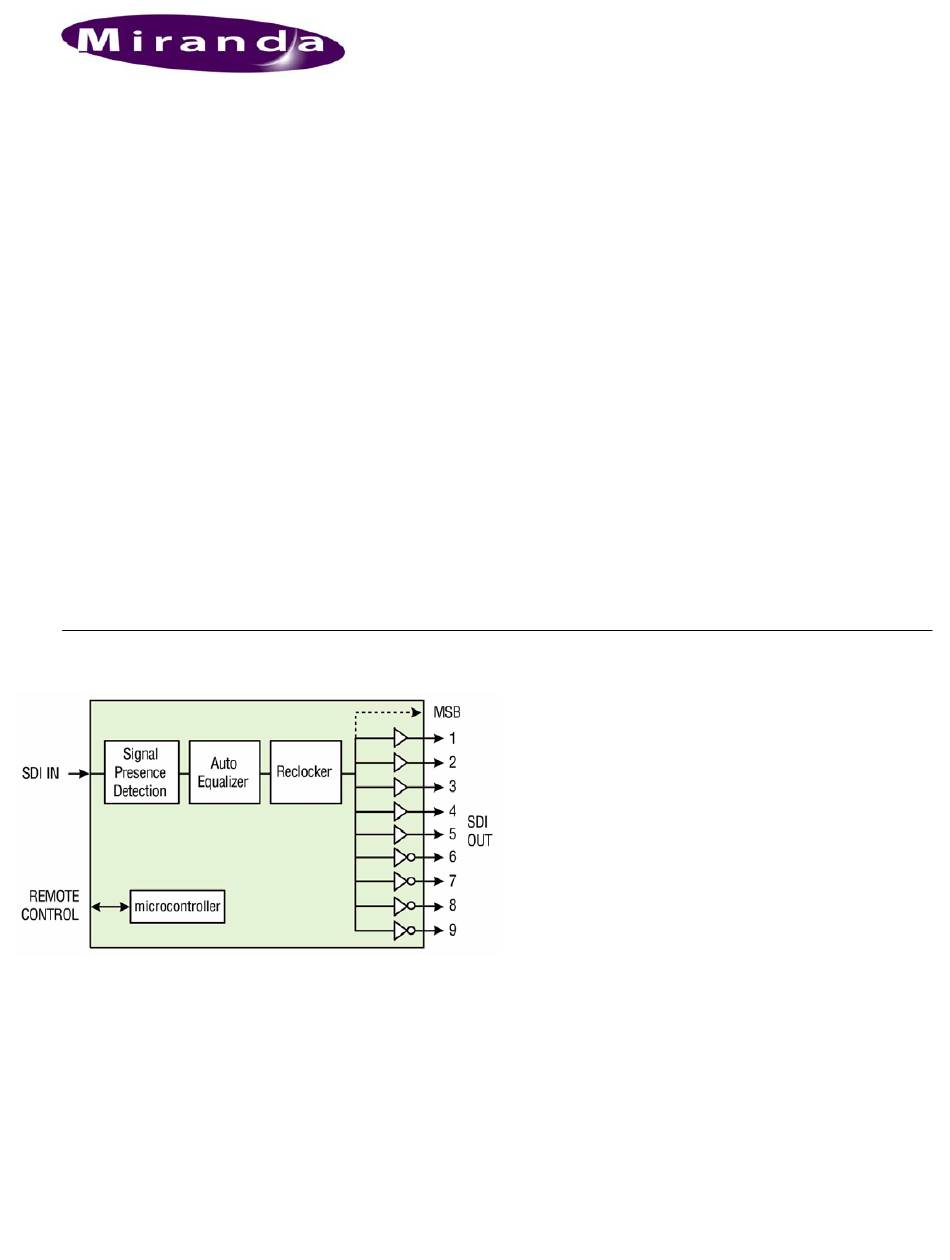

FUNCTIONAL BLOCK DIAGRAM

SPECIFICATIONS

INPUT
Signal: SMPTE-259M (143, 177, 270,
360 Mbps)
SMPTE-344M (540 Mbps)
DVB-ASI (270Mbps)
DVB-SSI/SMPTE-310M (Any
rate)
SDA-1112 Reclocked Digital Video Distribution Amplifier
SDA-1112
Switching Bridge which allows the output of any
module in the Densité frame to be monitored.
Multiple MSB equipped frames may be cascaded
to form a large monitoring bus, eliminating the
need for dedicated monitoring routers.

FEATURES

•
(1) 75 ohms isolated Digital video input
•
(9) 75 ohms Digital video outputs
•
Auto-detects 525 or 625-line format
•
Compatible with SMPTE-259M (143-360
Mbps) and SMPTE-344M (540 Mbps) digital
video signals
•
Compatible with DVB-ASI (270 Mbps)
•
Reclocking of outputs
•
Signal presence detection and remote
reporting
•
Automatic cable equalization.
SPECIFICATIONS (cnt'd)
Cable length:
Return loss:
OUTPUTS (4 or 9)
Signal:
Return loss:
Jitter (wideband): < 0.2 UI p-p
PROCESSING PERFORMANCE
Signal path:
Processing delay: 10.5 ns
Power:
SDA-1112
Guide to Installation and Operation
M457-9600-100
350 m (1148') @ 270Mbps
for Belden 1694A
> 15 dB up to 540Mbps
SMPTE-259M (143, 177,
270, 360, 540 Mbps)
SMPTE-344M (540 Mbps)
DVB-SSI/SMPTE-310M (Any
rate)
DVB-ASI (270Mbps) outputs
1 to 5 only
> 15 dB for up to 540Mbps
10 bits
1.5 W (single), 2 W (double)
March 2002
Page 1 of 4
