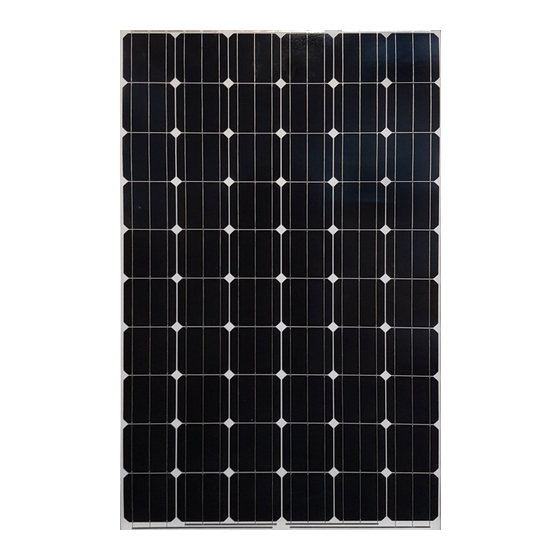

Astronergy CHSM6610M Installation Manual

Crystalline silicon pv module
Hide thumbs Also See for CHSM6610M:

Advertisement

Quick Links

Download this manual
Crystalline Silicon PV Module Installation Manual
1. Introduction
1.1 Purpose
1.2 Limitation of Liability
1.3 Precautions for Installation
2. Safety
2.1 General Safety
2.2 Installation Safety
3. Mechanical Installation
3.1 Installation Condition
3.2 Installation Methods
4. Electrical Installation
4.1 Installation Condition
4.2 Grounding
5. Maintenance
Chint Solar (Zhejiang) Co., Ltd. | Add:1335 Bin´an Road, Binjiang District, Hangzhou | P.C: 310053
Tel: 0086-571-5603 1888 | Fax: 086-571-5603 2316 | Website: http://energy.chint.com/

Advertisement

loading
Need help?

Need help?

Do you have a question about the CHSM6610M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Astronergy CHSM6610M

Summary of Contents for Astronergy CHSM6610M

  • Page 1 Crystalline Silicon PV Module Installation Manual 1. Introduction 1.1 Purpose 1.2 Limitation of Liability 1.3 Precautions for Installation 2. Safety 2.1 General Safety 2.2 Installation Safety 3. Mechanical Installation 3.1 Installation Condition 3.2 Installation Methods 4. Electrical Installation 4.1 Installation Condition 4.2 Grounding 5.
  • Page 2 1. Introduction 1.1 Purpose This document provides detailed instructions and valuable safety information regarding the installation, electrical connection, and maintenance of following Chint Solar Crystalline Photovoltaic modules: CHSM6610M CHSM6610M(BL) CHSM6610M/HV CHSM60M-HC CHSM60M(BL)-HC CHSM6610P CHSM6610P/HV CHSM60P-HC CHSM6612M CHSM6612M/HV CHSM72M-HC CHSM6612P CHSM6612P/HV CHSM72P-HC All the instructions should be read and understood before installation.
  • Page 3 touch and drag on the ground. c) After unpacking the modules should be installed that day as far as possible. It’s recommended to take the right amount of modules according to the progress of the project every day. Heavy rain and other inclement weather may have the potential to soak the packaging which can affect product reliability, such as storms, typhoons, hurricanes or other events in which they may be blown away.

  • Page 4: Installation Safety

    cover all items, please refer to the specific construction standards. 2. Safety 2.1 General Safety 2.1.1 Consult and follow local codes and other applicable laws concerning requiredpermitting as well as installation & inspection requirements, rules, and regulations. 2.1.2 PV modules should be installed and maintained by qualified personnel. 2.1.3 Use the same performance modules within a given series.
  • Page 5 2.2.6 Do not touch the terminal box and the end of output cables (connectors) with bare hands. 2.2.7 Do not unplug the connector under load. 2.2.8 Do not work alone. 2.2.9 Wear a safety belt if working far above the ground. 2.2.10 Do not wear metallic jewelry, which can cause electric shock, while installing or troubleshooting the PV system.

  • Page 6: Installation Methods

    and facing south in the northern hemisphere. 3.1.5 To maintain the modules’ Class C fire rating, the fire class of the roof and building materials should be higher than Class C. 3.1.6 To maintain the modules’ fire performance type 1(for US market), it could be possible to achieve the Class A system fire rating, with the Class A class racking system.
  • Page 7 Fig c 3.2.2 Clamping on the frame surface on the frame surface 3.2.2.1 Single glass module Modules can be laid either across the supp Modules can be laid either across the supporting bars (Figure d & f) or parallel to the edge of frame (Figure e &...
  • Page 8 Note: “---” means Fig f &Fig g methods will be not suitable for the module type. Dimension Module Series Note A*B*C 1648*990*35 3.2mm glass CHSM6610M, CHSM6610M/HV, 1650*992*35 CHSM6610P, CHSM6610P/HV, 1648*990*40 CHSM6610M(BL) 3.2mm glass 1650*992*40 1666*992*35 3.2mm glass...

  • Page 9: Electrical Installation

    Figure h Figure i Especially for Figure e & Figure g mounting method, the modules may be mounted using clamps designed for solar modules refer to Figure j, the modules must be supported along the length of the edge, and should overlap the array rail by 10mm – 14mm Figure j g) Especially for Figure f &...
  • Page 10 temperature of 25℃. 4.1.2 The IEC & UL standard maximum system voltage for the regular module series is 1000V, the 1500V standard products are also available according to the requirements. The IEC & UL standard maximum system voltage for half-cell module series is 1500V (except for black modules).

  • Page 11: Maintenance

    4.2 Grounding (n)Grounding the aluminum frame with copper wire 4.2.1 The grounding requirements must be checked in accordance with the applicable regulations and standards before work is started. 4.2.2 Use the marked 5.5 mm grounding holes to ground the anodized frame. Use one M5 nut, two M5 cut washers, one M5 plain washer, one M5 spring washer, and one M5 bolt and the copper wire.
  • Page 12 5.3 Regular electrical and mechanical inspection by a licensed professional will keep the system safe and operating at maximum efficiency. 5.4 Recommended PV module Cleaned-up period To get high output performance, PV module needs to be cleaned-up periodically as below: ①Normal: Minimum one time per every month;...
