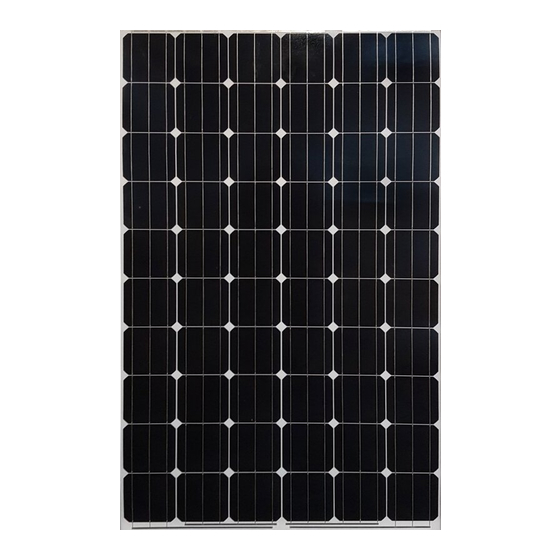

Astronergy CHSM6610M Installation Manual
Crystalline silicon pv module
Hide thumbs
Also See for CHSM6610M:
- Installation manual (38 pages) ,
- Manual (19 pages) ,
- Installation manual (19 pages)
Advertisement
Quick Links
Crystalline Silicon PV Module Installation Manual
1. Introduction
1.1 Purpose
1.2 Limitation of Liability
1.3 Precautions for Installation
2. Safety
2.1 General Safety
2.2 Installation Safety
3. Mechanical Installation
3.1 Installation Condition
3.2 Installation Methods
4. Electrical Installation
4.1 Installation Condition
4.2 Grounding
5. Maintenance
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Astronergy CHSM6610M
Summary of Contents for Astronergy CHSM6610M
- Page 1 Crystalline Silicon PV Module Installation Manual 1. Introduction 1.1 Purpose 1.2 Limitation of Liability 1.3 Precautions for Installation 2. Safety 2.1 General Safety 2.2 Installation Safety 3. Mechanical Installation 3.1 Installation Condition 3.2 Installation Methods 4. Electrical Installation 4.1 Installation Condition 4.2 Grounding 5.
- Page 2 1. Introduction 1.1 Purpose This document provides detailed instructions and valuable safety information regarding the installation, electrical connection, and maintenance of following Chint Solar Crystalline Photovoltaic modules: CHSM6610M CHSM6610M(BL) CHSM6610M/HV CHSM60M-HC CHSM6610P CHSM6610P(BL) CHSM6610P/HV CHSM60P-HC CHSM6612M CHSM6612M/HV CHSM72M-HC CHSM6612P CHSM6612P/HV CHSM72P-HC All the instructions should be read and understood before installation.
- Page 3 recommended to take the right amount of modules according to the progress of the project every day. Due to the modules piling on the ground after unpacking, in case of heavy rain and other inclement weather which has the potential risk to be a long soak in water can affect product reliability, such as typhoons and other modules in case of inclement weather is not installed which may be torn away.
-
Page 4: Installation Safety
2. Safety 2.1 General Safety 2.1.1 Consult and follow local codes and other applicable laws concerning required permitting as well as installation & inspection requirements, rules, and regulations. 2.1.2 PV modules should be installed and maintained by qualified personnel. 2.1.3 Use the same performance modules within a given series. 2.1.4 Follow all safety precautions of all components used in the system. - Page 5 2.2.7 Do not unplug the connector under load. 2.2.8 Do not work alone. 2.2.9 Wear a safety belt if working far above the ground. 2.2.10 Do not wear metallic jewelry, which can cause electric shock, while installing or troubleshooting the PV system. 2.2.11 Follow the safety regulations for any and all other system components, including wires, connectors, charging regulators, batteries, inverters, etc.
-
Page 6: Installation Methods
materials should be higher than Class C. 3.1.6 achieve the Class A system fire rating, with the Class A class racking system. Installation Methods 3.2.1 Bolting through the mounting holes All modules (excluding the double glass module) must be securely fastened with at least 4 bolts ( Figure a and Figure b). - Page 7 Fig c 3.2.2 Clamping on the frame surface 3.2.2.1 Single glass module Modules can be laid either across the supporting bars (Figure d & f) or parallel to the edge of frame (Figure e & g) . Remark: 1) The length of supporting bars must be longer than the length of module frame, otherwise please confirm with our product team to get approval.
- Page 8 The recommended installation position shows as below table. Note: --- means Fig f &Fig g methods will be not suitable for the module type. Dimension Module Series Note A*B*C CHSM6610M, CHSM6610M/HV, 1648*990*35 3.2mm glass CHSM6610P, CHSM6610P/HV, CHSM6610M(BL) 1648*990*40 3.2mm glass...
-
Page 9: Electrical Installation
Figure h Figure i Especially for Figure e & Figure g mounting method, the modules may be mounted using clamps designed for solar modules refer to Figure j, the modules must be supported along the length of the edge, and should overlap the array rail by 10mm 14mm Figure j g) Especially for Figure f &... - Page 10 temperature of 25 . 4.1.2 The maximum system voltage of all the IEC & UL standard module series is 1000V. The 1500V standard products are also available according to the requirements . 4.1.3 Connect quantity of modules that match the voltage specifications of the inverters used in system.
-
Page 11: Maintenance
regulations and standards before work is started. 4.2.2 Use the marked 5.5 mm grounding holes to ground the anodized frame. Use one M5 nut, two M5 cut washers, one M5 plain washer, one M5 spring washer, and one M5 bolt and the copper wire. - Page 12 Do not clean broken glass or modules with broken lines or exposed wires, as it may 5.5.4 cause the electric shock. CHINT SOLAR (ZHEJIANG) Co., Ltd. Add: 1335 Bin an Rd, Binjiang District, Hangzhou, China 310053 Tel: 86-571-5603 1888 Fax: 86-571-5603 2333 http://www.astronergy.com...
