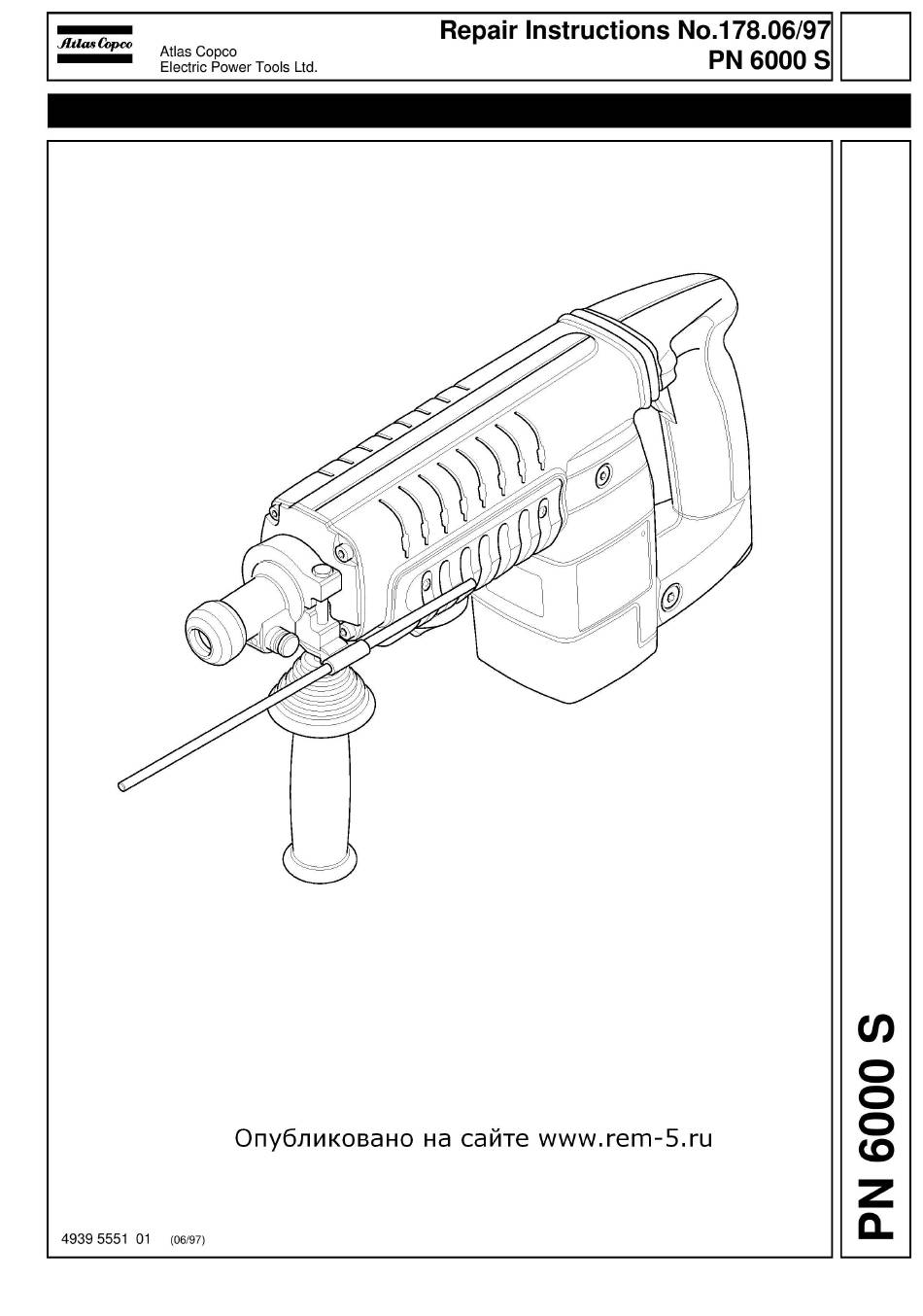

Summary of Contents for Atlas Copco PN 6000 S

  • Page 2 Repair Instructions No.178.06/97 PAGE PN 6000 S Special Tools Torx screwdriverTX 15 4931 599 004 Required Torx screwdriver TX 20 4931 599 005 Torx screwdriverbit TX 30 4932 319 998 Permanent-magnet holder 4932 315 508 Forcing disks 4931 599 021...
  • Page 3 Repair Instructions No.178.06/97 PAGE PN 6000 S Removing the Loosen the four screws (B) and remove armature the motor housing cap (A). Remove the respective brush springs (2) from the carbon brushes (D) and place them on the upper edge of the brush holder (E).
  • Page 4 Repair Instructions No.178.06/97 PAGE PN 6000 S Detaching the Loosen the two screws (4) and remove the damping element gear box insulation (2) and (3). Loosen both screws (5) of the handgrip holder (7) and remove them together with the disks (6).
  • Page 5 Repair Instructions No.178.06/97 PAGE PN 6000 S Detaching the Lever off the cap (3) with aid of a screw- bearing end plate driver. Remove the distance sleeve (4) and the sleeve (5) from the machine. Loosen the four screws (F). They are fas- tened very tightly.
  • Page 6 Repair Instructions No.178.06/97 PAGE PN 6000 S Dismantling the Press the spindle sleeve (7) with the spindle spindle gear (G) from the bearing end plate (A). Lever off the seal ring (8). Remove the locking ring (9) with aid of special pliers.
  • Page 7 Repair Instructions No.178.06/97 PAGE PN 6000 S Dismantling the Loosen the two screws (K) and pull the in- reduction gear dexing sleeve (H) completely from the crankcase (6). Remove the bearing (J) and the indexing sleeve (H). Press down the bevel gear (4) with aid of the disassembly tool (service tool).
  • Page 8: Maintenance

    Repair Instructions No.178.06/97 PAGE PN 6000 S Maintenance General It is recommended that maintenance be performed on the machine at regular intervals or when the car- bon brushes switch off at the latest. Cleaning Clean all parts – with the exception of the electrical parts – with cold cleaning agent. Caution! No clean- ing agent should penetrate into the bearing.
  • Page 9 Repair Instructions No.178.06/97 PAGE PN 6000 S Assembly Assembling the Mount the needle bearing (8) in the con- crank assembly necting rod (7). Push the piston (5) over the connecting rod (7) and mount the pin (6). Press the needle bearing (2) into the crank gear.
  • Page 10 Repair Instructions No.178.06/97 PAGE PN 6000 S Assembling the Insert the cylinder (4) with the percussion spindle body (2) and the O-ring (3) into the crank- case (5) and fasten it with the four secured screws (1). Insert the O-ring (N), the snap die (M), the disk (L), the O-ring (K) and the disk (J) into the spindle gear (G).
  • Page 11 Repair Instructions No.178.06/97 PAGE PN 6000 S Mounting the Press the ball bearing (1) onto the crank crankcase gear. top cover Mount the locking ring (2) with aid of spe- cial pliers. Fit the crankcase top cover (3) and the gasket (7) to the crankcase.
  • Page 12 Repair Instructions No.178.06/97 PAGE PN 6000 S Mounting the Insert a sleeve (4) into the handle shell (C) electric and fit the handle shell to the motor hous- components ing. Mount the other sleeve (4), the switch (F) and the capacitor in the handle shell (6).
  • Page 13 Repair Instructions No.178.06/97 PAGE PN 6000 S Mounting the Fit the torsion spring (8) to the shift pin (7) switch knob such that it is located in the boring of the shift pin (7). Insert the shift pin (7) with the torsion spring (8) into the gear box insulation (3).
