Model: Honda CBR 600F / VFR 750
Type: PC19 & PC23 / RC24
Important: If you are not a trained motorcycle mechanic stop now. Ask a local
motorcycle shop to do the work for you. Please read the LSL-Superbike-Kit
Fitting instructions.
Recommended bar:
Length of brake-lines:
Code for cable routing:
in front of the fork
behind the fork
Throttle cable:
Clutch cable:
Choke cable:
Fairing and screen need to be cut. A Superbike-Screen is available.
Instructions:
Fit the handlebar grips about 1cm away from the end of the handlebar. Lead the
throttle cables along the handlebar and in the following between fuel tank and frame
to the carburettor-unit. Fix the cable s with straps to the handlebar.
Rev. 01 14/03/2013

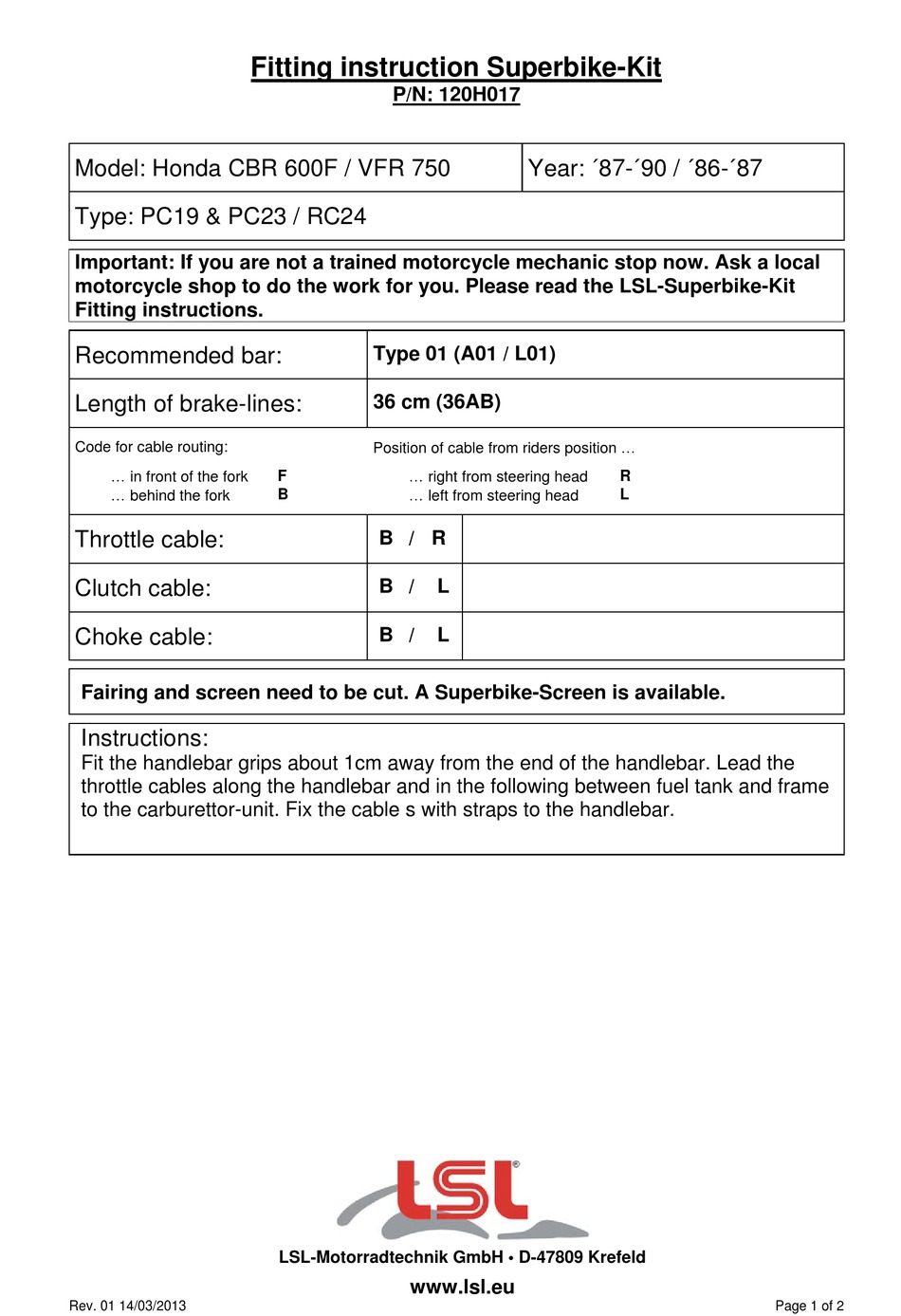

Fitting instruction Superbike-Kit
P/N: 120H017
Type 01 (A01 / L01)
36 cm (36AB)
Position of cable from riders position
right from steering head
F
left from steering head
B
B / R
B /
B /
LSL-Motorradtechnik GmbH • D-47809 Krefeld
www.lsl.eu
Year: ´87-´90 / ´86-´87
L
L
R
L
