Freedom9 freeView IP 100 Quick Install Manual

Introduction

The freeView IP 100 redirects local keyboard, mouse and video data to a remote administration console. All data is transmitted via
internet protocol (IP). The unit can also be used in a multi-administrator and multi-server environment. In addition, the unit is a
KVM switch, which can also be used with a local console (a local set of monitor, keyboard, and mouse).

Hardware Installation

1. Power off the server.
2. Remove the unit from the box.
3. Connect the included KVM cable from the server to the ports labeled Host on the unit. (Check that the keyboard and
mouse connectors are connected to the proper ports and are not crossed.)
4. If you are installing a local console, connect the local monitor, mouse, and keyboard to the ports labeled Console on the
unit.
5. If you are using remote mass storage control, connect the included USB cable from the server to the USB port on the unit.
6. Connect an Ethernet cable to the LAN port and/or modem to RS-232 serial port, depending on how you want to access
the unit.
7. Power on the unit, and then power on the server.

Video modes

The freeView IP 100 supports many common video modes.
Please refer to Appendix C (User Manual) for a list of all supported video modes.

Initial IP configuration

By default, the freeView IP 100
If these network parameters do not match your network configuration, you can configure the device's network settings by using
the program KVMSetup.exe located on the installation CD after the unit has been connected to the network and powered on.
To change the network settings of the device:
1. Open Windows Explorer and browse to the CD drive.
2. Double-click the file KVMSetup.exe.
3. A screen similar to Figure 1-2 will be displayed.
4. Select the unit's MAC address from the drop-down
list under "Device MAC address".
5. Enter the desired IP address for the device under
"Network Configuration".
6. Enter the user name and password under
"Authentication". The default user name is "super"
and the default password is "pass".
7. Click "Setup Device".
freeView IP 100

Quick Install Guide

uses the network parameters shown in Table 1-1.
Parameter
IP auto configuration
IP-Address
Net-mask
Default-Gateway
Table 1-1: Default network configuration
Value
DHCP
None
255.255.255.0
None

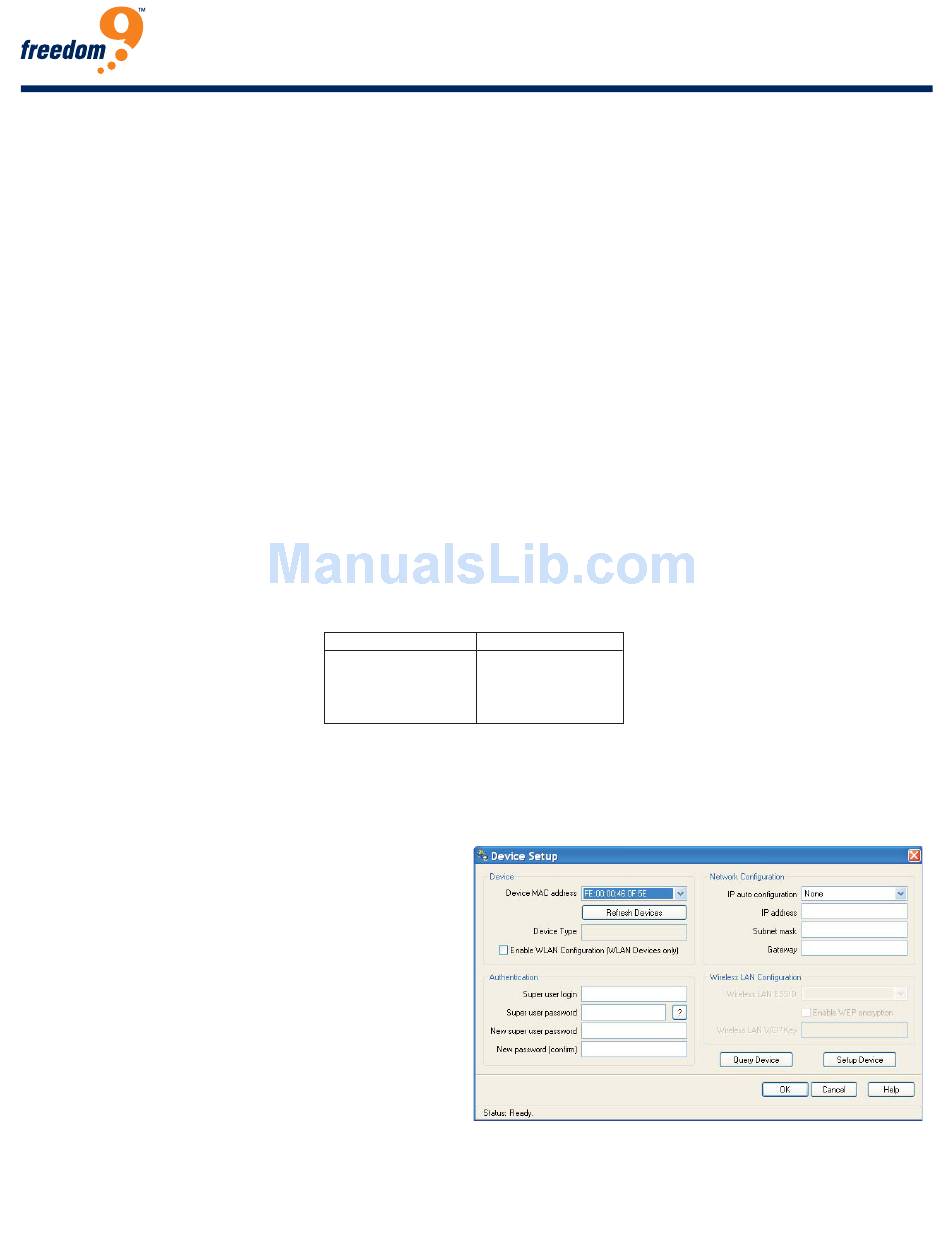

Figure 1-2 KVM setup program
Continued on other side...
