Freedom9 freeConnect 500 Specifications

freeConnect
5-port 10/100Mbps Desktop
Switch
freeConnect 500 > 5-port 10/100Mbps desktop
switch
Networking switch: Simple - reliable

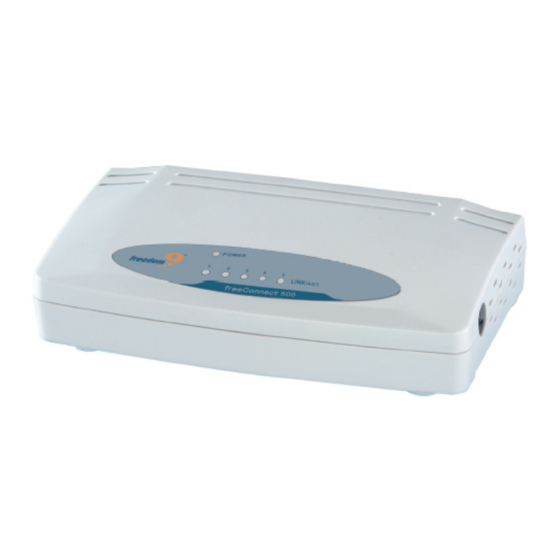

The freeConnect 500 provides a quick and easy way to build or
extend your network with its five 10/100Mbps ports. Its
compact size allows it to be placed almost anywhere, keeping
your work area free of clutter.
With automatic MDI/MDIX detection, you will no longer have
to worry about when to use a straight-through cable and
when to use a crossover cable, the freeConnect 500 will
compensate automatically. This feature, combined with
automatic speed and duplex detection, makes the device truly
"plug and play". The LEDs on the front panel provide detailed
diagnostics of the unit's activity and status, allowing you to
monitor the freeConnect 500 with a quick glance.
Specifications
Standards
Ports
Transfer Rate
Power
Network Cables
Filtering Address Table
Switching Fabric
Dimensions (w x h x d)
Temperature
Humidity
EMI
Model Numbers
Model Name
Description
Part Number
Revision 2.0 Specifications are subject to change without notice. Copyright 2007 Freedom9 Inc.
500
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3x full-duplex flow control
5 x RJ-45 Auto-MDIX ports
Ethernet 10Mbps/20Mbps Full-duplex
Fast Ethernet 100Mbps/200Mbps full-duplex
7.5V 1A
Ethernet - Cat 3, 4, 5, 6 UTP
Fast Ethernet - Cat 5, 6 UTP
1K entries
Wire-speed non-blocking
4.9" x 1.2" x 2.7" (125 x 30 x 69 mm)
Operating 32°F - 104°F (0°C - 40°C)
Storage 14°F - 158°F (-10°C - 70°C)
Operating 10% - 90% RH
Storage 5% - 90% RH
FCC Class B/CE Mark B/VOCI-B
freeConnect 500
5-port 10/100Mbps Desktop Switch
S000500000
Features:
• 5 10/100Mbps Auto-Negotiation Ethernet
ports
• Supports Auto-MDI/MDIX for each port
• Supports Full/Half-Duplex transfer mode
for 10 and 100Mbps
• Full wire speed reception and transmission
• Supports 1K MAC addresses
• Extensive front panel diagnostic LEDs
• IEEE 802.3x Flow Control for Full-Duplex
• Back pressure Flow Control for
Half-Duplex
www.freedom9.com
1-888-998-9189
